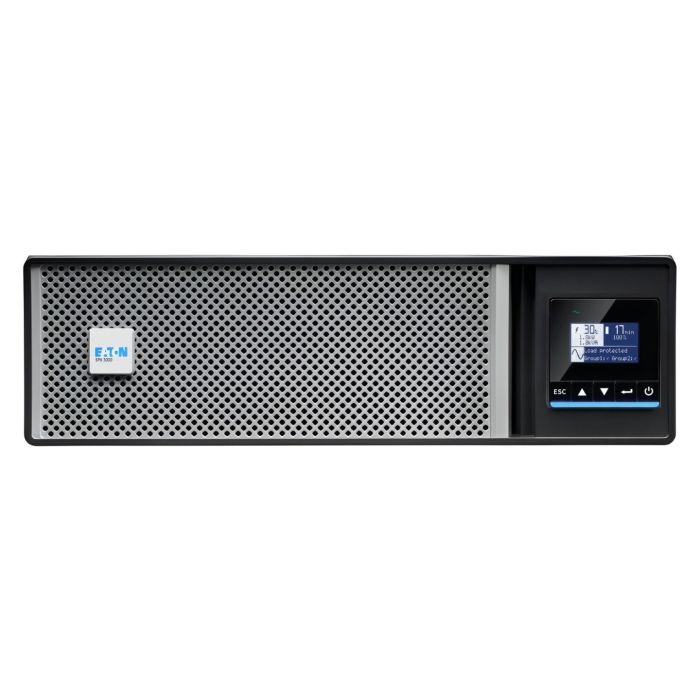

Eaton 5PX G2 UPS 3000VA 3kW 30A, Output:(6)5-20R & (1)L5-30R, 5PX3000RT3UNG2 – Refurbished
Eaton 5PX G2 Line-Interactive UPS 3000VA 3000W 120V RM 3U
Model: 5PX3000RT3UNG2
Input: NEMA L5-30P (30A, 120V)
Output: (1) NEMA L5-30R, (6) NEMA 5-20R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$2,799.99
In stock
Manufacturer: Eaton
Model: Eaton 5PX 3000VA 3000W, RM 3U, 120V, 30A
Condition: New batteries, Refurbished UPS
Part Number: 5PX3000RT3UNG2
Maximum output: 3000W / 3000VA
Typical backup time at half load: 12 minutes (1500 Watts)
Typical backup time at full load: 5 minutes (3000 Watts)
Warranty: 1 Year Replacement Warranty Included
Eaton 5PX - 3000VA 3000W RM 3U 120V 5PX3000RT3UNG2 - User Manual
5PX3000RT3UNG2 - Eaton UPS 3000VA Specifications:
General:
|
Topology |
Line interactive |
|
Configuration |
Rackmount |
|
Catalog Number |
5PX3000RT3UNG2 |
|
Color |
Black |
|
Rating (VA/Watts) |
3000VA / 3000W |
|
Diagnostics |
Full system self-test at power up |
|
UPS Bypass |
EHBPL3000R-PDU1U (optional) |
|
Dimensions (H x W x D, inches) |
5.1 x 17.4 x 22.0 |
|
Dimensions (H x W x D, mm) |
131 x 441 x 559 |
|
Weight (kg) |
40 |
|
Weight (lbs) |
88 |
Electrical Input:
|
Connection |
|
||
|
Input Cord |
10 ft. |
||
|
Input Voltage Range |
89–151 Vac (adjustable to 70–153 Vac) |
||
|
Nominal Voltage |
120 Vac (adjustable to100/120/127 Vac) |
||
|
Frequency |
50/60 Hz (auto-sensing) |
||
|
Frequency Range |
47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
||
|
Input Power Factor |
0.9 |
Electrical Output:
|
Output Receptacles |
|
||||
|
On Utility Voltage Regulation |
102–132 Vac |
||||
|
On Battery Voltage Regulation |
-10%, +6% of nominal |
||||
|
Output Frequency |
50/60 Hz ±0.1 % (autosensing) |
||||
|
Transfer Time |
1–4 ms typical |
||||
|
Load Segments |
Group 1: (2) 5-20R outlets |
Battery:
|
Optional Extended Battery Module |
5PXEBM72RT3UAG2 (compatible con 5PX3000RT3UNG2) |
|
Battery Management |
ABM® technology, temperature-compensated charging, automatic battery test, deep discharge protection, auto recognition of EBMs |
|
Battery Type |
12V/9 Ah; sealed, lead-acid; maintenance free |
|
Battery Replacement |
Hot-swappable internal batteries and EBMs |
|
Start On Battery |
Allows start of UPS without utility power |
Communications:
|
User Interface |
LCD graphical display |
|
LEDs |
Load protected, battery and fault |
|
Communication Ports |
1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
|
Communications Card Slots |
1 slot for Connect UPS Network-M2 or MS network management card - Optional |
|
Power Management Software |
Eaton Intelligent Power Software Suite CD (included) |
