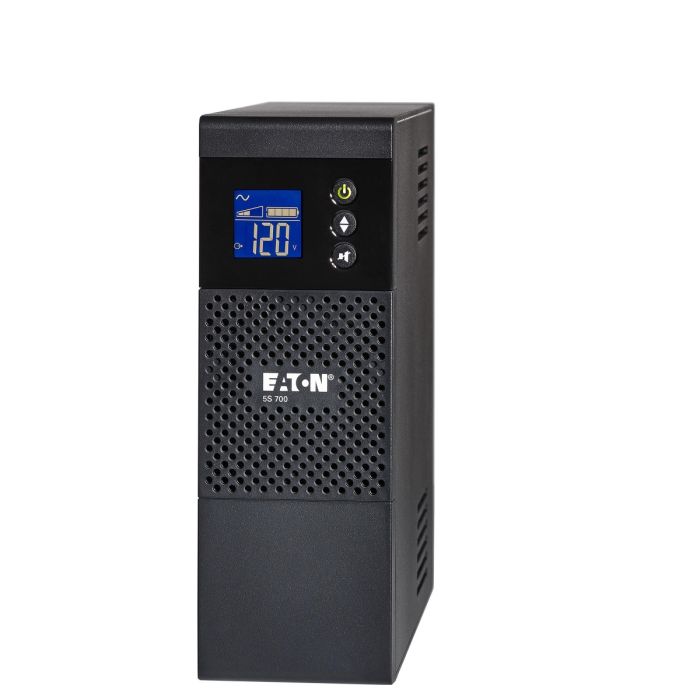

Main image Click to view image in fullscreen Eaton 5S UPS 700VA 420W Tower LCD 120V 15A Output: (8)5-15R, 5S700LCD - Refurbished

Eaton 5S UPS 700VA 420W Tower LCD 120V 15A Output: (8)5-15R, 5S700LCD - Refurbished

Eaton 5S UPS 700VA 420W Tower LCD 120V
Model: 5S700LCD
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Line Interactive, Pure Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $48.00

3 Year + $84.00

In stock

Quantity

Manufacturer: Eaton
Model: Eaton 5S UPS 700VA 420W, Tower, LCD, 120V, 15A
Condition: New Batteries, refurbished UPS
Part Number: 5S700LCD
Maximum output: 420W / 700VA
Typical backup time at half load: 14 minutes (300 Watts)
Typical backup time at full load: 3 minutes (600 Watts)
Warranty: 1 year full replacement warranty

Eaton 5S UPS 700VA 420W Tower LCD 120V 5S700LCD - User Manual

5S700LCD - Eaton UPS 700VA Specifications:

General:

Product Name	Eaton 5S UPS
Catalog Number	5S700LCD
Product Length/Depth	10.2 in
Product Height	9.8 in
Product Width	3.4 in
Product Weight	13.1 lb

Electrical Input:

Input Connection

NEMA 5-15P

Input Nominal Voltage

120V

Input Cord Length

6 ft.

Input Voltage Range

93-138 Vac

Input Frequency Range

46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system)

Electrical Output:

Output Receptacles

(8) NEMA 5-15R

VA Rating

700VA

Wattage

525W

Output Nominal Voltage

100/120/127V

Topology

Line-interactive

Battery:

Battery Type	Sealed, lead-acid
Battery Management	ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)

Communications:

Communication	USB HID port as standard, 6-ft USB cable included
Software Compatibility	Eaton UPS Companion software

Environmental

Noise level	<25 dB at 1 meter
Temperature range	0° to 35°C (32° to 95°F)
Relative humidity	0-93% non-condensing
