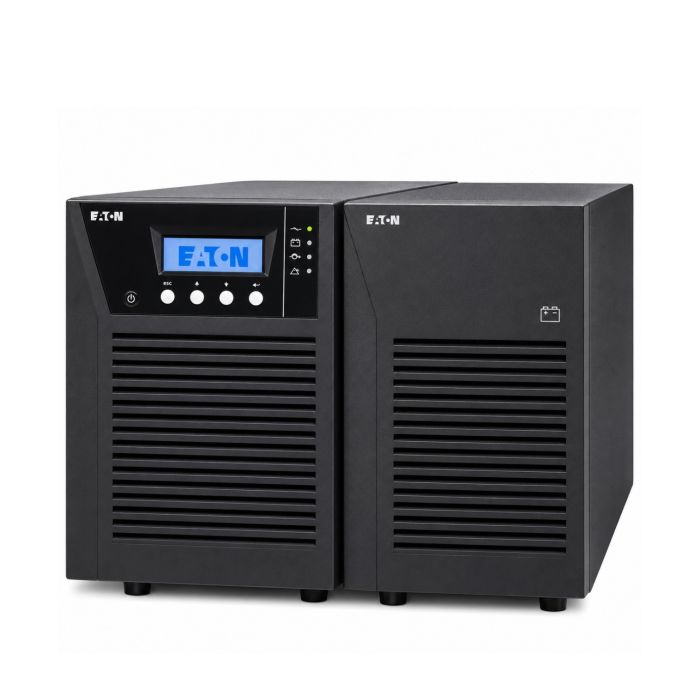

Eaton 9130 UPS 1000VA 900W 120V PW9130L1000T-XL + EBM, Online Double-Conversion - Refurbished
Eaton 9130 1500VA 1350W Tower 120V + (1) PW9130N1000T-EBM
Model: PW9130L1000T-XL + (1) PW9130N1000T-EBM
Input: NEMA 5-15P (120V / 15A)
Output Connections: (6) NEMA 5-15R
Online Double-Conversion UPS
Waveform Type: Pure Sine Wave Output
Automatic Internal Bypass Protection
New Batteries Installed, Refurbished UPS
1 Year Full Replacement Warranty Included
$999.99
In stock
Manufacturer: Eaton
Model: Eaton 9130 1000VA 900W, 15A, 120V, Tower with Extended Battery Module
Condition: New batteries, refurbished UPS & EBM
Part Number: PW9130L1000T-XL + PW9130N1000T-EBM
Maximum output:Â 900W / 1000VA
Typical backup time at half load: 50 minutes (450Watts)
Typical backup time at full load: 18 minutes (900 Watts)
Warranty: 1 year full replacement warranty
Description: The Eaton 9130 PW9130L1000T-XL with one PW9130N1000T-EBM extended battery module provides true online double-conversion power protection with significantly increased runtime for critical servers, networking equipment, VoIP systems, and business applications. Delivering 1000VA / 900W of pure sine wave output power, this solution features Eaton ABM® advanced battery management technology, hot-swappable batteries, automatic bypass protection, LCD graphical monitoring, and support for remote management. The included extended battery module substantially increases runtime, making it ideal for environments requiring longer backup duration and maximum uptime.
Â
Eaton PW9130L1000T-XL 1000VA 900W, 15A, 120V, Tower + EBM - User Manual
Â
Â
PW9130L1000T-XL +Â PW9130N1000T-EBM - Eaton UPS 1000VA Specifications:
| Key Features | Â |
| UPS Topology | Online Double-Conversion |
| Form Factor | Tower |
| Rated Power Capacity | 1000VA / 900W |
| Output Power Factor | 0.9 |
| Waveform Type | Pure Sine Wave |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Output Connections | (6) NEMA 5-15R |
| Input Cord Length | 6 ft |
| Efficiency | Up to 86% |
| Automatic Bypass | Yes |
| Hot-Swappable Batteries | Yes |
| Extended Runtime Support | Included |
| Included External Battery Module | PW9130N1000T-EBM |
| Supports Up To | 4 External Battery Modules |
| User Interface | Graphical LCD Display |
| Application | Servers, switches, storage, VoIP, and networking equipment |
| Â | Â |
| Output | Â |
| Nominal Output Voltage | 120V (100/110/120/127V selectable) |
| Output Receptacles | (6) NEMA 5-15R |
| Maximum Output Power | 900W |
| Maximum Output Capacity | 1000VA |
| Output Frequency | 50/60 Hz |
| Output Voltage Regulation | ±2% steady-state |
| Waveform Output | Pure Sine Wave |
| Output Power Factor | 0.9 |
| UPS Topology | Online Double-Conversion |
| Transfer Time | 0 ms (True Online Operation) |
| Automatic Bypass | Thermal overload protection |
| Voltage Conditioning | Continuous double-conversion power conditioning |
| Frequency Regulation | Independent of utility frequency variations |
| Output Stability | Regulated voltage and frequency output |
| Surge Protection | Integrated |
| Load Protection | Protection against sags, surges, spikes, and electrical noise |
| Power Quality | Enterprise-grade clean sine wave output |
| Efficiency at Full Load | Up to 86% |
| Cold Start Capability | Supports startup from battery power |
| Critical Equipment Support | Ideal for servers, networking, VoIP, and storage systems |
| Runtime with Included EBM | Extended runtime for longer backup duration |
| Battery Backup Performance | Enhanced runtime with included PW9130N1000T-EBM |
| Â | Â |
| Input | Â |
| Input Connection | NEMA 5-15P |
| Input Voltage | 120V |
| Input Frequency Range | 45–65 Hz |
| Input Power Factor | 0.9 |
| Input Cord Length | 6 ft |
| Cold Start Capability | Allows UPS operation without utility power |
| Â | Â |
| Battery & Runtime | Â |
| Battery Type | Sealed Lead-Acid |
| Internal Battery Configuration | (3) 12V / 9Ah Batteries |
| Included External Battery Module | (1) PW9130N1000T-EBM |
| Total Battery Strings | UPS + 1 EBM |
| Battery Replacement | Hot-Swappable |
| Battery Management | ABM® Technology |
| Battery Service Life Extension | Up to 50% Longer Battery Life |
| Advanced Battery Warning | Yes |
| Runtime Expansion | Included Extended Runtime Configuration |
| Typical Runtime @ 450W Load | Approximately 50 Minutes |
| Typical Runtime @ 900W Load | Approximately 18 Minutes |
| Additional EBM Support | Supports up to 3 additional EBMs |
| Â | Â |
| Communications & Management | Â |
| User Interface | Graphical LCD Display with 4-Button Programmable Menu |
| LCD Status Information | Input/Output Voltage, Load Level, Battery Status, Runtime, Alarms, and Event Information |
| Communication Ports | USB, RS232 Serial, Remote Power Off (RPO), Output Relay Contacts |
| Expansion Slot | BestDock Communication Slot |
| Network Management | Supported with Optional Network Management Card |
| Remote Monitoring | Supported |
| Remote Shutdown | Supported |
| Remote Reboot Capability | Supported via Management Software |
| Power Management Software | Eaton Intelligent Power Manager (IPM) |
| Software Compatibility | Eaton Intelligent Power Suite |
| Event Logging | Historical Event and Alarm Logging |
| Battery Monitoring | Advanced Battery Health Monitoring |
| ABM® Battery Technology | 3-Stage Charging Technology |
| Predictive Battery Replacement | Yes |
| Alarm Notifications | Audible and Visual Alarms |
| User Configuration | Local LCD-Based Configuration |
| UPS Diagnostics | Automatic Self-Test and Battery Test |
| Firmware Configuration | User Configurable Parameters |
| Relay Contacts | Status and Alarm Relay Contacts |
| Remote Power Off (RPO) | Supported |
| Shutdown Management | Graceful Server and Network Shutdown |
| Power Event Recording | Supported |
| Configuration Management | Local and Software-Based Configuration |
| Security Access | Administrator-Level Configuration Controls |
| Load Monitoring | Real-Time Load Monitoring |
| Input/Output Monitoring | Real-Time Voltage and Frequency Monitoring |
| Battery Runtime Monitoring | Real-Time Runtime Estimation |
| System Status Indicators | LCD and Audible Alarm System |
| Multi-Server Support | Supported through Eaton IPM Software |
| Virtualization Support | VMware and Hyper-V Integration Supported |
| Environmental Monitoring | Supported with Optional Communication Accessories |
| Â | Â |
| Physical | Â |
| UPS Height | 9.1 inches |
| UPS Width | 6.3 inches |
| UPS Depth | 15.1 inches |
| UPS Weight | 30.9 lbs |
| Included EBM | PW9130N1000T-EBM |
| Combined Configuration | UPS + External Battery Module |
| Color | Black |
| Thermal Protection | Automatic transfer to bypass during overheating |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 5–90% non-condensing |
| Operating Altitude | Up to 3000m without derating |
| Noise Level | <50 dB at 1 meter |
| BTU Rating | 500 BTU/hr Online, 674 BTU/hr On Battery |
| Certifications | UL Listed, cUL Listed, cULus Listed, NOM, VCCI |
| Compliance | FCC Class B, EN55022 Class B |
