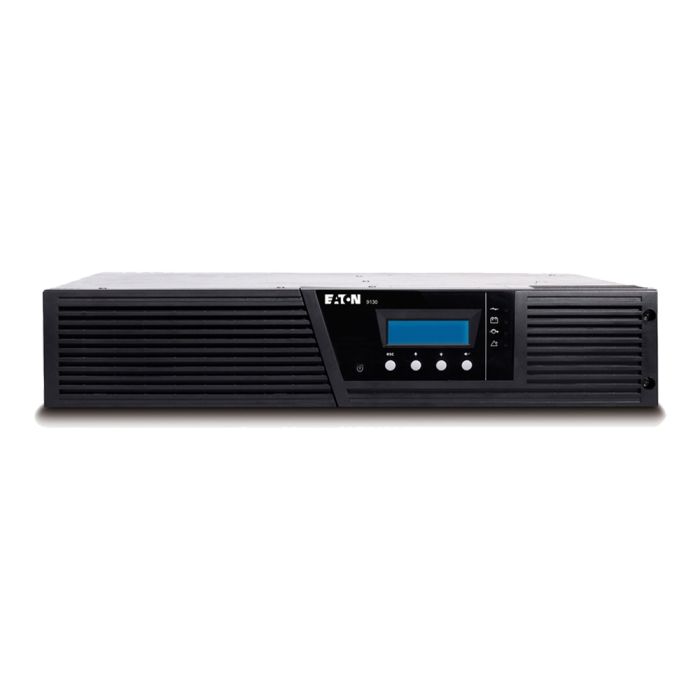

Eaton 9130 1500VA 1350W Double Conversion RM 2U 120V 15A PW9130L1500R-XL2U - Refurbished

General

Configuration

Rackmount

Catalog Number

PW9130L1500R-XL2U

Color

Black

Rating (VA/Watts)

1500/1350

Diagnostics

Full system self-test

UPS Bypass

Automatic bypass

Dimensions (H x W x D, inches)

3.4 x 17.2 x 16.9

Weight (lbs)

43

Warranty

1 Year Replacement Warranty

Rail Kit:

Not included

Remote Emergency Power off (REPO)

Emergency shutdown control through the REPO port

Efficiency

>95% in high-efficiency mode; >86% in online mode

Electrical Input

Connection

(1) NEMA 5-15P

Input Cord

6 ft.

Input Voltage Range

80-144 Vac

Nominal Voltage

120V default (100/110/120/127V)

Frequency

50/60 Hz

Frequency Range

45–65 Hz

Nominal Current

12.5 A

Breaker Ratings

15A

Electrical Output

Nominal Voltage

120V, 208V, 220–240V

Output Receptacles

(6) NEMA 5-15R

On Utility Voltage Regulation

±3% of nominal

On Battery Voltage Regulation

±3% of nominal

Power Factor

0.9

Frequency Regulation

±3% Hz online

Load Crest Factor

3 to 1

Battery

Optional Extended Battery Module

PW9130N1500R-EBM2U

Maximum number of extended battery modules (EBM)

4

Battery Management

ABM technology

Battery Type

48 Vdc; (4) 12V, 9 Ah. Hot-swappable internal and external batteries.

Battery Replacement

EBP-1606

Start On Battery

Allows start of UPS without utility input

Recharge Time

Internal batteries: 3 hours. 1 EBM: 9 hours; 2 EBM: 15 hours; 3 EBM: 21 hours; 4 EBM: 27 hours

Communications

User Interface

Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish

LEDs

Four status-indicating LEDs

Communication Ports

(1) USB, (1) RS-232 serial, Relay output (common alarm standard)

Communication Slot

Optional communication slots (BD Slot)

Power Management Software

Bundled software suite CD

Environmental & Standards

RoHS Compliance

Yes

Heat Dissipation (BTU)

Line: 750, Bat: 1011

Audible Noise

<50 dB

Operating Temperature

0°C to 40°C(32°F to 104°F) in online mode, with linear derating for altitude. NOTE:Thermal protection switches load to bypass in case of overheating

Safety markings

UL, cUL, VCCI

EMC Markings

FCC Class B, EN55022 Class B

Storage Temperature

-20°C (-4°F) to +40°C (104°F) with batteries and -25°C (-13°F) to +55°C (131 °F) without batteries

Relative Humidity

5–90% non-condensing
