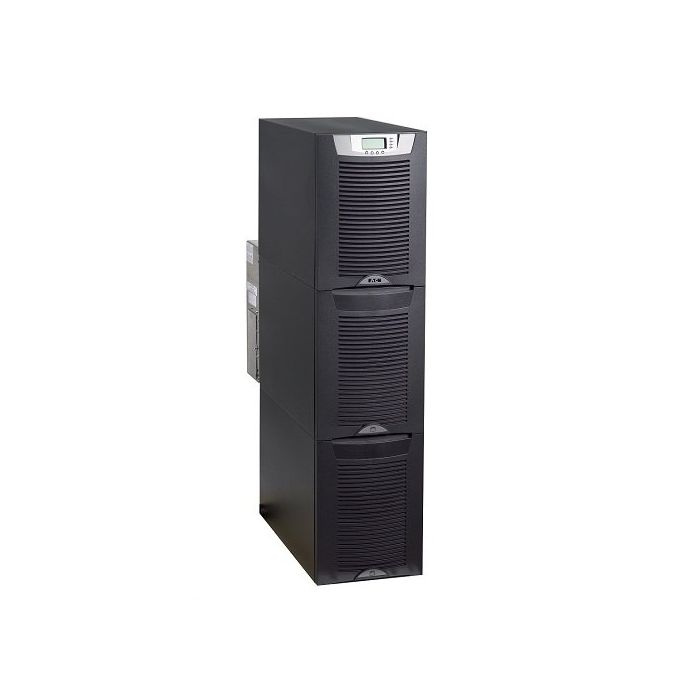

Main image Click to view image in fullscreen K41512000000000 Eaton 9155 15kVA UPS

Eaton 9155 15kVA UPS K41512000000000

Eaton 9155 15kVA UPS
Model: K41512000000000
Online Double Conversion 120/208-240v
Refurbished with New Batteries
1 Year Extended Warranty Included

The Eaton 9155 is a Double-Conversion Online, Split-Phase UPS and requires a hardwired input connection of 200-240VAC with Neutral or with Optional Input Transformer Module. The optional input transformer module is used to provide a neutral connection for the UPS input when none exists in present building wiring. Output Voltage is 100/200, 110/220, 120/240 with 180° phase displacement or 120/208, 127/220 with 120° phase displacement.

Hardwired input 120/208-240V single phase, neutral required, hardwired output
64 Battery (3 High) tower configuration
Standard backup runtime 13.3 minutes at full load
Optional rear mounted bypass switch and optional output receptacles

Out of stock

Manufacturer: Eaton Powerware
Model: K41512000000000 Eaton 9155 15KVA UPS
Condition: Refurbished with New Batteries
Part Number: K41512000000000
Warranty: 1 Year Extended Warranty, additional warranty available

The K41512000000000 comes refurbished with new batteries. The Eaton UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

K41512000000000 Specifications:

General
Topology	Double-conversion
Catalog Number	K41512000000000
Part Number	K41512000000000
Rating (VA/Watts)	15000/13500
Efficiency	92% with nominal linear load; 91% with nominal computer load.
Dimensions (H x W x D, inches)	47.8 x 12 x 33.7
Weight (lbs)	590
Contents (Ships with the following items)	1 ready-to-go UPS Software Suite CD User Guide

Electrical Input
Connection	Hardwired - see manual for terminal block layout

Electrical Output
Output Receptacles	(1) PDM
