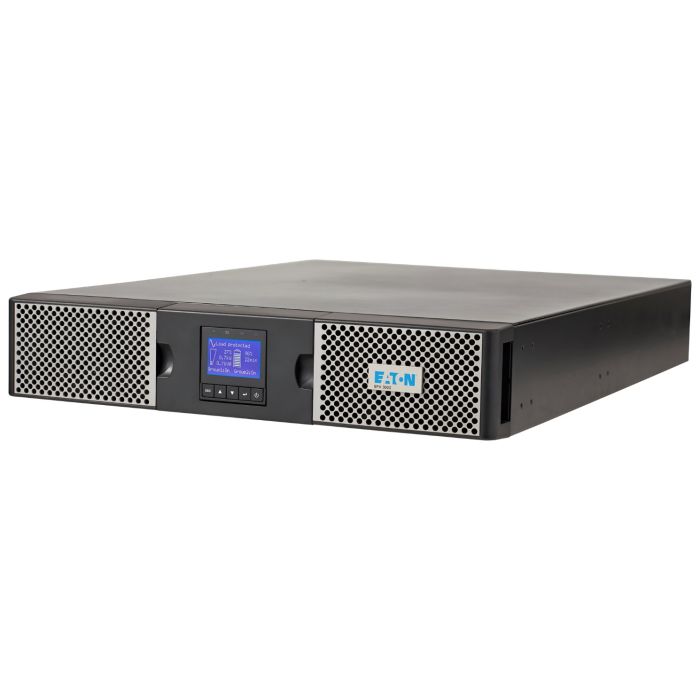

Eaton 9PX3000RT 3000VA 2700W Double Conversion Online UPS 120V 30A RM 2U - Refurbished
Eaton 9PX UPS 3000VA 2700W RM 2U 120V 30AÂ
Model: 9PX3000RT
Input: NEMA L5-30P (30A 120V)
Output: (6) NEMA 5-20R, (1) NEMA L5-30R
Double Conversion Online UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
$1,599.99
Back Order
Manufacturer: Eaton
Model:Â Eaton 9PX 3000VA 2700W, RM, 2U, 120V, 30A
Condition: New batteries, refurbished UPS
Part Number: 9PX3000RT
Maximum output: 2700WÂ /Â 3000VA
Typical backup time at half load: 14 minutes (1350 Watts)
Typical backup time at full load: 5 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Eaton 9PX UPS 3000VA 2700W RM 2U 120V 9PX3000RT - User's Manual
9PX3000RT - Eaton UPS 3000VA Specifications:
General:
|
Product Name |
Eaton 9PX UPS |
|
Catalog Number |
9PX3000RT |
|
Product Length |
23.8 in. |
|
Product Height |
3.4 in. |
|
Product Width |
17.3 in. |
|
Product Weight |
63.1 lbs. |
|
Compliances |
IEC 62040-2 Cat C1 |
|
Certifications |
cULus Listed |
|
Catalog Notes |
9PX replaces Evolution:_81715 and 81716, Add up to 4 EBMs, Allows start of UPS without utility power. |
Electrical Input:
|
Input Connection |
|
||
|
Input Cord Length |
8ft. |
||
|
Input Nominal Voltage |
120V default (100/110/120/125V) |
||
|
Input Frequency Range |
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
||
|
Input Power Factor |
>0.99 typical |
Electrical Output:
|
Output Receptacles |
|
||||
|
Output Power Factor |
0.9 |
||||
|
Output Waveform |
True Sine Wave |
||||
|
Voltage |
102V |
||||
|
VA Rating |
3000VA |
||||
|
Wattage |
2700W |
||||
|
Output Nominal Voltage |
120V default (100/110/120/125V) |
||||
|
Topology |
Online/Double-conversion |
Battery:
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
|
Battery Replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
|
Battery Type |
Sealed, lead-acid |
|
Extended Battery Capability |
Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT |
Communications:
|
Communication |
MiniSlot + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
|
Expansion Slots |
(1) Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately. |
|
Software Compatibility |
Intelligent Power Software Suite |
|
User Interface |
Graphical display, 5-button programmable menu |
