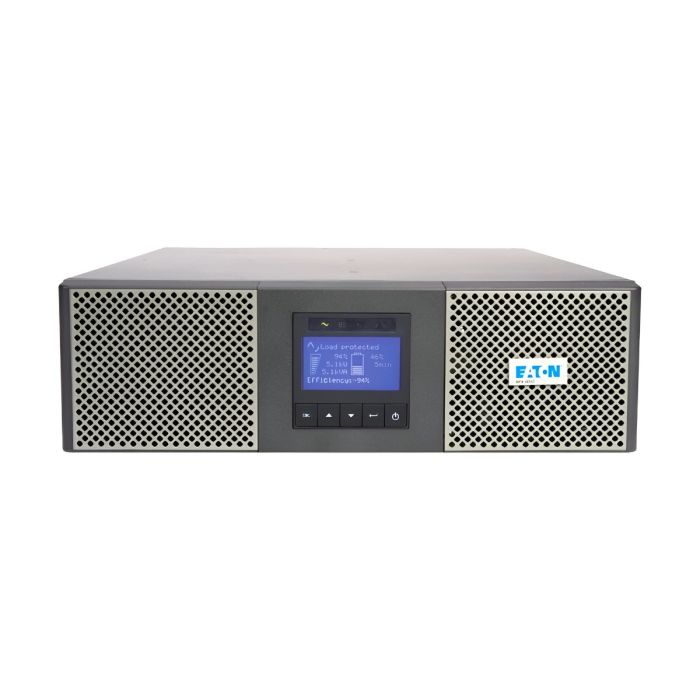

Eaton 9PX3K3U UPS 3000VA 3kW RM 3U 208V/240V 30A Output:(2)L6-30R & (2)L6-20R - Refurbished
Eaton 9PX 3000VA 3000W RM 3U 208V
Model:Â 9PX3K3U
Input: NEMA L6-30P (208V - 30A)
Output: (2) NEMA L6-30R, (2) NEMA L6-20R, Hardwired
Online, Double Conversion UPS
New batteries, Refurbished UPS
1 Year Warranty Included
$1,599.99
Back Order
Manufacturer: Eaton
Model: Eaton 9PX 3000VA 3000W, RM 3U, 208V, 30A, NetworkCard-MS Optional
Condition: New batteries, refurbished UPS
Part Number: 9PX3K3U
Maximum output: 3000WÂ /Â 3000VA
Typical backup time at half load:Â 27 minutes (315 Watts)
Typical backup time at full load: 11Â minutes (630 Watts)
Warranty: 1 year full replacement warranty
Eaton 9PX 3000VA 3000W RM 3U 208V 9PX3K3U User's Manual
9PX3K3U - Eaton UPS 3000VA Specifications:
Overview:
|
UPS Type |
On-Line |
Input:
|
Input Phase |
Single-Phase |
||
|
Rated Input Current (Maximum Load) |
5.8A |
||
|
Nominal Input Voltage(s) Supported |
208V |
||
|
UPS Input Connection Type |
|
||
|
UPS Input Cord Length (ft.) |
8 |
||
|
UPS Input Cord Length (m) |
2.4 |
Output:
|
Output Capacity (VA) |
700 |
||
|
Output Capacity (kVA) |
0.7 |
||
|
Output Capacity (Watts) |
630 |
||
|
Output Capacity (kW) |
0.63 |
||
|
Power Factor |
0.9 |
||
|
Crest Factor |
3:1 |
||
|
Nominal Voltage Details |
208V |
||
|
Frequency Compatibility |
50 / 60 Hz |
||
|
Output AC Waveform (Battery Mode) |
Pure Sine Wave |
||
|
Nominal Output Voltage(s) Supported |
208V |
||
|
Output Receptacles |
|
||
|
Individually Controllable Load Banks |
Yes |
Battery:
|
Battery Type |
Valve Regulated Lead Acid (VRLA) |
|
Runtime Full Load (min.) |
11 min. |
|
Runtime Half Load (min.) |
27 min. |
|
Expandable Runtime |
Yes |
|
Expandable Runtime Description |
Add up to 4 extended battery modules (EBM). Part number 9PXEBM36RT |
|
DC System Voltage (VDC) |
36 |
|
Battery Access |
Battery Access Door |
|
Internal UPS Replacement Battery |
744-A3960 |
|
Battery Replacement Description |
Hot-swappable, user replaceable batteries. UPS requires 1 Replacement Battery Cartridge. |
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery |
User Interface, Alerts & Controls:
|
Front Panel LCD Display |
LCD Graphical Display |
|
Switches |
RPO / ROO |
|
Alarm Cancel Operation |
Press ESC to silence the alarm |
|
Audible Alarm |
Audible alarm indicates utility failure, low-battery, overload, other UPS/Battery fault or remote shutdown conditions |
|
LED Indicators |
4 status-indicating LEDs |
Surge & Noise Suppression:
|
UPS AC Suppression Joule Rating |
190 |
|
UPS AC Suppression Response Time |
0ms |
|
EMI / RFI AC Noise Suppression |
Yes |
Physical:
|
Primary Form Factor |
Rackmount |
|
Rack Height |
3U |
|
Cooling Method |
Fan |
|
Installation Form Factors Supported: |
4 post rack, 19", 2 post rack, tower |
|
Length: |
17.7" |
|
Width: |
17.3" |
|
Height: |
3.4" |
|
Unit Weight (lbs.) |
36.400 |
|
Unit Weight (kg) |
16.51 |
Environmental:
|
Operating Temperature Range |
32° to 104°F (0° to 40°C) |
|
Relative Humidity |
0-96% non-condensing |
|
AC Mode Efficiency Rating (100% Load)Â |
89.9 |
|
AC Economy Mode Efficiency Rating |
95.3 |
|
Online Mode Heat Dissipation (BTU/Hr) @ Full Load |
241 |
|
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load |
440 |
Communications:
|
Optional Network Management Cards:Â |
NETWORK-M2; INDGWM2 ; Â RELAY-MS: Not inlcluded |
|
Communications Interface |
RS-232; USB |
Applications:
|
UPS Applications |
Mission Critical Applications |
Standards & Compliance:
|
Product Certifications |
cUL Listed; NOM (Mexico); EN 62040-2; EN 55022 |
|
Product Compliance |
FCC Part 15 Class B (USA); VCCI (Japan); RoHS |
