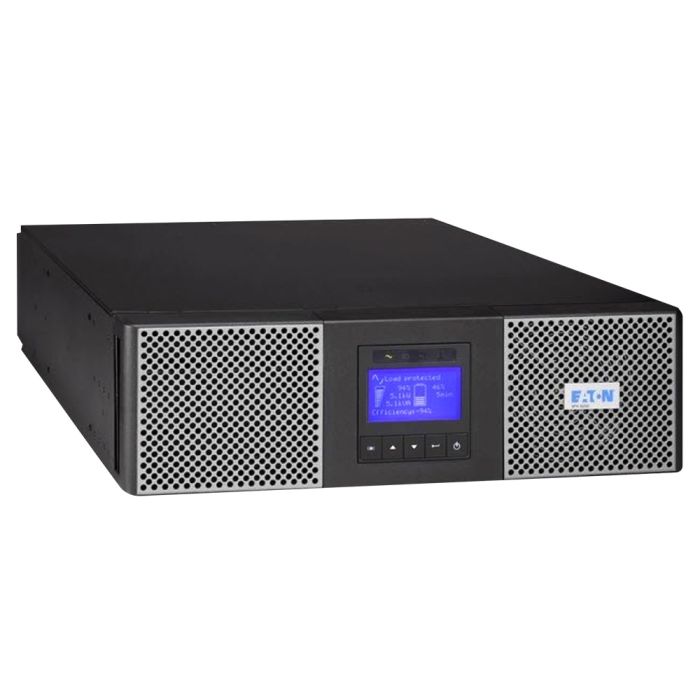

Eaton 9PX 5000VA 4500W RM 3U 208V-240V 9PX5Ki - Refurbished
Eaton 9PX 5000VA 4500W RM 3U 200-240V 9PX5Ki
Model: 9PX5Ki
Input: Hardwired input
Output: (8)C13 - 10A, (2)C19 - 16A
Double Conversion UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,999.99
Back Order
Manufacturer: Eaton
Model: Eaton 9PX 5KI 5000VA 4500W RM 3U, 200-240V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: 9PX5Ki
Maximum output: 4500W / 5000VA
Typical backup time at half load: 11 minutes (2250 Watts)
Typical backup time at full load: 3 minutes (4500 Watts)
Warranty: 1 year full replacement warranty
Eaton 9PX 5kva - 5000VA 4500W RM 3U 208V 9PX5Ki Manual
9PX5Ki - Eaton UPS 5000VA Specifications:
General:
|
Configuration |
Rackmount |
|
Catalog Number |
9PX5Ki |
|
Color |
Black |
|
Rating (VA/Watts) |
5000VA / 4500W |
|
Diagnostics |
Full system self-test |
|
UPS Bypass |
Automatic bypass |
|
Dimensions (L x W x H, inches) |
23.5" x 17.3" x 5.1" |
|
Weight (lbs) |
106 lbs |
|
Warranty |
1 Year Replacement Warranty |
|
Rail Kit |
Optional |
|
Remote Emergency Power off (REPO) |
Emergency shutdown control through the REPO port |
|
Efficiency |
>95% in high-efficiency mode; |
Electrical Input:
|
Connection |
Hardwired |
|
Input Cord |
6 ft. |
|
Input Voltage Range |
176V-276V without derating |
|
Nominal Voltage |
200V/208V/220V/230V/240V |
|
Frequency |
50/60 Hz |
|
Frequency Range |
40-70Hz |
Electrical Output:
|
Nominal Voltage |
200/208/220/230/240V +/- 1% |
|
Output Receptacles |
(8)C13 - 10A |
|
On Utility Voltage Regulation |
±3% of nominal |
|
On Battery Voltage Regulation |
±3% of nominal |
|
Power Factor |
0.9 |
|
Frequency Regulation |
±3% Hz online |
|
Load Crest Factor |
3 to 1 |
Battery:
|
Optional Extended Battery Module |
9PXEBM180RT |
|
Maximum number of extended battery modules (EBM) |
4 Battery Management |
|
Start On Battery |
Allows start of UPS without utility input |
Communications:
|
User Interface |
Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish |
|
LEDs |
Four status-indicating LEDs |
|
Communication Ports |
Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay communication slot |
|
Communication Slot |
(1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included |
|
User Interface |
Graphical display, 5-button programmable menu |
