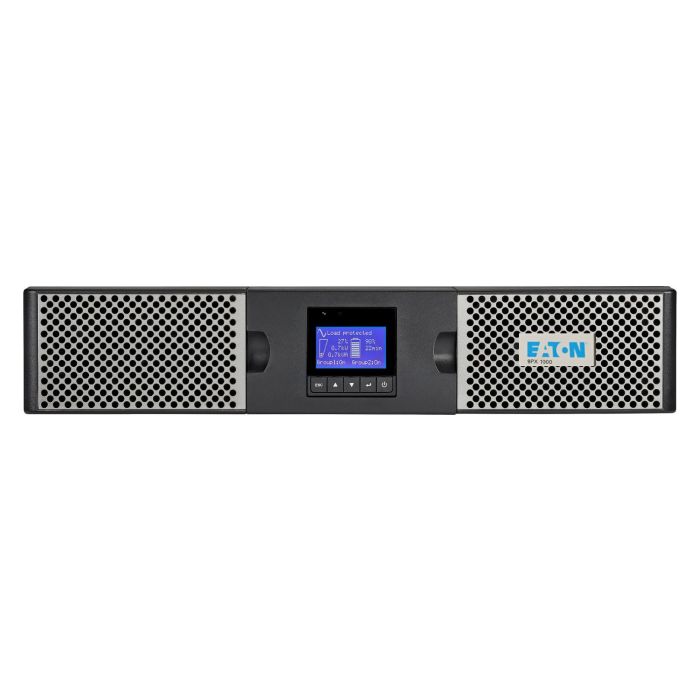

Eaton 9PX UPS 1000VA 900W 208V 10A C14 input, Output: (8)C13, 9PX1000GRT - Refurbished
Eaton 9PX UPS 1000VA 900W RM 2U 208VÂ
Model: 9PX1000GRT
Input: Â IEC C14 (208V - 10A)
Output: (8) IEC C13 - 208V default (200/208/220/230/240V)
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$599.99
Back Order
Manufacturer: Eaton
Model: Eaton 9PX UPSÂ 1000VA 900W, RM 2U, LCD, 208V, 10A
Condition: New batteries, refurbished UPS
Part Number: 9PX1000GRT
Maximum output: Â 900W / 1000VA
Typical backup time at half load: 11 minutes (450 Watts)
Typical backup time at full load: 5 minutes (900 Watts)
Warranty: 1 Year full replacement warranty
Eaton 9PX UPSÂ 1000VA 900W, RM 2U, LCD, 208V, 10A - User Manual
9PX1000GRT - Eaton UPS 1000VA Specifications:
General:
|
Product Name |
Eaton 9PX UPS |
|
Catalog Number |
9PX1000GRT |
|
Product Length/Depth |
17.7 in. |
|
Product Height |
3.4 in. |
|
Product Width |
17.3 in. |
|
Product Weight |
38.6 lbs. |
|
Compliances |
IEC 62040-2 Cat C1, CISPR22 Class B, FCC part 15 Class B, CE Marked |
|
Certifications |
cULus Listed |
Electrical Input:
|
Input Connection |
IEC C14 |
|
Input Nominal Voltage |
208V default (200/208/220/230/240V) |
|
Input Cord Length |
8 ft. |
|
Input Frequency Range |
60 Hz: 50–70 Hz 50 Hz: 40–60 Hz |
|
INPUT POWER FACTOR |
>0.99 typical |
Electrical Output:
|
Output Receptacles |
|
||
|
Output Power Factor |
0.9 |
||
|
Output Waveform |
True sine wave |
||
|
VA Rating |
1000VA |
||
|
Wattage |
900W |
||
|
Output Nominal Voltage |
208V default (200/208/220/230/240V) |
||
|
Topology |
Online/Double-conversion |
Battery:
|
Battery Type |
Sealed, lead-acid |
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
|
Battery Replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
|
Extended Battery Capability |
Add up to 4 extended battery modules (EBM). Part number 9PXEBM48RT-Â Optional |
Communications:
|
Communication |
RS-232 (RJ45), USB (HID) |
|
Expansion Slots |
 (1) Mini-Slot (MS) expansion port Optional cards:   • Gigabit Network Card – Part Number: NETWORK-M2   • Relay Card – Part Number: RELAY-MS |
|
Software Compatibility |
Intelligent Power Software Suite |
|
User Interface |
Graphical display, 5-button programmable menu |
