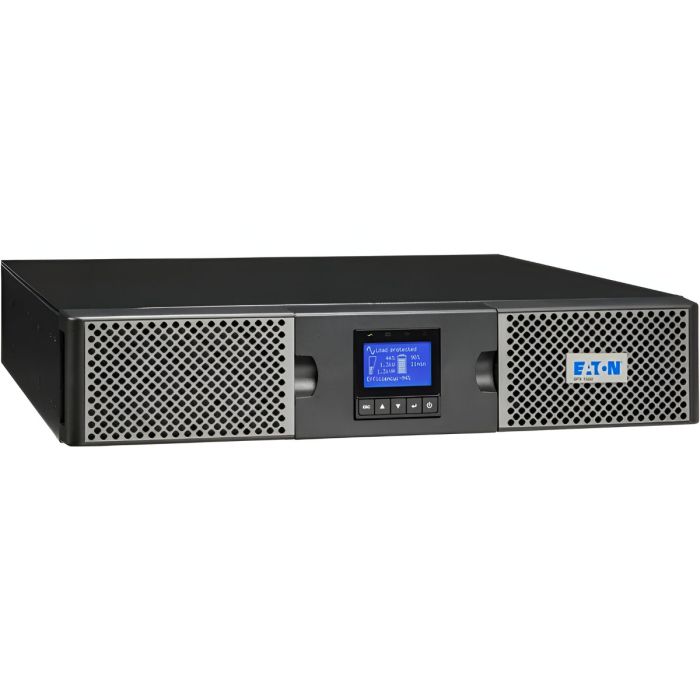

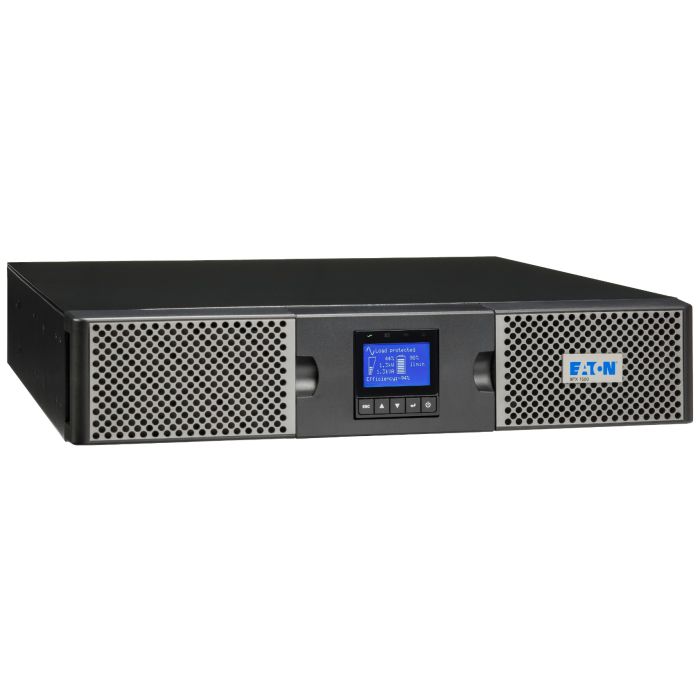

Eaton 9PX UPS 1500VA 1350W Double Conversion Online LCD 120V 9PX1500RT - Refurbished

Eaton 9PX UPS 1500VA 1350W RM 2U 120V LCD
Model: 9PX1500RT
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Double Conversion Online UPS - True Sine Wave Output
Graphical LCD Display
ABM® Battery Management Technology
Supports Up to 4 External Battery Modules
USB, RS-232 & MiniSlot Communications
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included

Back Order

Manufacturer: Eaton
Model: Eaton 9PX UPS 1500VA 1350W, RM 2U, LCD, 120V, 15A
Condition: New Batteries, Refurbished UPS
Part Number: 9PX1500RT
Maximum Output: 1350W / 1500VA
Topology: Online / Double-Conversion
Output Waveform: True Sine Wave
Typical Backup Time at Half Load: 16 Minutes (675 Watts)
Typical Backup Time at Full Load: 6 Minutes (1350 Watts)
Warranty: 1 Year Full Replacement Warranty

Description: The Eaton 9PX1500RT is a 1500VA / 1350W Online Double-Conversion UPS designed for reliable protection of servers, networking equipment, storage systems, and other critical IT equipment. It features a NEMA 5-15P 120V input, (8) NEMA 5-15R outlets, true sine wave output, 0.9 power factor, graphical LCD display, ABM battery management, hot-swappable batteries, and support for up to four 9PXEBM48RT external battery modules. USB, RS-232, remote ON/OFF, remote power-off and MiniSlot connectivity provide flexible local and remote management options. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.








Eaton 9PX UPS 1500VA 1350W RM 2U LCD 120V 9PX1500RT - User Manual






9PX1500RT - Eaton UPS 1500VA Specifications:

General
Manufacturer Eaton
Model 9PX1500RT
Product Series Eaton 9PX
Product Type UPS
UPS Topology Online / Double-Conversion
Rated Power 1500VA / 1350W
Output Power Factor 0.9
Output Waveform True Sine Wave
Form Factor Rackmount
Rack Height 2U
Internal Bypass Yes
Efficiency at Maximum Load 90%
Color Black
Condition New Batteries, Refurbished UPS
Warranty 1 Year Full Replacement Warranty

Electrical Input

Input Connection

NEMA 5-15P

Nominal Input Voltage 120V Default
Selectable Input Voltages 100 / 110 / 120 / 125V
Input Frequency 50 / 60 Hz
Input Frequency Range – 60Hz 50–70 Hz
Input Frequency Range – 50Hz 40–60 Hz
Input Power Factor >0.99 Typical
Input Cord Length 8 ft
Input Phase Single Phase

Electrical Output
Output Capacity 1500VA
Output Power 1350W
Nominal Output Voltage 120V Default
Selectable Output Voltages 100 / 110 / 120 / 125V
Output Voltage Regulation ±1% Steady-State
Output Frequency 50 / 60 Hz
Output Power Factor 0.9
Output Waveform True Sine Wave

Output Receptacles

(8) NEMA 5-15R

Total Number of Outlets 8
Internal Bypass Yes

Batteries & Runtime
Battery Type Sealed Lead-Acid
Battery Management Eaton ABM Technology
Charging Technology 3-Stage Charging
Battery Replacement Hot-Swappable
Internal Replacement Battery EBP-1613 (Qty. 1)
Typical Runtime at Half Load 16 Minutes (675W)
Typical Runtime at Full Load 6 Minutes (1350W)
Extended Runtime Capability Yes
Compatible External Battery Module 9PXEBM48RT
Maximum External Battery Modules Up to 4
Hot-Swappable EBMs Yes
Battery Replacement Warning Yes – via ABM Technology

Communications & Management
Communication Slot MiniSlot
Expansion Slots (1) Mini-Slot (MS) Expansion Port
USB Port (1) USB Port
Serial Port (1) RS-232 Serial Port
Remote ON/OFF Yes – Dedicated Mini-Terminal Block
Remote Power Off (RPO) Yes – Dedicated Mini-Terminal Block
Output Relay Yes – Dedicated Mini-Terminal Block
Network Management Supported with Optional Network Card
Remote Network Monitoring Supported with Optional Network Card
Network Card Type Gigabit Network Management Card
Compatible Modbus Gateway Eaton INDGW-M2
Modbus Communication Supported with Optional INDGW-M2
Compatible Relay Card Eaton RELAY-MS
Relay Communication Supported with Optional RELAY-MS
Local USB Communication Supported
Local Serial Communication Supported via RS-232
UPS Status Monitoring Supported
Power Condition Monitoring Supported
Battery Status Monitoring Supported
Load Status Monitoring Supported
Remote Shutdown Capability Supported through Communication Interfaces
Power Management Software Eaton Intelligent Power Software Suite
Software-Based UPS Monitoring Supported
Communication Expansion Yes – Through MiniSlot
Optional Connectivity Cards NETWORK-M3 / INDGW-M2 / RELAY-MS / NETWORK-MS / NETWORK-M2
User Interface Graphical LCD Display
Display Controls 5-Button Programmable Menu
USB Cable Included
RS-232 Cable Included

User Interface & Controls
Display Type Graphical LCD Display
User Interface Graphical Display with 5-Button Programmable Menu
Programmable Menu Yes
UPS Status Monitoring Yes
Battery Status Monitoring Yes
Load Monitoring Yes
Alarm / Event Monitoring Yes
Remote ON/OFF Control Yes
Remote Power-Off Control Yes

Physical
Rack Height 2U
Height 3.4 in
Width 17.3 in
Depth 17.7 in
Weight 42.5 lb
Rack Mounting Kit Yes
Rack-Mounting Hardware Included

Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Relative Humidity 0–96% Non-Condensing
Noise Level <40 dB at 1 Meter
Altitude 0–1500 m at 0–40°C
High-Altitude Operation 1500–3000 m at 0–35°C
BTU Rating – Online 512 BTU/hr
BTU Rating – Battery 897 BTU/hr

Compliance & Certifications
IEC Compliance IEC 62040-2 Category C1
CISPR CISPR22 Class B
FCC FCC Part 15 Class B
VCCI VCCI Class B
Safety Certification cULus Listed
NOM Certified
