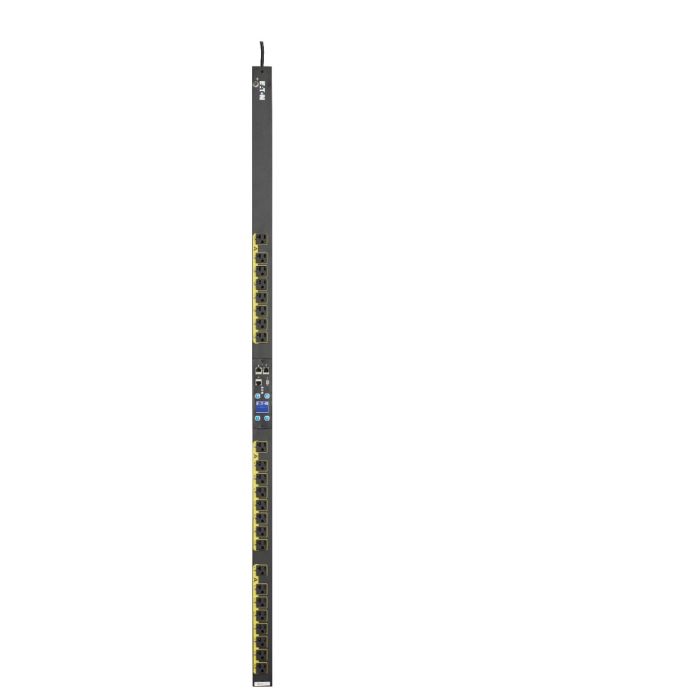

Eaton EMI102-10 Metered PDU 0U, 120V, 2880W, Output: (30) 5‑20R – Refurbished
Eaton Metered Input PDU 0U, 120V, 24A, 2.88 kW
Model: EMI102-10
Input Connection: NEMA L5-30P (120V)
Cord Length: 10 ft
Output Connections: (30) NEMA 5-20R
Phase: Single-Phase
Condition: Refurbished PDU
Warranty: 1-Year Replacement Warranty
$899.99
In stock
Manufacturer: Eaton
Model: EMI102-10
Input Connection: NEMA L5-30P, 10 ft cord
Output Connections: (30) NEMA 5‑20R
Phase: Single-Phase
Maximum Power: 2.88 kW
Current Rating: 24 A
Frequency: 50–60 Hz
Condition: Refurbished PDU
Warranty: 1-Year Replacement Warranty
Product Description:
The Eaton EMI102-10 is a 0U vertical, single-phase metered input PDU designed for space-saving rack deployment. It provides real-time load monitoring and features 30 NEMA 5‑20R outlets to power servers, networking, and IT equipment. This PDU includes an L5-30P input and a 10-foot power cord, supporting a maximum of 2.88 kW at 120 V. It is ideal for data centers and rack environments where precise monitoring of connected loads is required.
Eaton EMI102-10 Metered PDU 0U, 120V - User Manual
Eaton EMI102-10 Specifications :
Input
|
Nominal Input Voltage |
120V |
|
Input Frequency |
50–60 Hz |
|
Input Connection |
NEMA L5-30P |
|
Cord Length |
10 ft (3.05 m) |
|
Acceptable Input Voltage |
120V ±10% |
|
Maximum Input Current |
24A |
|
Number of Power Cords |
1 |
|
Overload Protection |
Yes |
|
Phase |
Single-Phase |
Output
|
Output Connector(s) |
(30) NEMA 5-20R |
|
Maximum Total Current Draw |
24A |
|
Output Power (Max) |
2.88 kW |
|
Remote Outlet Monitoring |
Yes (Metered PDU) |
|
Outlet Control |
No (Not switched) |
|
Typical Transfer Time |
N/A |
Environmental
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Operating Relative Humidity |
5–95% non-condensing |
|
Operating Elevation |
0–3,000 m |
|
Storage Temperature |
-25°C to 65°C (-13°F to 149°F) |
|
Storage Relative Humidity |
5–95% non-condensing |
|
Storage Elevation |
0–15,000 m |
Physical
|
Height |
66.5 in (169 cm) |
|
Width |
2.05 in (52 mm) |
|
Depth |
2.05 in (52 mm) |
|
Unit Weight |
14.77 lbs (6.7 kg) |
|
Shipping Weight |
18 lbs (8.2 kg) |
|
Rack Units |
0U (Vertical) |
|
Mounting Location |
Side or Vertical Rack |
|
Form Factor |
0U Vertical Rackmount |
|
Material |
Steel |
Certifications & Compliance
UL Listed, RoHS Compliant, TAA Compliant
