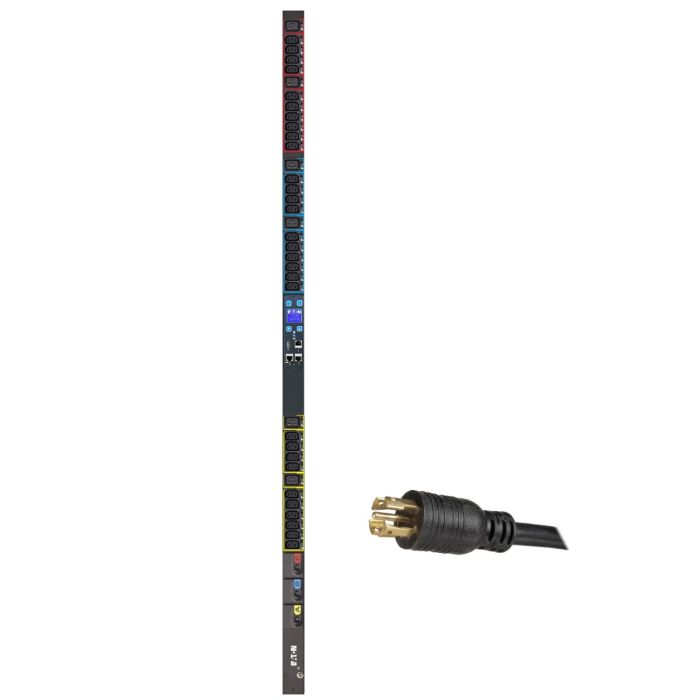

Eaton EMI304-10 Metered Input rack PDU, 0U, 8.64 kW max, 120/208V, 24A - Refurbished

Manufacturer: Eaton
Model: Eaton ePDU G3 Metered Input 0U 120/208V Three-Phase 30A
Part Number: EMI304-10
Condition: Refurbished PDU
Maximum Load Capacity: 8640W / 8.64kW
Rated Current: 24A Continuous
Input: NEMA L21-30P, 120/208V, 30A, 10 ft Power Cord
Output: (30) IEC C13, (6) IEC C19
PDU Type: Metered Input - Input & Branch Circuit Monitoring
Input Phase: Three-Phase
Circuit Protection: (3) 20A Circuit Breakers
Network Management: Integrated Eaton eNMC - Web, SNMP & CLI
Environmental Monitoring: Optional Eaton Environmental Monitoring Probe (EMP)
Display: Advanced LCD Display
Warranty: 1 Year Full Replacement Warranty

Eaton EMI304-10 Metered Input rack PDU, 0U, 8.64 kW - Technical Drawing

EMI304-10 - Eaton ePDU G3 Metered Specifications:

Main
Manufacturer	Eaton
Model	EMI304-10
Product Name	Eaton Metered Input PDU
Product Family	Eaton ePDU G3
Product Type	Metered Input PDU
UPC	786685885056
Maximum Power Capacity	8640W / 8.64kW
Rated Current	24A Continuous
Input Phase	Three-Phase
Form Factor	Vertical Zero U
Condition	Refurbished PDU
Input
Nominal Input Voltage	120/208V AC
Input Phase	Three-Phase
Input Frequency	50/60Hz
Input Connection	NEMA L21-30P
Input Plug Rating	30A
Rated Continuous Current	24A
Maximum Power Capacity	8.64kW
Power Cord Length	10 ft (3.05 m)
Input Power Cords	1
Output & Power Distribution
IEC C13 Outlets	(30) IEC 60320 C13
IEC C19 Outlets	(6) IEC 60320 C19
Total Outlets	36
Outlet Types	IEC 60320 C13 / C19
Outlet Retention	Eaton Outlet Grip
Output Voltage	120/208V AC
Maximum Output Power	8.64kW
Power Distribution	Three-Phase Rack Power Distribution
Circuit Protection	(3) 20A Circuit Breakers
Individual Outlet Switching	No
Individual Outlet Metering	No
Input Power Monitoring	Yes
Branch Circuit Monitoring	Yes
Power Monitoring & Metering
Metering Type	Input & Branch Circuit Monitoring
Input Current Monitoring	Real-Time Current Monitoring
Branch Circuit Monitoring	Real-Time Branch Circuit Measurements
Voltage Monitoring	RMS Voltage
Current Monitoring	RMS Current
Active Power Monitoring	Watts / kW
Apparent Power Monitoring	VA / kVA
Energy Consumption Monitoring	kWh
Power Factor Monitoring	Supported
Crest Factor Monitoring	Supported
Maximum & Minimum Thresholds	Configurable Current and Voltage Thresholds
Measurement Accuracy	±1% (per supplied specifications)
Individual Outlet Monitoring	Not Supported
Monitoring Access	Local LCD, Web Interface and Network Management
Communications & Management
Network Management	Integrated Eaton ePDU Network Management and Control (eNMC) Module
Ethernet Interface	Built-In 10/100 Mbps Ethernet
Web Management	HTTP / HTTPS
SNMP Support	SNMPv1 and SNMPv3
Command-Line Interface	Serial CLI
Serial Interface	RS-232
Telnet Management	Supported
SSH Management	Supported
Network Daisy Chaining	Up to 8 Compatible ePDUs
USB Interface	Firmware Upgrades and Configuration Files
Remote Monitoring	Input and Branch Circuit Measurements, Status and Alarms
Network Configuration	DHCP or Static IP
IPv4 Support	Yes
IPv6 Support	Yes
Event Notifications	SNMP Traps and Email Alerts
Event Logging	Supported
Syslog	Supported
Power Monitoring	Real-Time Input and Branch Circuit Measurements
Energy Monitoring	kWh Tracking
Remote Outlet Control	Not Supported
Individual Outlet Reboot	Not Supported
Environmental Monitoring	Optional Eaton Environmental Monitoring Probe (EMP)
Environmental Measurements	Temperature and Humidity with Optional EMP
External Contact Monitoring	(2) Contact Inputs with Optional EMP
Firmware Upgrades	Supported Through Web, FTP or USB
User Access Control	Configurable Local and Remote User Permissions
Network Security	HTTPS / SSL, SNMPv3, SSH
Authentication	LDAP / RADIUS Support
Management Software	Eaton Intelligent Power Manager (IPM) Compatibility
User Interface, Alerts & Controls
Local Display	Advanced LCD Display
Display Functions	Load Status, Measurements, Events, Identification and Settings
Navigation Buttons	Integrated
Network Module Reset Button	Yes
Reset Function	Restarts eNMC Without Interrupting Outlet Power
Active Alarm Display	Supported
Alarm History	Supported
Metering Menu	Input and Branch Circuit Measurements
Configurable Alarms	Current, Voltage and Other Supported Thresholds
Visual Alarm Indication	LCD and Status Indicators
Remote Notifications	SNMP Traps and Email Alerts
Physical
Mounting Type	Vertical Rackmount
Rack Height	0U
Product Length / Depth	66.5 in (168.91 cm)
Product Height	2.1 in (5.33 cm)
Product Width	2.05 in (5.21 cm)
Product Weight	17.2 lbs (7.80 kg)
Color	Black
Mounting Location	Rack Side / Vertical
Environmental
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Operating Relative Humidity	5–95%, Non-Condensing
Storage Relative Humidity	5–95%, Non-Condensing
Operating Elevation	0–3,000 m (0–9,843 ft)
Storage Elevation	0–15,000 m (0–49,213 ft)
Certifications & Compliance
Safety Certification	UL Listed
Trade Compliance	TAA Compliant
Other Compliance	Contact Manufacturer
Condition & Warranty
Condition	Refurbished PDU
Warranty	1 Year Full Replacement Warranty
