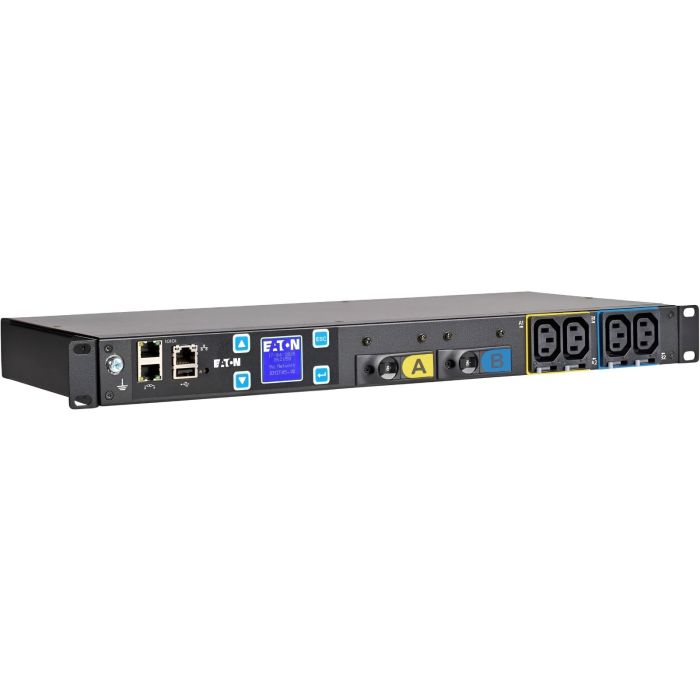

Eaton EMIT05-10 Metered Input PDU 1PH, 1U, 200–240V, 5760W, Output: (16) C13 – Refurbished

Eaton ePDU G3 Metered Input PDU 1U 5.76kW 24A 200-240V TAA Compliant
Model: EMIT05-10
Input: NEMA L6-30P (200-240V, 24A)
Output: (16) IEC 60320 C13 Outlet Grip
Single-Phase Metered Input PDU with LCD Display
Integrated Ethernet & RS-232 Remote Monitoring
Professionally Refurbished PDU
1-Year Full Replacement Warranty Included

In stock

Manufacturer: Eaton
Model: Eaton ePDU G3 Metered Input PDU, 1U, 5.76kW, 24A, 200–240V, Single-Phase
Condition: Refurbished PDU
Part Number: EMIT05-10 TAA Compliant
Input Voltage: 200–240V AC
Output Voltage: 200–240V AC
Input Connection: NEMA L6-30P, 10 ft (3.05 m) Cord
Output Connections: (16) IEC 60320 C13 Outlet Grip
Maximum Power: 5.76 kW
Current Rating: 24A Continuous
Frequency: 50–60 Hz
Warranty: 1 Year Full Replacement Warranty Included

Product Description: Eaton EMIT05-10 Metered Input PDU is a 5.76kW rackmount power distribution unit designed for reliable power delivery in IT and data center environments, featuring a 200–240V single-phase input with NEMA L6-30P connection, providing (16) IEC C13 outlets for efficient equipment distribution, with built-in metering for real-time monitoring of current, voltage, power, and energy usage, without outlet switching capability, housed in a compact 1U horizontal form factor, ideal for applications requiring input-level power visibility, includes robust steel construction and compliance with UL and RoHS standards.







Eaton EMIT05-10 Metered Input PDU 1PH, 1U, 200–240V, User Manual





EMIT05-10 - Eaton Metered Input PDU Specifications:

Product Overview
PDU Type  Eaton ePDU G3 Metered Input PDU
Form Factor Horizontal Rackmount
Rack Height 1U
Input Voltage 200-240V AC
Output Voltage 200-240V AC
Input Phase Single-Phase
Maximum Power Capacity 5.76 kW
Current Rating 24A Continuous
Input Connection NEMA L6-30P
Output Connections (16) IEC 60320 C13 Outlet Grip
Cord Length 10 ft (3.05 m)
Input Metering Yes
Outlet Switching No
Ethernet Interface Integrated
Serial Interface RS-232
Application Servers, Storage Systems, Network Equipment and Enterprise Data Centers

Output
Output Voltage 200-240V AC
Output Receptacles (16) IEC 60320 C13 Outlet Grip
Maximum Output Current 24A
Maximum Output Power 5.76 kW
Outlet Metering No
Outlet Switching No
Load Monitoring Real-Time Input Power Monitoring
Overload Protection Yes
Power Distribution Single Load Bank
Transfer Time N/A

Input
Input Voltage 200-240V AC
Input Voltage Range 200-240V ±10%
Input Frequency 50/60 Hz
Input Connection NEMA L6-30P
Number of Power Cords 1
Cord Length 10 ft (3.05 m)
Maximum Input Current 24A
Phase Single-Phase

Communications & Management
Local Display LCD Pixel Display
Ethernet Interface Integrated 10/100 Ethernet Port
Serial Interface RS-232
Remote Monitoring Yes
Metering Functions Real-Time Current, Voltage, Power and Energy Monitoring
Communication Protocols HTTP, HTTPS, SNMP v1/v2c/v3, SSH, Telnet
Additional Protocols FTP, SCP
Event Logging Power and Event Logs
Notifications Email Alerts, SNMP Traps, Syslog
Configurable Alarms Overload, Threshold and Network Events
Firmware Updates Supported via Ethernet Interface
Security Features HTTPS, SSH, User Authentication
Remote Administration Web Browser, SNMP and Command Line Interface (CLI)
Environmental Monitoring Compatible with Eaton ePDU G3 Environmental Monitoring Probe (EMP)
Outlet Control Not Supported (Metered Input PDU)

Physical
Form Factor 1U Horizontal Rackmount
Height 1.69 in (43 mm)
Width 19.0 in (483 mm)
Depth 8.0 in (203 mm)
Net Weight 8.8 lbs (4.0 kg)
Housing Material Heavy-Duty Steel
Color Black
Mounting Standard 19-inch Rack

Environmental
Operating Temperature 32°F to 140°F (0°C to 60°C)
Storage Temperature -13°F to 149°F (-25°C to 65°C)
Operating Humidity 5-95% Non-Condensing
Storage Humidity 5-95% Non-Condensing
Operating Altitude Up to 3,000 m (9,842 ft)

Conformance
Certifications UL Listed
Compliance TAA Compliant, RoHS Compliant
Product Family Eaton ePDU G3
Condition Refurbished PDU
Warranty 1 Year Full Replacement Warranty Included
