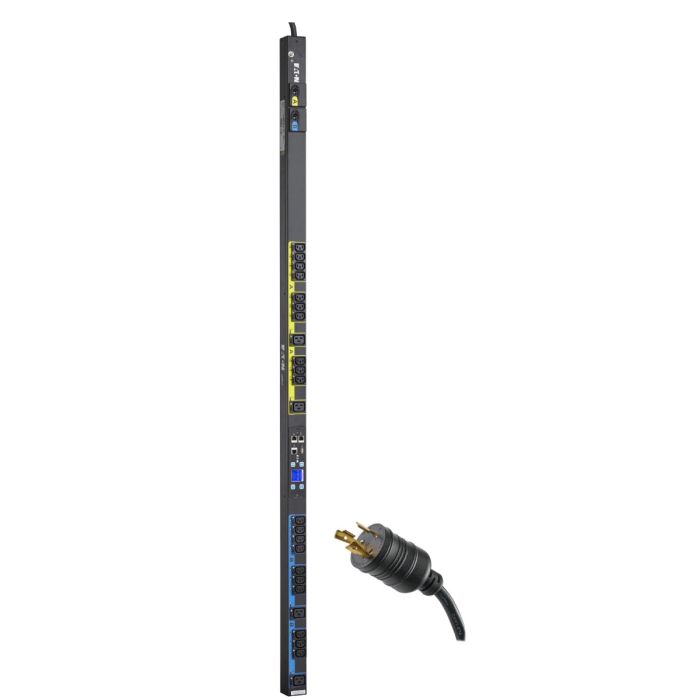

Main image Click to view image in fullscreen Eaton EMA107-10 Managed MTD & Switched PDU 120V, 1920W, Output:(24)5-20R – Refurbished

Eaton EMA107-10 Managed MTD & Switched PDU 120V, 1920W, Output:(24)5-20R – Refurbished

Eaton Managed ePDU G3 0U, 200–240V, 24A, 5.76kW Managed PDU

Model: EMA107-10

Input Connection: NEMA L6-30P (200–240V)

Cord Length: 10 ft (3.05 m)

Output Connections: (20) IEC C13, (4) IEC C19

Phase: Single-Phase

Condition: Refurbished PDU

Warranty: 1-Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + $300.00

3 Year + $525.00

In stock

Quantity

Manufacturer: Eaton
Model: EMA107-10

Description: Eaton Managed ePDU G3 5.76kW 0U 24A 200-240V Managed PDU

Input Voltage: 200-240V
Input Connection: NEMA L6-30P

Output: (20) IEC C13, (4) IEC C19

Phase: Single-Phase
Maximum Power: 5.76kW

Condition: Refurbished PDU
Warranty: 1-Year Full Replacement Warranty, additional warranty available

Product Description: The Eaton EMA107-10 is a 0U vertical managed ePDU designed for high-density rack environments, providing reliable 200–240V power distribution through a NEMA L6-30P input and supporting (20) IEC C13 and (4) IEC C19 outlets. It delivers advanced remote power management with outlet-level monitoring and switching, allowing administrators to reboot devices, sequence power, and manage loads efficiently. With integrated network management via Web, SNMP, SSH, Telnet, and RS-232, it enables real-time monitoring, event logging, environmental sensing, and configurable alarms, making it ideal for enterprise and mission-critical data center applications.

Eaton EMA107-10 Managed ePDU G3 5.76kW 200-240V Managed PDU - User Manual

EMA107-10 - Eaton Managed ePDU G3 Specifications:

Key Features:
Rack Height	0U Vertical Rackmount
PDU Type	Managed ePDU G3
Outlet Control	Yes
Remote Monitoring	Yes
Input Voltage	200-240V
Input Connection	NEMA L6-30P
Cord Length	10 ft (3.05 m)
Output Connections	(20) IEC C13, (4) IEC C19
Maximum Power Capacity	5.76kW
Current Rating	24A
Phase	Single-Phase
Frequency	50-60 Hz
Form Factor	Vertical Rackmount
Serial Interface	RS-232
Outlet Retention	Outlet Grip
TAA Compliance	Yes
Certifications	UL Listed


Output :
Output Voltage	200-240V
Output Connections	(20) IEC C13, (4) IEC C19
Outlet Type	IEC C13 / IEC C19
Total Output Outlets	24
Maximum Total Current Draw	24A
Maximum Output Power	5.76kW
Outlet Switching	Yes
Outlet Reboot Control	Supported
Load Sequencing	Supported
Power Monitoring	Real-time outlet and load monitoring
Load Management	Intelligent outlet-level load control
Outlet Retention	IEC outlet grip retention
Power Distribution	High-density rack power distribution
Monitoring Accuracy	High-precision power metering
Alarm Support	User-configurable threshold alarms
Environmental Sensor Support	Yes
Remote Outlet Control	Individual outlet switching supported
Energy Monitoring	Real-time current and power usage tracking
Power Cycling	Remote reboot functionality supported


Input :
Input Voltage	200-240V
Input Frequency	50-60 Hz
Input Plug Type	NEMA L6-30P
Input Current Rating	24A
Maximum Input Power	5.76kW
Number of Power Cords	1
Cord Length	10 ft (3.05 m)
Input Connection Type	Locking NEMA input connection
Phase	Single-Phase
Input Monitoring	Real-time current monitoring
Overload Protection	Yes
Input Power Feed	Single Input Feed
Input Voltage Range	200-240V
Rack Power Delivery	Enterprise-grade power distribution
Power Capacity	High-density rack support
Input Reliability	Designed for mission-critical environments


Communications & Management:
Network Management	Integrated eNMC Network Management Controller
Remote Access	Web UI, SNMP, SSH, Telnet
Serial Interface	RS-232
Supported Protocols	HTTP, HTTPS, SNMP v1/v2c/v3, SSH, Telnet
Outlet-Level Monitoring	Yes
Outlet-Level Switching	Yes
Environmental Monitoring	Supported
User Authentication	Password-protected remote access
Alarm Notifications	User-configurable alarms and alerts
Event Logging	Historical event and power logging
Power Sequencing	Supported
Load Shedding	Supported
Firmware Updates	Remote firmware upgrade support
Remote Diagnostics	Supported
Intelligent Monitoring	Rack-level power analytics
Management Integration	Compatible with Eaton Intelligent Power Manager
Network Security	Secure encrypted management access
Access Methods	Browser-based and CLI management
Remote Reboot Capability	Supported
Monitoring Features	Voltage, current, power, and energy monitoring
Monitoring Features	Voltage, current, power, and energy monitoring


User Interface, Alerts & Controls:
Local Display	LED status indicators
User Interface	Web-based remote management interface
Outlet Control	Individual remote outlet switching
Alarm Notifications	Visual and network-based alarms
Overload Alerts	Supported
Threshold Alarms	User-configurable
Power Status Indicators	Yes
Network Status Indicators	Yes
Remote Power Cycling	Supported
Load Monitoring Interface	Real-time monitoring dashboard
Event Notifications	SNMP traps and email alerts supported
User Access Control	Multi-user authentication support
Configuration Interface	Web UI and CLI configuration
Remote Management	Full remote outlet administration
Environmental Alerts	Supported with optional sensors
Security Features	HTTPS, SSH, password authentication


Physical:
Height	66.5 in (169 cm)
Width	2.1 in (53 mm)
Depth	2.0 in (51 mm)
Weight	17.3 lbs (7.85 kg)
Color	Black
Rack Units	0U
Mounting Orientation	Vertical
Form Factor	Vertical Rackmount
Mounting Location	Side Mount / Rack Vertical Mount
Material	Steel
Product Type	Managed PDU


Environmental:
Operating Temperature	0°C to 60°C (32°F to 140°F)
Operating Relative Humidity	5-95% non-condensing
Operating Elevation	0-3000 m
Storage Temperature	-25°C to 65°C (-13°F to 149°F)
Storage Relative Humidity	5-95% non-condensing
Storage Elevation	0-15000 m
Compliance	TAA Compliant
Certifications	UL Listed
RoHS Compliance	Yes
