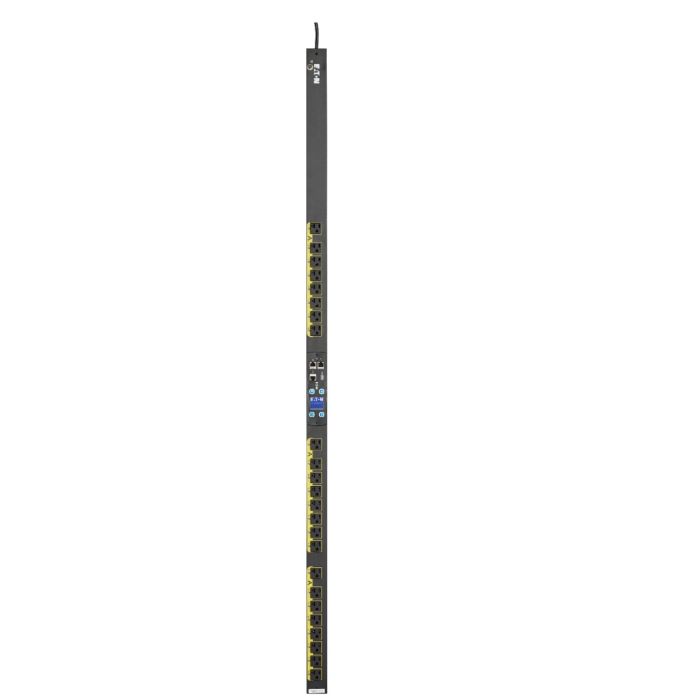

Main image Click to view image in fullscreen Eaton EMA114-10 Managed PDU 0U, 120V, 16A, 1920W, Output:(24)5-20R – Refurbished

Eaton EMA114-10 Managed MTD & Switched PDU 0U, 120V, 1920W, Output:(24)5-20R – Refurbished

Eaton Managed / Metered & Switched Input PDU 0U, 120V, 16A, 1920W

Model: EMA114-10

Input Connection: NEMA 5-20P / NEMA L5-20P (120V)

Cord Length: 10 ft

Output Connections: (24) NEMA 5-20R

Phase: Single-Phase

Condition: Refurbished PDU

Warranty: 1-Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + $300.00

3 Year + $525.00

In stock

Quantity

Manufacturer: Eaton
Model: EMA114-10

Description: Eaton Managed / Metered & Switched PDU 0U, Single-Phase, 120V, 16A, 1.92 kW

Input: NEMA L5-20P (120V), 10 ft cord
Output: (24) NEMA 5-20R
Condition: Refurbished PDU
Warranty: 1-Year Full Replacement Warranty, additional warranty available

Product Description:

The Eaton EMA114-10 is a managed / metered & switched PDU designed for single-phase (1PH) applications in a compact 0U vertical form factor. Operating at 120V with a maximum load of 1.92 kW and a rated current of 16A, this unit provides 24 NEMA 5-20R outlets for reliable power distribution to servers, networking equipment, and other IT devices.

Featuring an L5-20P input connection with a 10-foot (3 m) power cord, the EMA114-10 offers per-outlet monitoring, outlet-level switching, and RS-232 serial communication, allowing for advanced management and real-time monitoring. Ideal for data centers and rack environments that require efficient, monitored, and manageable power distribution.

Eaton Managed / Metered & SwitchedPDU 0U, Single-Phase - User Manual

Eaton EMA114-10 Specifications

Input
Nominal Input Voltage	120V
Input Frequency	50–60 Hz
Input Connection	NEMA L5-20P
Cord Length	10 ft (3.05 m)
Acceptable Input Voltage	120V ±10%
Maximum Input Current	16A
Number of Power Cords	1
Overload Protection	Yes
Phase	Single-Phase

Output
Output Connector(s)	(24) NEMA 5-20R
Maximum Total Current Draw	16A
Output Power (Max)	1.92 kW
Remote Outlet Monitoring	Yes (Managed PDU)
Outlet Control	Yes (Individual)
Typical Transfer Time	<12 ms

Environmental
Operating Temperature	0°C to 60°C (32°F to 140°F)
Operating Relative Humidity	5–95% non-condensing
Operating Elevation	0–3,000 m
Storage Temperature	-25°C to 65°C (-13°F to 149°F)
Storage Relative Humidity	5–95% non-condensing
Storage Elevation	0–15,000 m

Physical
Height	66.5 in (169 cm)
Width	2.09 in (53 mm)
Depth	2.05 in (52 mm)
Unit Weight	15.9 lbs (7.2 kg)
Shipping Weight	18 lbs (8.2 kg)
Rack Units	0U (Vertical)
Mounting Location	Side or Vertical Rack
Form Factor	0U Vertical Rackmount
Material	Steel

Certifications & Compliance	UL Listed, RoHS Compliant, TAA Compliant
