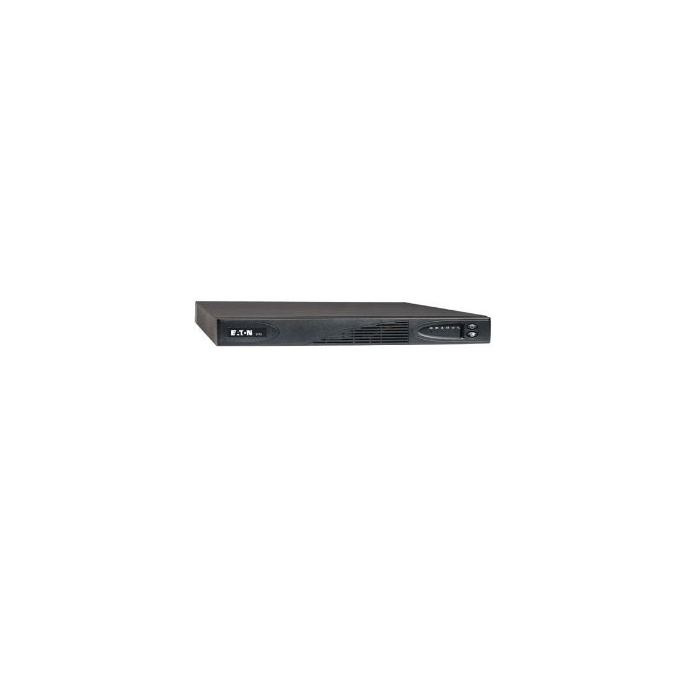

Eaton Powerware 5115 Rackmount 1440VA UPS 103003275-6591
Eaton Powerware 5115 Rackmount 1440VA RM UPS
Model: 103003275-6591
1000 Watts / 1440 VA
Refurbished with New Batteries
1 Year Extended Warranty Included
$365.99
Back Order
Manufacturer: Eaton Powerware
Model: 103003275-6591 Eaton Powerware 5115 Rackmount 1440VA RM UPS
Condition: Refurbished with New Batteries
Part Number: 103003275-6591
Warranty: 1 Year Extended Warranty, additional warranty available
The 103003275-6591 comes refurbished with new batteries. The Eaton MGE Evolution comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
103003275-6591 Specifications:
General:
|
Topology |
Line Interactive |
|
Configuration |
Rackmount |
|
Part Number |
103003275-6591 |
|
Color |
Black |
|
Rating (VA/Watts) |
1440/1000 |
|
Diagnostics |
Self-test @ power up |
|
Efficiency |
95% |
|
Dimensions (H x W x D, inches) |
1.73 x 17.3 x 22.8 |
|
Weight (lbs) |
48.6 |
|
Contents |
1 ready-to-go UPS |
Electrical Input:
|
Connection |
(1) NEMA 5-15P |
|
Input Cord |
6 ft. line cord |
|
Nominal Voltage |
120 VAC |
|
Frequency |
50/60 Hz, auto-sensing |
|
Frequency Range |
46-65 Hz |
|
Nominal Current |
12 A |
Electrical Output:
|
Output Receptacles |
(4) NEMA 5-15R |
|
On Utility Voltage Regulation |
-10% to +6% of nominal |
|
On Battery Voltage Regulation |
120v or nominal +/- 5% |
|
Overload Capacity |
110% overload, shutdown after 3 minutes; 150% overload, shut down 10 cycles |
|
Power Factor |
0.69 |
|
Transfer Time |
2-4 ms typical |
Battery:
|
Battery Description |
(6) 6V, 9 Ah. |
|
Battery Type |
Sealed, lead-acid; maintenance free |
|
Battery Replacement |
Hot-swappable internal batteries |
|
Start On Battery |
Allows UPS operation without utility input |
|
Recharge Time |
Recharge Time <3 hours to 90% usable capacity |
Communications:
|
User Interface |
LED status display with AC power on, load Group, Overload, On Battery and General Alarm indicators, Site Wiring Fault Indicator on rear panel for low volt models. |
|
Communication Ports |
(1) RS-232 Serial Port & (1) USB Port |
|
Power Management Software |
Eaton Intelligent Power Software Suite CD (bundled with UPS) |
Environmental & Standards:
|
Heat Dissipation (BTU) |
Online: 179.6 BTU/hr. On Battery: 810.6 BTU/hr. |
|
Audible Noise |
Less than 40 dBA typical |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Safety markings |
UL; cUL |
|
EMC Markings |
FCC Part 15 subpart J Class A, ICES-003 |
|
Markings |
UL 1778; UL497A; cUL (CAN/CSA C22.2, No. 107.1) |
|
Lightning / Surge Protection |
ANSI C62.41 Category A (formerly IEEE 587) |
|
Storage Temperature |
-15°C to 50°C (5°F to 122°F) |
|
Relative Humidity |
5% to 95% non-condensing |
