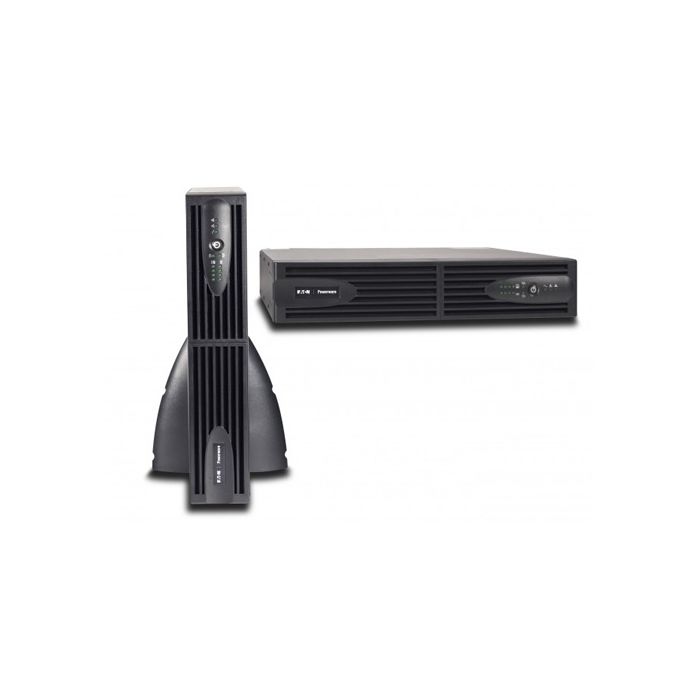

Eaton Powerware 5130 Rack/Tower UPS 2200VA PW5130L2200-XL2U

Electrical Input

Connection

(1) NEMA 5-20P

Input Cord

6 ft. (1.8 m)

Input Voltage Range

80-151V (* The high and low thresholds can be user adjusted using the downloadable UPS Configuration tool)

Nominal Voltage

120 VAC

Nominal Current

16.25

Breaker Ratings

30A

Electrical Output

Output Receptacles

(8) NEMA 5-20R

On Utility Voltage Regulation

102-132 Vac

Efficiency (on Battery)

0.75

Battery

Battery type

12V/7.2 Ah; sealed, lead-acid; maintenance free

General

Topology

Line interactive

Catalog Number

PW5130L2200-XL2U

Rating (VA/Watts)

2200VA/1920W

Dimensions (H x W x D, inches)

3.4 x 17.4 x 25

Weight (lbs)

74.5

Contents
(Ships with the following items)

1 ready-to-go UPS
Intelligent Power Software Suite CD: (Intelligent Power Manager, Intelligent Power Protector, Network Shutdown Module, LanSafe and Personal Solution-Pac)
RS-232 Serial Cable
USB Cable
User Guide
Phillips Head Screwdriver
Quick Start Instructions
4-post Rail Kit
Cord-Retention Brackets
Tower pedestals

              Environmental and Standards

Heat Dissipation (BTU)

Line: 418, Bat: 2,184

Operating Temperature

0˚C (32˚F) to +35°C (95˚F)

Safety markings

UL 1778; UL497A; cUL (CAN/CSA C22.2, No. 107.1)

EMC Markings

FCC Part 15 subpart B Class A

Markings

UL; cUL
