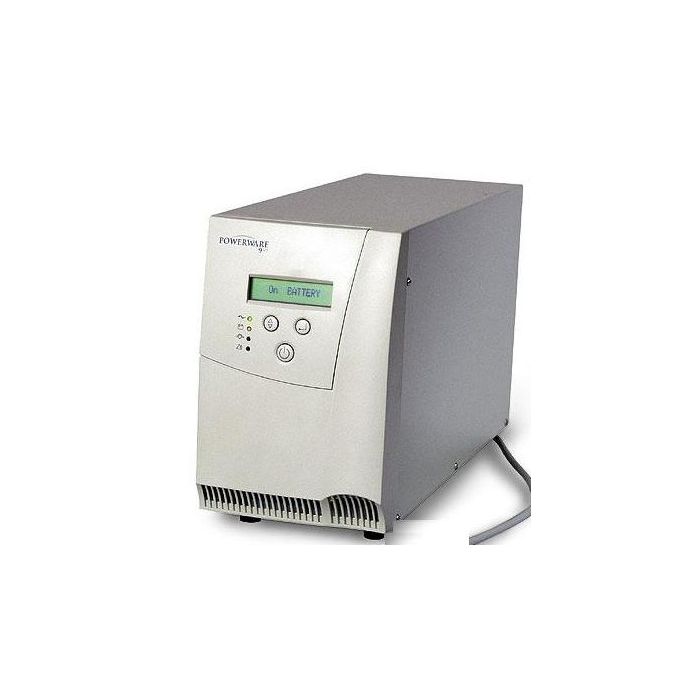

Eaton Powerware 9120 Tower UPS 2000VA PW9120-2000

Input

Nominal Voltage

120 V (user-selectable for 100, 110, 120, and 127 Vac
See Model Selection Guide

Voltage Range

80 - 144V (without using batteries)

Input Power Factor

>.95, typical

Frequency

50/60 Hz, autosensing

Connections

6-ft, 5-20P

Output

On Utility Voltage Regulation

+/-3% of nominal

On Battery Voltage Regulation

+/-3% of nominal

Efficiency

89 - 92%, depending on load

Frequency Regulation

+/- 3 Hz online; +/- 0.1 Hz on battery

Output connectors

(6) 5-20R

Battery

Internal Battery type

Sealed, lead-acid; maintenance free
(8) 12V, 7 Ah

Battery Replacement

Hot-swappable internal and external batteries

Recharge Time

4 hrs. from complete discharge to 90% capacity at nominal line conditions

Communications

Serial Port

RS-232 communications port standard

Communications Cable

6-foot communications cable included

ConnectUPS-M SNMP Module (Optional)²

SNMP card adds direct control and monitoring capabilities in SNMP-based networks

RS-232 Multi-Port Module

(Optional)²

Equipped with (6) communications ports to provide serial communication to multiple devices

USB Module

(Optional)²

Allows UPS to communicate with Windows 98 computers via USB port; factory-installed option only

General

Topology

True online, double-conversion

Diagnostics

Full system self-test on power up

UPS Bypass

Automatic on overload or UPS failure

Weight

82 lbs

Environmental and Safety

Safety Markings

UL, CUL

EMC Markings

FCC Part15, ICES-003, VCCI

Surge Suppression

ANSI C62.41 Category B (formerly IEEE587)

Audible Noise

<54 dBA

Storage Temperature

-15^o to 50^o C (-5^o to 131^o F)

Relative Humidity

0 to 95%, non-condensing
