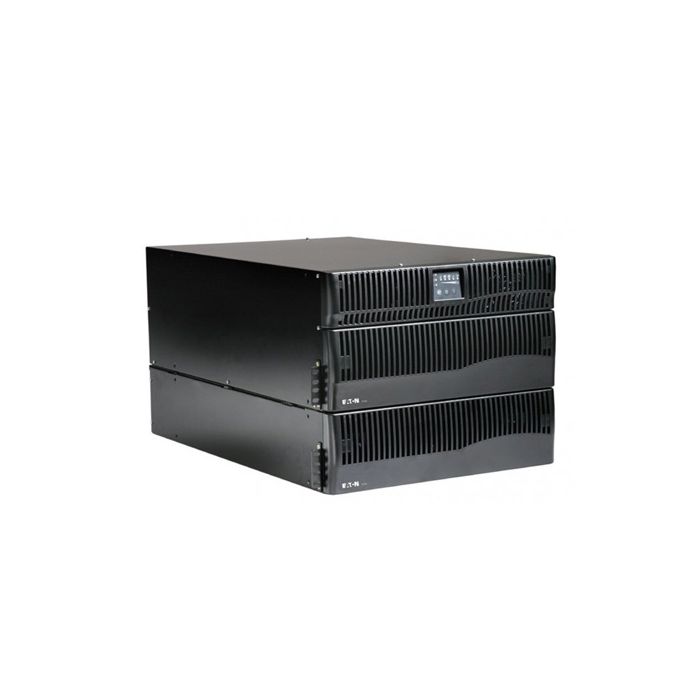

Eaton Powerware 9125 Rack/Tower UPS 5000VA PW9125-5000G

Additional Keyword

103003633-6591

Batteries Qty

20

Battery

Lead acid - 7 Ah

Battery Capacity

7 Ah

Battery Enclosure Type

Internal

Battery Form Factor

Internal

Cables Included

1 x serial cable - 6 ft

Capacity

7 Ah

Compliant Standards

CE, FCC Class A certified, CSA, UL, C-Tick, BSMI CNS 13438 Class A, ANSI C62.41, cUL, GS, NOM, VDE, VCCI Class A ITE, EN 61000-4-5, RoHS

Depth

24.9 in

Device Type

UPS

Dimensions (WxDxH)

17.4 in x 24.9 in x 8.6 in

Enclosure Color

Black

Equipment Protection Value

250000 US Dollars

Expansion Slots Total (Free)

1 ( 1 ) x X-Slot

Form Factor

External 5U

Frequency Required

50/60 Hz

Height

8.6 in

Height (Rack Units)

5U

Humidity Range Operating

5 - 90%

Input Connector(s)

1 x power NEMA L6-30

Input Voltage

AC 208/220/230/240 V

Input Voltage Range

AC 160 - 288 V

Interfaces

1 x management - RS-232 - 9 pin D-Sub (DB-9)

Interfaces

1 x management - USB

Manufacturer Warranty

2 years warranty

Max Operating Temperature

104 °F

Min Operating Temperature

32 °F

Output connector(s)

1 x power NEMA L6-30

Output Voltage

AC 208/220/230/240 V ± 3% ( 50/60 Hz )

Output Waveform

Sinewave

Power Provided

3.5 kW / 5000 VA

Product Description

Powerware 9125 Model 5000g - UPS - 3.5 kW - 5000 VA

Recharge Time

2 hour(s)

Run Time (Up To)

13 min at full load

Service & Support Details

Limited warranty - 2 years

Software Included

Drivers & Utilities

Sound Emission

45 dBA

Surge Suppression

Standard

Technology

Lead acid

UPS Technology

On-line

Voltage Provided

12 V

Weight

205.9 lbs

Width

17.4 in
