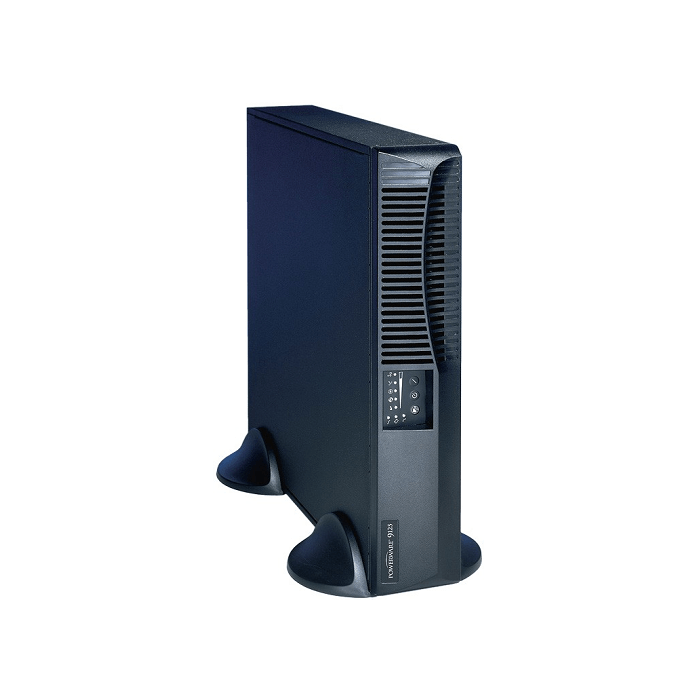

Eaton Powerware 9125 Rack/Tower UPS 2500VA PW9125-2500U Zoom


Eaton Powerware 9125 Rack/Tower UPS 2500VA PW9125-2500U

Eaton Powerware 9125 Rack/Tower UPS 2500VA
Model: PW9125-2500U
Online Double Conversion 2500VA / 1750W, 120V
Refurbished with New Batteries
1 Year Extended Warranty Included
Model # 103002716-6591
True online, double-conversion technology
Fourth-Generation Online™ topology ensures continuous, clean power
Advanced Battery Management Plus (ABM Plus™) doubles battery service life
Extended Battery Modules (EBMs) prolong backup times
Load Segments enable scheduled shutdowns and maximize backup time for critical
Diagnostics Full system self-test on power up
UPS Bypass Automatic on overload or UPS failure devices

Msrp Price: $776.99


Availability: In stock



Manufacturer: Eaton Powerware
Model: PW9125-2500U Eaton Powerware 9125 Rack/Tower UPS 2500VA
Condition: Refurbished with New Batteries
Part Number: PW9125-2500U
Warranty: 1 Year Extended Warranty, additional warranty available

The PW9125-2500U comes refurbished with new batteries. The Eaton UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

PW9125-2500U Specifications:


Input Plug

NEMA L5-30P (30-Amp Twistlock)

Voltage Range

80 - 144V (without using batteries)

Input Power Factor

> 95%


50/60 Hz, autosensing (Frequency Range 45 - 65 Hz )


Output receptacles

(2) NEMA 5-15R (Standard 3-prong receptacles)

(2) NEMA 5-20R (20-Amp 3-prong receptacles)

(1) NEMA L5-30R (30-Amp Twistlock)

On Utility Voltage Regulation

+/-3% of nominal


89 - 92%, depending on load

Frequency Regulation

+/- 3 Hz online; +/- 0.1 Hz on battery


Runtime at half-load

(875 Watts): 16 minutes

Runtime at full-load

(1750 Watts): 7 minutes

Battery Replacement

Hot-swappable internal

Recharge Time

<2 hrs. from complete discharge to 80% capacity at nominal line conditions


Allows start of UPS without utility input


Serial Port

RS-232 communications port standard

Environmental and Safety:

Safety Markings

UL, CSA, and NOM

EMC Markings

FCC Class B and VCCI Class II

Surge Suppression

IEEE/ANSI C62.41 Category B (formerly 587)



3.5 inches (89 mm)


17 inches (432 mm)


23.9 inches (607 mm)


82 lbs (37 kg)

Audible Noise

<45 dBA (on utility); <50 dBA (on battery)

Heat dissipation

2066 BTU/hr

Additional Info

Additional Info

Manufacturer Eaton Powerware
Form Factor Tower
Waveform in Battery Mode Pure Sinewave
Input Voltage No
Output (VA) No
Output Voltage No
PDU Total Outlets N/A
