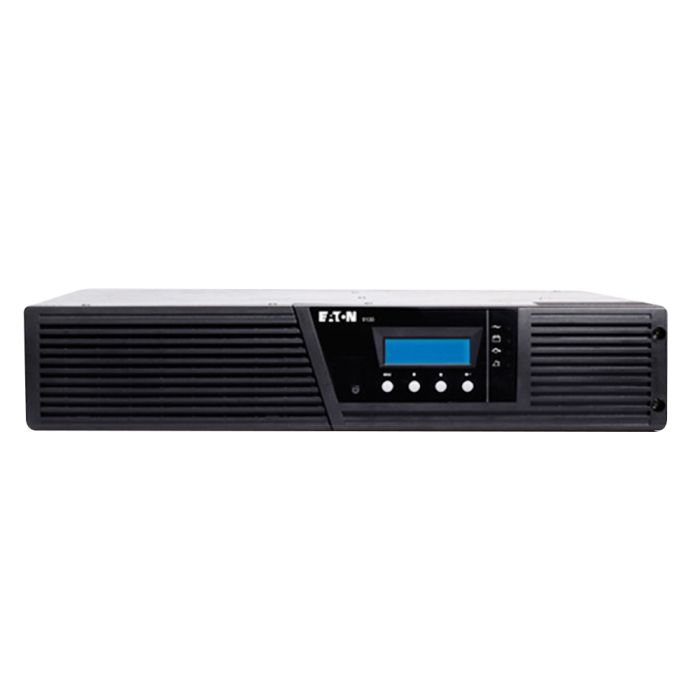

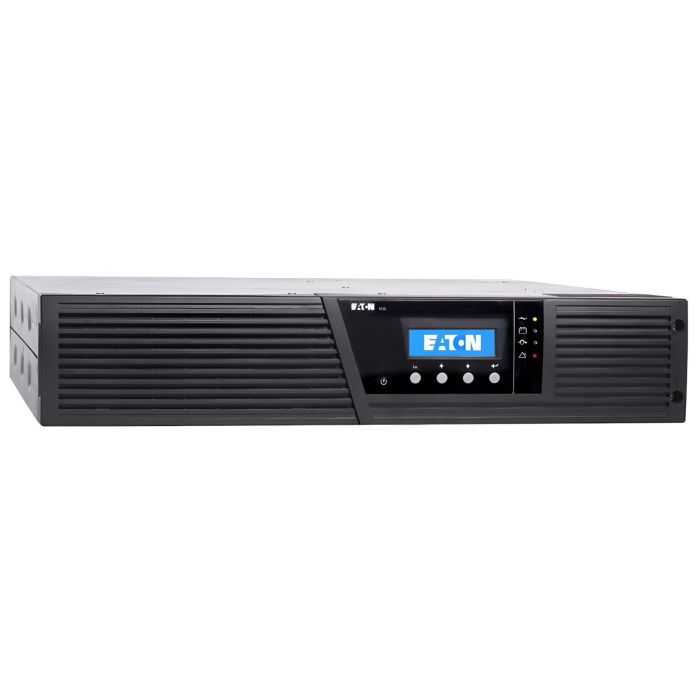

Eaton Powerware PW9130L2000R-XL2U 2000VA 1800W Double Conversion Online UPS - Refurbished

Manufacturer: Eaton Powerware
Model: Eaton Powerware 9130 2000VA 1800W Rackmount 2U, 20A, 120V
Condition: New Batteries, Refurbished UPS
Part Number: PW9130L2000R-XL2U
Maximum Output: 1800W / 2000VA
Typical Backup Time at Half Load: 26 Minutes (900W)
Typical Backup Time at Full Load: 9 Minutes (1800W)
Input: NEMA 5-20P, 120V
Output: (6) NEMA 5-20R, (1) NEMA L5-20R
Topology: Double-Conversion Online
Output Waveform: Pure Sine Wave
Form Factor: Rackmount 2U
Extended Runtime: Yes – Supports up to (4) External Battery Modules
Replacement Battery: EBP-1607
Network Management: Optional Network Card-MS / Network Card-M2
Warranty: 1 Year Full Replacement Warranty

Description: The Eaton Powerware 9130 PW9130L2000R-XL2U is a 2000VA / 1800W double-conversion online UPS designed for servers, networking equipment, telecommunications systems, and other critical IT applications. It operates at 120V with a NEMA 5-20P input and provides (6) NEMA 5-20R and (1) NEMA L5-20R output receptacles. Eaton's official rear-panel diagram confirms this exact outlet configuration for the PW9130L2000R-XL2U

Eaton Powerware 9130 2000VA 1800W PW9130L2000R-XL2U - User Manual

PW9130L2000R-XL2U - Eaton Powerware 9130 2000VA Specifications:

Main
Manufacturer	Eaton Powerware
Product Family	Eaton 9130
Model	PW9130L2000R-XL2U
Product Type	Uninterruptible Power Supply (UPS)
Rated Power	1800W / 2000VA
Power Factor	0.9
Main Input Voltage	120V AC
Main Output Voltage	120V AC
Phase	Single Phase
Topology	Online Double-Conversion
Output Waveform	Pure Sine Wave
Configuration	Rackmount
Rack Height	2U
Extended Runtime	Yes
Diagnostics	Full System Self-Test
UPS Bypass	Automatic Bypass
High-Efficiency Mode	Yes
Efficiency – High-Efficiency Mode	>95%
Efficiency – Online Mode	>86%
Cold Start	Supported
Input
Input Connection	NEMA 5-20P
Nominal Input Voltage	120V AC
Selectable Input Voltages	100V / 110V / 120V / 127V AC
Nominal Input Current	16.7A
Circuit / Breaker Rating	20A
Input Voltage Range at 100% Load	90–144V AC
Nominal Frequency	50/60Hz Auto-Sensing
Input Frequency Range	40–70Hz Before Transfer to Battery
Bypass Voltage Range	+10% / -15% of Nominal, Default
Input Cord Length	6 ft
Input Noise Filtering	MOVs for Normal and Common Mode Noise
Output
Output Capacity	2000VA / 1800W
Rated Output Power	1800W
Rated Output Apparent Power	2000VA
Nominal Output Voltage	120V AC
Selectable Output Voltages	100V / 110V / 120V / 127V AC
Output Voltage Regulation – Online	±3% of Nominal
Output Voltage Regulation – Battery	±3% of Nominal
Output Frequency	50/60Hz
Frequency Regulation	±3Hz Online
Output Waveform	Pure Sine Wave
Load Crest Factor	3:1
Output Power Factor	0.9
Total Output Receptacles	(7)
NEMA 5-20R Receptacles	(6)
NEMA L5-20R Receptacles	(1)
Rear Panel Outlet Configuration	(6) NEMA 5-20R + (1) NEMA L5-20R
Output Load Segments	(2) Controllable Load Segments
Individual Outlet Switching	No – Control is by Load Segment
Controllable Output Receptacles	Yes – Grouped into Controllable Load Segments
Load Segment Control	Independently Configurable
Programmable Load Shutdown	Yes
Programmable Load Startup	Yes
Load Sequencing	Yes
Load Shedding	Yes
Automatic Bypass	Yes
Voltage Regulation
Online Voltage Regulation	±3% of Nominal
Battery Voltage Regulation	±3% of Nominal
Selectable Nominal Voltage	100V / 110V / 120V / 127V
Frequency Independence	Yes – Online Double-Conversion Operation
Generator Compatibility	Yes
High-Efficiency Operating Mode	Selectable
Batteries & Runtime
Battery Type	Sealed Lead-Acid
Internal Battery Configuration	(6) 12V, 9Ah Batteries
Internal Battery Voltage	72VDC
Battery Management	Eaton ABM Technology
Hot-Swappable Internal Batteries	Yes
Hot-Swappable External Batteries	Yes
Replacement Battery	EBP-1607
Typical Runtime at Half Load	26 Minutes at 900W
Typical Runtime at Full Load	9 Minutes at 1800W
Internal Battery Recharge Time	Approximately 3 Hours to 90%
Cold Start / Start on Battery	Yes
Start Without Utility Power	Supported
Automatic Battery Testing	Yes
Battery Health Monitoring	Yes
Low Battery Warning	Yes
Extended Runtime	Yes
Compatible Rackmount EBM	PW9130N3000R-EBM2U
EBM Voltage	72VDC
EBM Application	Eaton 9130 Rackmount 2000–3000VA UPS Models
Maximum Number of EBMs	(4)
Battery / EBM Connector	External Three-Pole Anderson Connector
Recharge Time – Internal Batteries	3 Hours
Recharge Time – (1) EBM	9 Hours
Recharge Time – (2) EBMs	15 Hours
Recharge Time – (3) EBMs	21 Hours
Recharge Time – (4) EBMs	27 Hours
EBM Compatibility Verification	PW9130N3000R-EBM2U, 72VDC, specified for 2000–3000VA rackmount models
Maximum EBM Support	Up to (4) EBMs per UPS
Power Management Features
Online Double-Conversion	Yes
High-Efficiency Mode	Yes
Automatic Bypass	Yes
Cold Start	Yes
Load Segment Management	Yes
Number of Load Segments	(2)
Independent Load Segment Control	Yes
Load Segment On / Off Control	Yes
Delayed Load Segment Startup	Configurable
Delayed Load Segment Shutdown	Configurable
Automatic Restart	Configurable
Load Shedding	Supported
Battery Test	Automatic / Manual
Full System Self-Test	Yes
Firmware Upgradeable	Yes
Generator Compatibility	Yes
Communications & Management
Communication Bay	(1) Available Communication Bay
Network Management Card Included	No
Network Management	Optional
Compatible Network Card	Eaton Network Card-MS / Network Card-M2 / Relay Interface Card
Relay Interface Card Support	Yes
RS-232 Port	(1) DB9
RS-232 Communication Speed	1200–9600 bps
USB Port	(1)
USB Communication Speed	9600 bps
Relay Output	Yes
Relay Output Contacts	(1) Three-Pole Connector with (1) Contact Closure
Programmable Signal Inputs	(4)
Signal Input Function	Building Alarms or Other Programmable External Signals
Remote UPS Monitoring	Supported with Compatible Communication Card / Software
Remote Shutdown	Supported
UPS Status Monitoring	Yes
Load Monitoring	Yes
Battery Monitoring	Yes
Runtime Monitoring	Yes
Alarm Monitoring	Yes
Power Management Software	Eaton Power Management Software
Communication Options Verification	Communication bay, Network Card-MS, Network Card-M2, Relay Interface Card, RS-232, USB, programmable signal inputs and relay output contacts
User Interface, Alerts & Controls
User Interface	Graphical LCD
LCD Backlight	Blue
Status LEDs	(4) Status-Indicating LEDs
Display Language – English	Supported
Display Language – French	Supported
Display Language – German	Supported
Display Language – Russian	Supported
Display Language – Spanish	Supported
UPS Status Display	Yes
Load Information	Yes
Battery Information	Yes
Runtime Information	Yes
Alarm Information	Yes
Operating Mode Information	Yes
Event Log	Yes
Audible Alarm	Yes
Control Panel	LCD with Navigation / Control Buttons
Emergency Power Off & Control Terminals
Remote Emergency Power-Off	Yes
REPO Port	Yes
Emergency Shutdown Control	Supported through REPO Port
Forced Bypass Control	Supported
Relay Output Contacts	Yes
Programmable Signal Inputs	(4)
Physical
Color	Black
Form Factor	Rackmount
Rack Height	2U
Rack Compatibility	Standard 19-Inch Rack
Installation Orientation	Horizontal Rackmount Only
Height	3.4 in (86.5 mm)
Width	17.2 in (438 mm)
Depth	23.6 in (600 mm)
Net Weight	63.9 lb (29.0 kg)
Rail Kit	Rackmount Rail Hardware Supported
Rail Adjustment Range	24–30 in (61–76 cm) Front-to-Rear Rack Depth
Physical Specifications Verification	3.4 × 17.2 × 23.6 in; 63.9 lb / 29.0 kg
Environmental
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Mode Temperature	0°C to 40°C in Online Mode
Altitude Derating	Linear Derating for Altitude
Overtemperature Protection	Transfers Load to Bypass in Case of Overheating
Storage Temperature with Batteries	-20°C to +40°C (-4°F to 104°F)
Storage Temperature without Batteries	-25°C to +55°C (-13°F to 131°F)
Relative Humidity	5–90%, Non-Condensing
Audible Noise	<50 dBA
Heat Dissipation – Line	838 BTU/h
Heat Dissipation – Battery	1348 BTU/h
Installation Environment	Indoor, Temperature and Humidity Controlled
Maximum Recommended Ambient Temperature	40°C (104°F)
Surge Protection & Filtering
Power Conditioning	Continuous Online Double-Conversion
Input Noise Filtering	Metal Oxide Varistors (MOVs)
Noise Filtering Modes	Normal Mode and Common Mode
Power Failure Protection	Yes
Power Sag Protection	Yes
Power Surge Protection	Yes
Brownout Protection	Yes
Line Noise Protection	Yes
High Voltage Spike Protection	Yes
Frequency Variation Protection	Yes
Switching Transient Protection	Yes
Harmonic Distortion Protection	Yes
Power Disturbance Protection	Eaton specifies protection against these common power problems
General Features
True Online Double-Conversion	Yes
Utility Frequency Independence	Yes
Generator Compatible	Yes
Advanced Battery Management	ABM Technology
High-Efficiency Mode	Selectable
Extended Runtime Capability	Up to (4) EBMs
Firmware Upgradeable	Yes
Remote Emergency Shutdown	REPO
Standard Communication	RS-232, USB and Relay Output Contacts
Optional Connectivity Cards	Supported
Eaton 9130 Feature Verification	Eaton specifies online double-conversion, ABM, high-efficiency mode, 2U rackmount design, RS-232, USB, relay contacts, optional connectivity cards, up to four EBMs and REPO
Conformance
RoHS Compliance	Yes
Safety Markings	UL, cUL, VCCI
EMC Markings	FCC Class A, EN55022 Class A
FCC Classification	Class A Digital Device
Condition & Warranty
UPS Condition	Refurbished
Battery Condition	New Batteries
Warranty	1 Year Full Replacement Warranty
