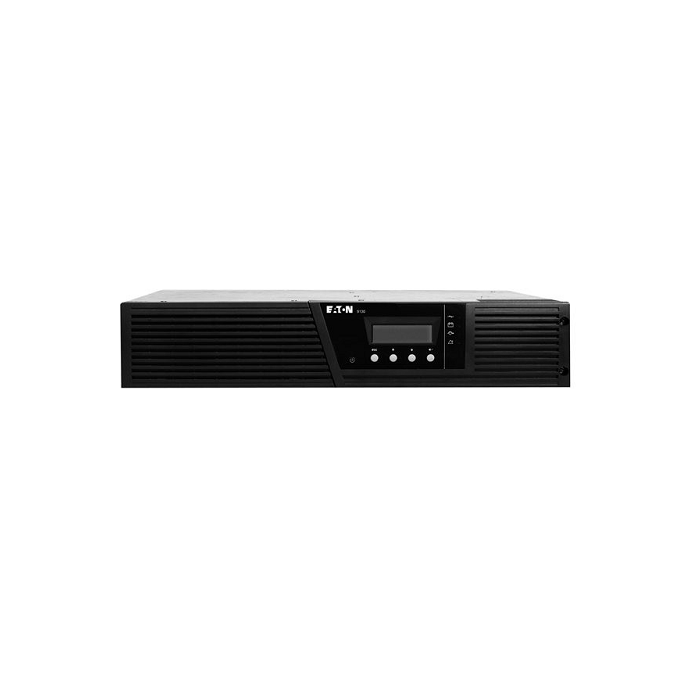

Eaton Powerware 9130 Rackmount UPS 2000VA PW9130i2000R-XL2U

General

Topology

Online, double-conversion

Catalog Number

PW9130G2000T-XL

Color

Black

Rating (VA/Watts)

2000/1800

Diagnostics

Full system self-test

Efficiency

>95% in high-efficiency mode; >86% in online mode

UPS Bypass

Automatic bypass

Dimensions (H x W x D, inches)

12.8 x 8.4 x 16.1

Weight (lbs)

76.1

Contents
(Ships with the following items)

1 ready-to-go UPS
Software Suite CD
USB Cable
User Guide
Quick Start Instructions
Cord-Retention Brackets

Electrical Input

Connection

(1) NEMA L6-20P

Input Cord

6 ft. Detachable

Input Voltage Range

160-276 Vac

Nominal Voltage

208 VAC

Frequency

50/60 Hz

Frequency Range

45–65 Hz

Nominal Current

9.6 A

Breaker Ratings

10A

Electrical Output

Output Receptacles

(4) NEMA 6-20R

(1) NEMA L6-20R

On Utility Voltage Regulation

±3% of nominal

Voltage Wave Shape (On Battery)

Sine wave

Power Factor

0.9

Frequency Regulation

±3% Hz online

Load Crest Factor

3 to 1

Load Segments

Two configurable, individually controlled receptacles

Battery

Optional Extended Battery Module

PW9130N3000T-EBM

Battery Type

96 Vdc; (8) 12V, 9 Ah

Start On Battery

Allows start of UPS without utility input

Communications

User Interface

Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish

LEDs

Four status-indicating LEDs

Communication Ports

(1) USB, (1) RS-232 serial

Communications Slot

Optional communication slots (BD Slot)

Optional Communication Cards

SNMP/Web card for direct control and monitoring in SNMP-based networks, monitoring of UPS status and meters through Web browser interface Relay card for integration to industrial environment and building management systems, remote shutdown for IBM AS/400 systems

Power Management Software

Bundled Intelligent Power Software Suite CD

Environmental & Standards

Heat Dissipation (BTU)

Line: 838, Bat: 1348

Audible Noise

<50 dB

Operating Temperature

0°C to 40°C(32°F to 104°F) in online mode, with linear derating for altitude. NOTE:Thermal protection switches load to bypass in case of overheating

Safety markings

UL, CUL, VCCI

EMC Markings

FCC Class A, EN55022 Class A

Storage Temperature

-20°C (-4°F) to +40°C (104°F) with batteries and -25°C (-13°F) to +55°C (131 °F) without batteries

Relative Humidity

5–90% non-condensing
