Description
Details

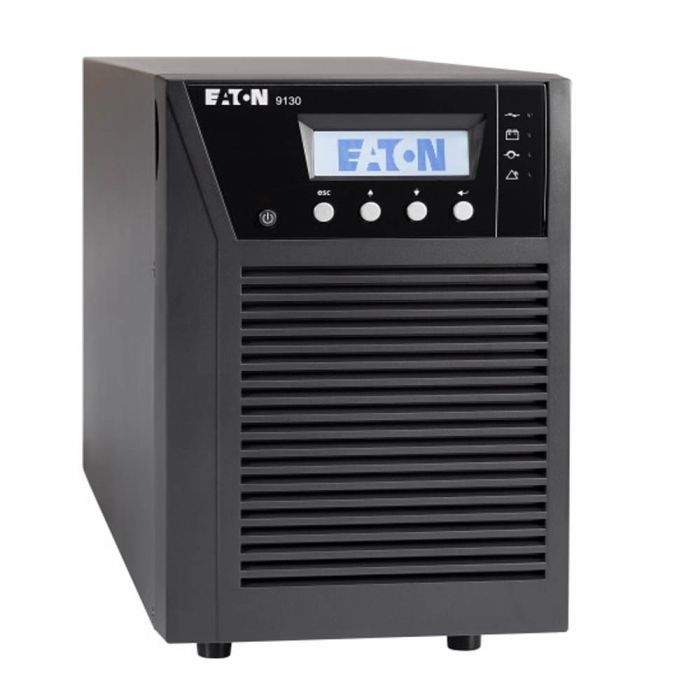

Manufacturer: Eaton Powerware 9130 Tower UPS 2000VA / 1800W
Model: PW9130L2000T-XL Refurbished
Condition: Refurbished with New Batteries
Part Number: PW9130L2000T-XL
Warranty: 1 Year Warranty included, additional warranty available
The PW9130L2000T-XL is refurbished and comes with fresh new batteries. The PW9130L2000T-XL comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
PW9130L2000T-XL Specifications:
|
General |
|
|
Topology |
Online, double-conversion |
|
Catalog Number |
PW9130L2000T-XL |
|
Color |
Black |
|
Rating (VA/Watts) |
2000/1800 |
|
Diagnostics |
Full system self-test |
|
Efficiency |
>95% in high-efficiency mode; >86% in online mode |
|
UPS Bypass |
Automatic bypass |
|
Dimensions (H x W x D, inches) |
12.8 x 8.4 x 16.1 |
|
Weight (lbs) |
76.1 |
|
Contents: |
Refurbished UPS with New batteries. No other accessories included |
|
Electrical Input |
|
|
Connection |
(1) NEMA 5-20P |
|
Input Cord |
6 ft line cord |
|
Input Voltage Range |
90-138 Vac |
|
Nominal Voltage |
120 VAC |
|
Frequency |
50/60 Hz |
|
Frequency Range |
45–65 Hz |
|
Nominal Current |
16.6 A |
|
Breaker Ratings |
20A |
|
Electrical Output |
|
|
Output Receptacles |
(4) NEMA 5-20R |
|
On Utility Voltage Regulation |
±3% of nominal |
|
On Battery Voltage Regulation |
±3% of nominal |
|
Voltage Wave Shape (On Battery) |
Sine wave |
|
Power Factor |
0.9 |
|
Frequency Regulation |
±3% Hz online |
|
Load Crest Factor |
3 to 1 |
|
Load Segments |
Two configurable, individually controlled receptacles |
|
Battery |
|
|
Optional Extended Battery Module |
PW9130N3000T-EBM |
|
Battery Type |
96 Vdc; (8) 12V, 9 Ah |
|
Start On Battery |
Allows start of UPS without utility input |
|
Communications |
|
|
User Interface |
Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish |
|
LEDs |
Four status-indicating LEDs |
|
Communication Ports |
(1) USB, (1) RS-232 serial |
|
Communications Slot |
Optional communication slots (BD Slot) |
|
Optional Communication Cards |
SNMP/Web card for direct control and monitoring in SNMP-based networks, monitoring of UPS status and meters through Web browser interface Relay card for integration to industrial environment and building management systems, remote shutdown for IBM AS/400 systems |
|
Power Management Software |
Bundled Intelligent Power Software Suite CD |
|
Environmental and Standards |
|
|
Heat Dissipation (BTU) |
Line: 838, Bat: 1348 |
|
Audible Noise |
<50 dB |
|
Operating Temperature |
0°C to 40°C(32°F to 104°F) in online mode, with linear derating for altitude. NOTE:Thermal protection switches load to bypass in case of overheating |
|
Safety markings |
UL, CUL, VCCI |
|
EMC Markings |
FCC Class A, EN55022 Class A |
|
Storage Temperature |
-20°C (-4°F) to +40°C (104°F) with batteries and -25°C (-13°F) to +55°C (131 °F) without batteries |
|
Relative Humidity |
5–90% non-condensing |
Additional Info
Additional Info
| Manufacturer | Eaton Powerware |
|---|---|
| Form Factor | Tower |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | 120V AC |
| Output (VA) | 2000VA |
| Output Voltage | 120V AC |
| PDU Total Outlets | No |
