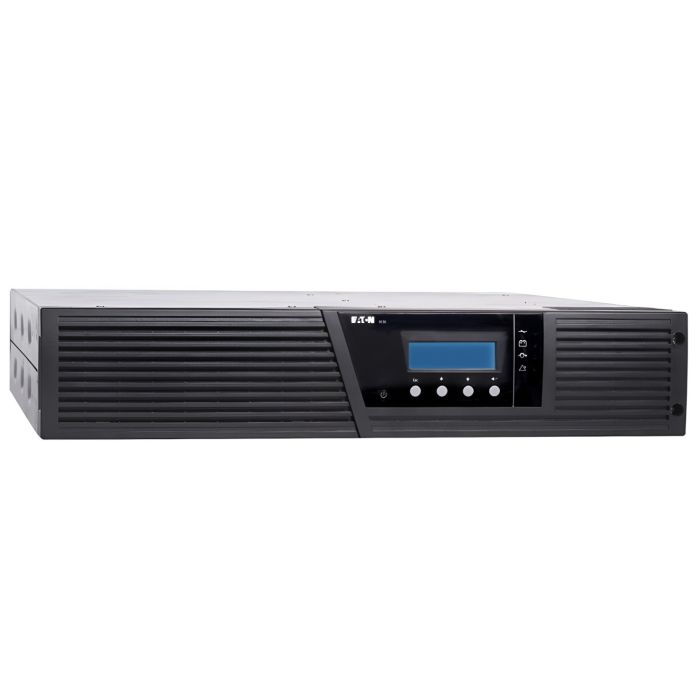

Main image Click to view image in fullscreen Eaton Powerware 9130 UPS 3000VA 2700W Rack/Tower PW9130G3000R-XL2U - Refurbished

Eaton Powerware UPS PW9130G3000R-XL2U 3kVA 2700W Double Conversion Online - Refurbished

Eaton Powerware 9130 3000VA 2700W Rackmount 2U 200-240V
Model: PW9130G3000R-XL2U
Input: NEMA L6-20P (200-240V)
Output: (1) NEMA L6-30R, (1) NEMA L6-20R, (2) NEMA 6-20R
True Online Double-Conversion UPS - Sine Wave Output
Extended Runtime - Supports up to (4) External Battery Modules
Optional Web/SNMP Network Management
Graphical LCD Status & Control Display
New Batteries, Refurbished UPS
1 Year Extended Warranty Included

Warranty

1 Year Included

2 Year + $240.00

3 Year + $420.00

Back Order

Quantity

Manufacturer: Eaton Powerware
Model: Eaton Powerware 9130 3000VA 2700W Rackmount 2U 200–240V
Condition: Refurbished UPS with New Batteries
Part Number: PW9130G3000R-XL2U
Maximum Output: 3000VA / 2700W
Typical Backup Time at Full Load: 3 Minutes (2700W)
Input: NEMA L6-20P, 200–240V
Output: (1) NEMA L6-30R, (1) NEMA L6-20R, (2) NEMA 6-20R
Topology: True Online Double-Conversion
Output Waveform: Sine Wave
Extended Runtime: Yes - Supports up to (4) External Battery Modules
External Battery Module: PW9130N3000R-EBM2U
Battery System: 72V DC, (6) 12V / 9Ah Internal Batteries
Display: Graphical LCD Status & Control Display
Form Factor: Rackmount, 2U
Warranty: 1 Year Extended Warranty; Additional Warranty Available

Description: The Eaton 9130 3000 VA Rackmount UPS (Model PW9130G3000R-XL2U) is a true double-conversion UPS with a 3000 VA capacity, providing 3 minutes of runtime at full load with standard internal batteries. Optional extended battery modules allow you to extend backup time up to 69 minutes at full load. This global model is designed for 200-240V input, featuring a sine-wave output for reliable protection of sensitive equipment. It includes a NEMA L6-20P line cord and offers output with (1) L6-30R, (1) L6-20R, and (2) 6-20 receptacles. Additionally, the high-efficiency operating mode provides over 95% efficiency, reducing operational costs.

Eaton Powerware 9130 Rack/Tower UPS 3000VA 2700W - User Manual

PW9130G3000R-XL2U - Eaton Powerware 9130 Specifications:

Main
Manufacturer	Eaton Powerware
Product Series	Powerware 9130
Model	PW9130G3000R-XL2U
Product Type	Uninterruptible Power Supply (UPS)
Power Capacity	3000VA / 2700W
Output Power Factor	0.9
UPS Topology	True Online Double-Conversion
Configuration	Rackmount
Rack Height	2U
Nominal Voltage	230V AC
Voltage Class	200–240V AC
Output Waveform	Sine Wave
Diagnostics	Full System Self-Test
High Efficiency Mode	Selectable
Generator Compatibility	Yes
Extended Runtime	Yes

Input
Nominal Input Voltage	230V AC
Input Voltage Range	160–294V AC
Input Frequency	50/60 Hz
Frequency Range	±3 Hz
Input Connection	NEMA L6-20P
Input Cord Length	6 ft (1.8 m)
Input Phase	Single-Phase
Generator Compatibility	Yes

Output
Output Capacity	3000VA
Output Power	2700W
Output Power Factor	0.9
Configurable Output Voltage	200 / 208 / 220 / 230 / 240V AC
Output Receptacles	(1) NEMA L6-30R, (1) NEMA L6-20R, (2) NEMA 6-20R
Output Waveform	Sine Wave
Voltage Regulation - Normal Mode	±2%
Voltage Regulation - Battery Mode	Nominal output voltage ±3%
Output Frequency	50/60 Hz
Frequency Regulation - Normal Mode	Synchronizes with utility within ±3 Hz of nominal line frequency
Frequency Regulation - Battery Mode	±0.1 Hz of auto-selected nominal frequency
Harmonic Distortion	<3% THD with linear load; <5% THD with non-linear load
Load Crest Factor	3:1
Transfer Time - Online Mode	0 ms (No Break)
Transfer Time - High Efficiency Mode	5 ms Maximum
Overload Protection	Electronic overload protection with automatic bypass / shutdown according to operating mode and overload level

Operating Modes & Efficiency
Normal Operation	True Online Double-Conversion
Battery Operation	Online inverter operation with sine wave output
High Efficiency Mode	Selectable
Bypass	Internal Static Bypass
Frequency Converter Operation	Supported
Online Transfer Time	0 ms
High Efficiency Transfer Time	5 ms Maximum
High Efficiency	Greater than 95% in High Efficiency Mode

Batteries & Runtime
Battery Type	Sealed, Maintenance-Free, Valve-Regulated Lead-Acid (VRLA)
Internal Battery Voltage	72V DC
Internal Battery Configuration	(6) 12V / 9Ah Batteries
Battery Management	Eaton ABM Technology
Battery Replacement	User-Replaceable Batteries
Runtime at Full Load - Internal Batteries	Approximately 3 Minutes
Runtime at Full Load + 1 EBM	Approximately 18 Minutes
Runtime at Full Load + 2 EBMs	Approximately 34 Minutes
Runtime at Full Load + 3 EBMs	Approximately 53 Minutes
Runtime at Full Load + 4 EBMs	Approximately 69 Minutes
Extended Runtime Capability	Yes
Compatible External Battery Module	PW9130N3000R-EBM2U
EBM Voltage	72V DC
EBM Battery Configuration	(2 × 6) 12V / 9Ah Batteries
Maximum Number of External Battery Modules	4
Start on Battery	Yes
Battery Test	Automatic and Manual Battery Testing
Battery Management Function	ABM technology optimizes recharge time, helps extend battery service life and provides advance warning before battery end-of-life
Runtime Note	Runtime values are approximate and vary depending on load configuration and battery charge

Extended Battery Module Compatibility
Extended Runtime Support	Yes
Compatible Rackmount EBM	PW9130N3000R-EBM2U
EBM Configuration	Rackmount
EBM Voltage	72V DC
EBM Supported UPS Capacity	2000–3000VA Rackmount Models
Maximum EBMs Supported	4
Full-Load Runtime with Internal Batteries	Approximately 3 Minutes
Full-Load Runtime with 1 EBM	Approximately 18 Minutes
Full-Load Runtime with 2 EBMs	Approximately 34 Minutes
Full-Load Runtime with 3 EBMs	Approximately 53 Minutes
Full-Load Runtime with 4 EBMs	Approximately 69 Minutes

Communications & Management
Local Management	USB and RS-232 communication
Communication Bay	(1) Independent Communication Bay for Optional Connectivity Card
Network Management	Optional
Compatible Network Management Card	ConnectUPS-BD Web/SNMP Card
Network Management Functions	SNMP and HTTP network monitoring through optional ConnectUPS-BD
Web Management	Web browser UPS monitoring with optional ConnectUPS-BD
Ethernet Connectivity	10/100Base-T with optional ConnectUPS-BD
Environmental Monitoring	Optional Powerware Environmental Monitoring Probe supported through ConnectUPS-BD for temperature, humidity, smoke alarm and security monitoring
USB Interface	USB, 9600 bps
Serial Interface	RS-232 DB-9, 1200–9600 bps
Relay Output	Programmable relay output contacts for remote UPS status and alarm indication
Programmable Signal Inputs	(4) programmable signal inputs for building alarms and remote control functions
Optional Relay Interface	Relay Interface Card for additional isolated Form-C dry-contact outputs
Remote Shutdown	Supported through programmable signal input
Emergency Power Off	Remote Emergency Power-Off (REPO)
Power Management Software	Supports compatible Eaton power management software for UPS monitoring and orderly system shutdown
Firmware Management	UPS firmware can be upgraded

User Interface, Alerts & Controls
User Interface	Graphical LCD with Blue Backlight
LCD Languages	English, French, German, Russian and Spanish
LCD Monitoring	Displays load, battery condition, alarms, input/output measurements and UPS operating status
LCD Status & Configuration	Provides access to operating mode, battery, bypass, load segment, communication and user settings
LED Indicators	Four Status-Indicating LEDs
Battery Test Control	Battery test can be initiated through the UPS control panel
Relay & Signal Configuration	Programmable relay outputs and signal inputs can be configured through front-panel settings
Alarm Management	UPS operating and fault alarms with user acknowledgement / control

Power Management Features
True Online Protection	Continuous double-conversion power protection
ABM Battery Management	Optimizes charging and helps extend battery service life
High Efficiency Mode	Selectable energy-saving operating mode
Internal Static Bypass	Yes
Load Segment Control	Supports controlled load segments for shutdown and startup management
Extended Runtime	Supports up to (4) external battery modules
Automatic Battery Testing	Yes
Manual Battery Testing	Yes
Start on Battery	Yes
Remote Shutdown	Supported
Remote Emergency Power-Off	Supported through REPO
Frequency Converter Mode	Supported
Generator Operation	Compatible
Firmware Upgrade	Supported

Physical
Form Factor	Rackmount
Rack Height	2U
Rack Compatibility	Standard 19-Inch Rack
Dimensions (H × W × D)	3.4 × 17.3 × 23.6 in
Height	3.4 in
Width	17.3 in
Depth	23.6 in
Weight	Approximately 65 lb
Rail Kit	Not Included

Environmental
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 50°C (-4°F to 122°F)
Relative Humidity	0–95%, Non-Condensing
Audible Noise	Approximately 55 dBA
Heat Dissipation	Approximately 282 BTU/hr

Protection & Power Quality
Power Failure Protection	Yes
Voltage Sag Protection	Yes
Surge Protection	Yes
Brownout Protection	Yes
Line Noise Protection	Yes
High-Voltage Spike Protection	Yes
Frequency Variation Protection	Yes
Switching Transient Protection	Yes
Harmonic Distortion Protection	Yes
Generator Compatibility	Yes

Conformance
Safety Markings	UL, cUL
EMC Markings	FCC Class A, CE
RoHS Compliance	Yes

Condition & Warranty
Condition	Refurbished UPS with New Batteries
Warranty	1 Year Extended Warranty
Additional Warranty	Available
