Main image Click to view image in fullscreen Eaton SmartPro SMART3000RMXL2U 3000VA 3kW RM 2U 120V 30A WEBCARDLXE Installed - Refurbished

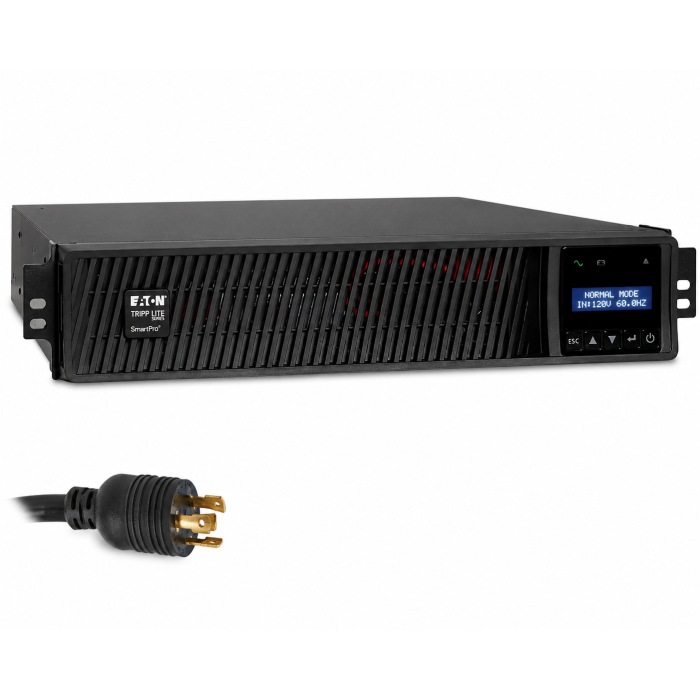

Eaton SmartPro SMART3000RMXL2U 3000VA 3kW RM 2U 120V 30A WEBCARDLXE Installed - Refurbished

Eaton Tripp Lite series SmartPro 3000VA 3000W RM 2U
Model: SMART3000RMXL2U
Input: NEMA L5-30P (120V - 30A)
Output: (8) NEMA 5-20R, (1) NEMA L5-30R

Line-Interactive UPS - Sine Wave Output
LCD Display with AVR Protection
WEBCARDLXE Network Management Card Pre-Installed
Hot-Swappable Batteries
Supports BP72VRM2U External Battery Module
New Batteries, Refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $300.00

3 Year + $525.00

In stock

Quantity

Manufacturer: Eaton
Model: Eaton Tripp Lite series SmartPro UPS 3000VA 3000W, RM, 2U, 120V
Condition: New Batteries, Befurbished UPS
Part Number: SMART3000RMXL2U
Maximum output: 3000W / 3000VA
Power Factor: 1.0
Topology: Line-Interactive
Input: NEMA L5-30P, 120V
Output: NEMA 5-20R, NEMA L5-30R
Output Waveform: Sine wave
Extended Runtime: Yes – BP72VRM2U external battery pack compatible
Network Management: WEBCARDLXE Installed

Typical backup time at half load: 9 minutes (1500 Watts)
Typical backup time at full load: 3 minutes (3000 Watts)
Form Factor: Rackmount 2U
Warranty: 1 Year Full Replacement Warranty

Description: The Eaton Tripp Lite series SMART3000RMXL2U is a 3000VA / 3000W Line-Interactive UPS designed for servers, network equipment, and critical IT systems. It features sine wave output, Automatic Voltage Regulation (AVR), an LCD display, a 2U rackmount design, and expandable runtime with the optional BP72VRM2U external battery pack. Network management is supported with the optional WEBCARDLXE. New batteries, refurbished UPS with a 1 year full replacement warranty.

Eaton Tripp Lite SmartPro 3000VA 2880W RM 120V SMART3000RMXL2U - User Manual

SMART3000RMXL2U - Eaton Tripp Lite series SmartPro UPS Specifications:

General
Manufacturer	Eaton
Product Series	Eaton Tripp Lite series SmartPro
Model / Part Number	SMART3000RMXL2U
Product Type	UPS
Rated Power	3000VA / 3000W
Output Power Factor	1.0
Topology	Line-Interactive
Output Waveform	Sine Wave
Form Factor	Rackmount
Rack Height	2U
Input Phase	Single-Phase
User Interface	LCD Display
Rack Mounting Kit	Yes
Condition	New batteries, refurbished UPS
Warranty	1 Year Full Replacement Warranty

Input
Nominal Input Voltage	120V AC
Supported Input Voltage Range	80–151V
Adjustable Input Voltage Range	70–153V
Input Connection	NEMA L5-30P
Recommended Electrical Service	30A / 120V
Input Cord Length	10 ft
Input Power Factor	1.0
Input Phase	Single-Phase
Automatic Voltage Regulation (AVR)	Yes

Output
Output Capacity	3000VA
Output Power	3000W
Output Power Factor	1.0
Nominal Output Voltage	120V Default
Configurable Output Voltages	100V / 110V / 120V / 125V
Output Receptacle Types	NEMA 5-20R / NEMA L5-30R
Maximum Output Current	24A
Output Waveform	Sine Wave
Topology	Line-Interactive
Load Management	Yes
Switchable Load Banks	Two Switchable Load Banks

Batteries & Runtime
Battery Type	Valve Regulated Lead Acid (VRLA)
Typical Backup Time at Half Load	Approx. 10 Minutes @ 1500W
Typical Backup Time at Full Load	Approx. 3 Minutes @ 3000W
Extended Runtime Capability	Yes
Compatible External Battery Module	BP72VRM2U
External Battery Module Support	Yes
Battery Replacement – Pre-July 2023	RBC58-2U
Battery Replacement – Post-July 2023	744-A3122
Battery Replacement	User Replaceable

Voltage Regulation & Protection
Automatic Voltage Regulation	Yes
Brownout Protection	Yes
Overvoltage Protection	Yes
Blackout Protection	Yes
Line Noise Filtering	Yes
Surge Protection	Yes
AC Surge Suppression Rating	380 Joules

User Interface, Alerts & Controls
Display Type	LCD Display
UPS Status Monitoring	Yes
Input Voltage Monitoring	Yes
Output Voltage Monitoring	Yes
Load Monitoring	Yes
Battery Status Monitoring	Yes
Operating Status Monitoring	Yes
Local Configuration	Supported

Communications & Management – WEBCARDLXE Pre-Installed
Network Management Card	WEBCARDLXE
Network Card Installation	Pre-Installed
Network Management	Yes
Remote UPS Monitoring	Yes
Remote UPS Management	Yes
Remote Reboot Capability	Yes
Network Interface	RJ45 Ethernet
Network Speed	10 / 100 Mbps Fast Ethernet
Web Management	Yes
Web Interface	Mobile-Friendly HTML5 Interface
Java Requirement	No
SNMP Management	Yes
Web Browser Management	Yes
SSH Access	Yes
Telnet Access	Yes
Email Notifications	Yes
SNMP Alerts	Yes
User-Configurable Alerts	Yes
Remote Equipment Reboot	Supported
Ethernet Connector	RJ45 Female
Configuration Port	Micro-USB B
Environmental Sensor Port	USB Type-A
Environmental Monitoring	Supported with Optional EnviroSense2 Sensors
Temperature Monitoring	Supported with Compatible EnviroSense2 Sensor
Dry Contact Monitoring	Supported with Compatible EnviroSense2 Modules
Network Card Status LEDs	Link and Status LEDs
Network Interface Reset	Yes
Network Factory Reset	Yes
Local Terminal Configuration	Supported via Micro-USB
Network Card Model	WEBCARDLXE
WEBCARDLX Compatibility	No – WEBCARDLX is Not Compatible with this UPS
WEBCARDLXE TAA Compliance	Yes
WEBCARDLXE RoHS Compliance	RoHS3
WEBCARDLXE CE Marked	Yes
WEBCARDLXE FCC Compliance	FCC Class B
WEBCARDLXE REACH Compliance	Yes
WEBCARDLXE Certifications	ICES, EN 55032, IEC/EN 63000, EN 55035
UPS USB Port	Yes
UPS DB9 Serial Port	Yes
Emergency Power Off (EPO)	Supported

Physical
Height	3.4 in
Width	17.2 in
Depth	23.7 in
Weight	74.5 lb
Rack Height	2U
Primary Form Factor	Rackmount
Additional Installation Options	Tower / Wall-Mount
Rack Mounting Hardware	Supported

Environmental
Noise Level	50 dBA Maximum at 1 Meter, Front Side
Relative Humidity	20–95%, Non-Condensing
Cooling	Fan Cooled

Compliance & Certifications
UPS Certification	UL 1778
UPS Certification	CSA Certified
UPS Certification	NOM
UPS Compliance	FCC Class A
UPS RoHS Compliance	Yes

Condition & Warranty
Battery Condition	New Batteries
UPS Condition	Refurbished UPS
Network Card	WEBCARDLXE Pre-Installed
Warranty	1 Year Full Replacement Warranty
