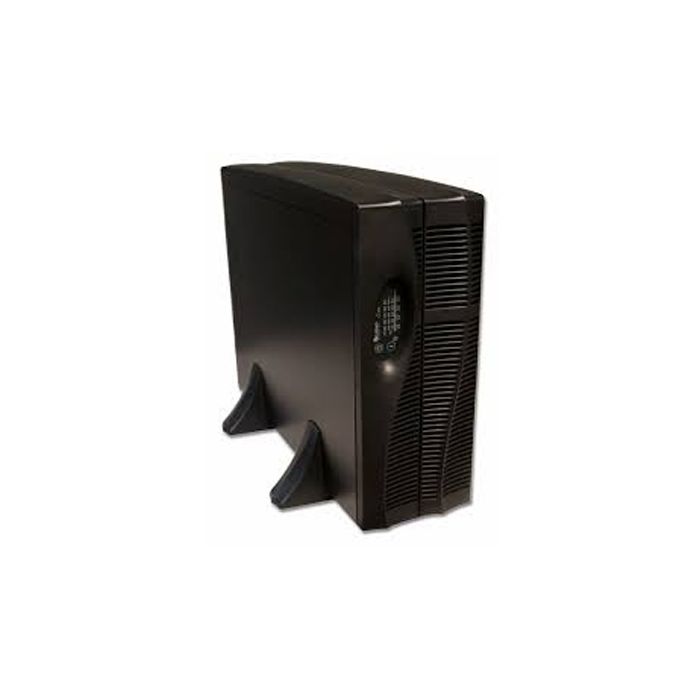

Liebert GXT2 6000VA 4200W RM 4U 208V/120V Split Phase GXT2-6000RT208 - Refurbished

Manufacturer: Liebert
Model: GXT2-6000RT208 Liebert Online Double Conversion Rackmount 4U UPS - 120V / 208V - Split phase
Condition: Refurbished with New Batteries
Part Number: GXT2-6000RT208
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The GXT2-6000RT208 comes refurbished with new batteries. The Liebert UPS comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

• True On Line (Double Conversion) Technology
• User replaceable batteries without removing GXT2 from rack
• Wide input voltage window allows UPS support without going to battery, extending systems availability
• Built in Surge Suppression
• SNMPE3 compatible
• External plug and play, 2U battery cabinets available
• Configurable as rack or tower Specifications



GXT2-6000RT208 Specifications:

Output

• Capacity 6000VA (4200 Watts)
• Nominal Voltage 120/208 VAC
• L1-L2 Factory default output phase angle: 120 Degrees
• Allowable output phase angle: 120, 180 or 240 Degrees, auto-sending on initial application of AC
• Factory default L1-N, L2-N VAC: 120 VAC
• User configurable L1-N, L2-N VAC: 100, 110, 115, 120, 127 VAC +/- 3%
• Output connections: Frequency 50/60 Hz
  • (1) L6-30R
  • (1) L6-30R
  • (4) 5-20R (Standard 120V 3-prong receptacles will also accept 20Amp straight plug also known as “T” plug)
• Waveform Sinewave

Input

• Input Voltage 120/208 VAC at 120 degrees
• Frequency 50/60 Hz
• L1-L2 Input Phase Angle 120 Degrees
• Allowable Input Phase Angle 120, 180, 240 degrees. Auto sensing on application of AC.
• Factory default L1-N, L2-N VAC: 120 VAC Nominal
• User configurable L1-N, L2-N VAC: 100, 110, 115, 120, 127 VAC
• Input power connection: L14-30P

Batteries

• Type Valve-regulated non-spillable, flame-retardant, sealed lead-acid batteries
• Runtime at full load (4200 Watts) 5 minutes
• Runtime at 75% load (3150 Watts) 8 minutes
• Runtime at 50% load (2100 Watts) 14 minutes
• Runtime at 25% load (1050 Watts) 32 minutes
• Runtime at minimal load (420 Watts) 75 minutes
• Replacement battery kit URBC120912
• Recharge Time 6 hours to 90% capacity
• External Battery Cabinet for extended runtime capability GXT2-144VBATT

Physical

• Width 16.9 inches (430 mm)
• Depth 24.2 inches (615 mm)
• Height 6.9 inches (4U) (176 mm)
• Weight 146 lbs. (66.1 Kg)
• Audible Noise <50 dBA at 1 meter from front or sides

Copmpliance

• UL 1778
• c-UL Listed
• FCC Part 15 Subpart B Class A
• IEEE/ANSI C62.41 Category A & B
• ISTA Procedure 1A
