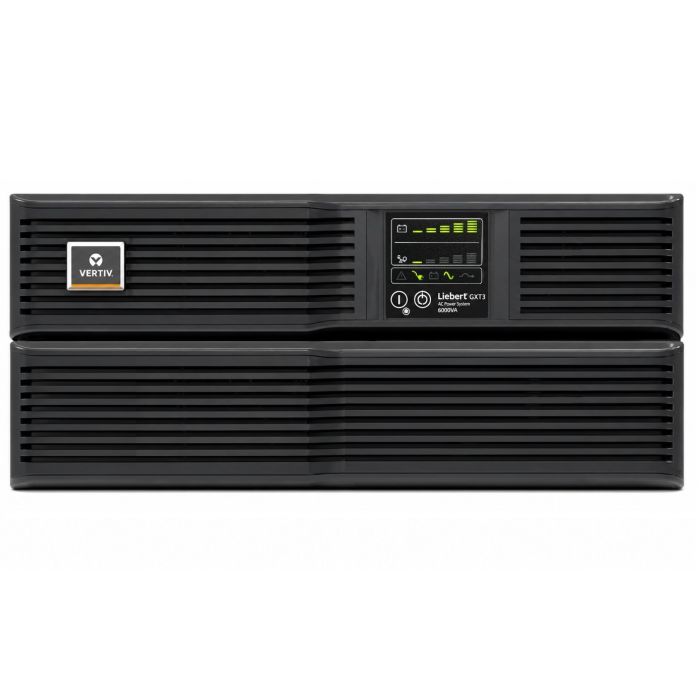

Liebert UPS GXT3-5000RT208 5000VA 4000W 120/208 30A (PD2-003)PDU Pre-Install -Refurbished
Liebert Online GXT3 5000VA 4000W Rackmount UPS, 4U, 120/208V
Model: GXT3-5000RT208
Input: NEMA L14-30P (120/208V Split Phase)
Output Connections: (4) NEMA 5-20R, (2) NEMA L6-30R (PD2-003 PDU Pre-Installed)
Maximum Output Capacity: 5000VA / 4000W
Topology: True Online Double-Conversion UPS
Waveform Type: Pure Sine Wave Output
Internal Automatic Bypass
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
Â
$1,999.99
In stock
Manufacturer: Vertiv / Liebert
Model: Liebert GXT3 5000VA 4000W, Rack/Tower 4U, 120/208V
Condition: New Batteries, Refurbished UPS
Part Number: GXT3-5000RT208
Maximum Output: 4000W / 5000VA
Input: NEMA L14-30P, 120/208V, Single Phase, 30A
Output: (4) NEMA 5-20R, (2) NEMA L6-30R
Output: 120/208V, Single Phase
Topology: Online Double-Conversion
Waveform: Pure Sine Wave
Battery Type: Valve-Regulated Lead-Acid (VRLA)
Typical Backup Time at Half Load: 16 minutes (2000 Watts)
Typical Backup Time at Full Load: 5 minutes (4000 Watts)
Form Factor: Rack/Tower, 4U
External Battery Support: Yes
Warranty: 1 Year Full Replacement WarrantyÂ
Description: The Liebert GXT3-5000RT208 is a true online double-conversion UPS that delivers 5000VA / 4000W of continuous pure sine wave power protection for servers, network switches, storage systems, VoIP equipment, and other mission-critical applications. Designed for enterprise and data center environments, it features zero transfer time, internal automatic bypass, Emergency Power Off (EPO), USB communications, a Liebert IntelliSlot® for an optional network management card, and a front LED display for real-time system monitoring. This configuration includes a factory-installed PD2-003 Power Distribution Unit with a NEMA L14-30P input and (4) NEMA 5-20R plus (2) NEMA L6-30R output receptacles. Professionally refurbished with new batteries and includes a 1 Year Full Replacement Warranty.
Â
Liebert GXT3 5000VA 4000W RM 4U GXT3-5000RT208 120/208 30A - User Manual
Â
GXT3-5000RT208 - Liebert GXT3 Online UPS Specifications:
| Main | Â |
| Main Input Voltage | 120/208V |
| Main Output Voltage | 100 / 110 / 115 / 120 / 127V |
| Rated Power in W | 4000W |
| Rated Power in VA | 5000VA |
| UPS Topology | True Online Double-Conversion |
| Waveform Type | Pure Sine Wave |
| Form Factor | Rackmount |
| Rack Height | 4U |
| Efficiency | Up to 92% |
| Transfer Time | 0 ms |
| Input Connection Type | NEMA L14-30P (PD2-003) |
| Output Connections | (4) NEMA 5-20R, (2) NEMA L6-30R |
| Power Distribution Unit | Factory-Installed PD2-003 |
| Automatic Bypass | Internal Automatic Bypass |
| Maintenance Bypass | Integrated in PD2-003 |
| Cold Start | Yes |
| Emergency Power Off (EPO) | Yes |
| Display Type | Front LED Status Display |
| Expansion Slot | 1 × Liebert IntelliSlot® |
| Condition | Refurbished with New Batteries |
| Warranty | 1 Year Full Replacement Warranty |
| Â | Â |
| Input | Â |
| Nominal Input Voltage | 120/208V |
| Input Connection Type | NEMA L14-30P |
| Input Frequency | 40–70 Hz Auto-Sensing |
| Frequency | 50/60 Hz |
| Input Power Factor | Active Power Factor Correction |
| Input Protection | Circuit Breaker |
| Â | Â |
| Output | Â |
| Nominal Output Voltage | 100 / 110 / 115 / 120 / 127V |
| Maximum Output Power | 4000W |
| Maximum Output Capacity | 5000VA |
| Output Frequency | 50/60 Hz |
| Voltage Regulation | ±2% |
| Waveform | Pure Sine Wave |
| Transfer Time | 0 ms |
| Output Connections | (4) NEMA 5-20R, (2) NEMA L6-30R |
| Output Protection | Circuit Breakers |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Type | Valve-Regulated Sealed Lead Acid (VRLA) |
| Battery Technology | Maintenance-Free Lead Acid |
| Battery Quantity | 12 |
| Battery Voltage | 12V |
| Recharge Time | Approximately 6 Hours |
| Typical Runtime at Half Load | 16 Minutes (2000W) |
| Typical Runtime at Full Load | 5 Minutes (4000W) |
| External Battery Cabinets | Supported |
| Battery Replacement | User Replaceable |
| Automatic Battery Test | Yes |
| Cold Start Capability | Yes |
| Â | Â |
| Communications & Management | Â |
| User Interface | Front LED Status Display |
| Communication Port | USB Type-B |
| USB Connector | 4-Pin USB Type-B |
| Expansion Slot | 1 × Liebert IntelliSlot® |
| Remote Management | Optional IntelliSlot SNMP/Web Card |
| Power Management Software | Liebert MultiLink® |
| Remote Shutdown | Supported |
| Remote Monitoring | Supported |
| Event Logging | Supported |
| Battery Monitoring | Yes |
| Alarm Notifications | Audible & LED Indicators |
| Emergency Power Off | Yes |
| Â | Â |
| Physical | Â |
| Height | 6.8 in (173 mm) |
| Width | 16.9 in (429 mm) |
| Depth | 26.1 in (663 mm) |
| Net Weight | 56.2 lb (25.5 kg) |
| Rack Height | 4U |
| Rack Width | 19 in |
| Color | Black |
| Installation | Rackmount |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Operating Humidity | 0–95% Non-Condensing |
| Operating Altitude | Up to 10,000 ft (3000 m) |
| Audible Noise | Less than 55 dBA |
| Â | Â |
| Conformance | Â |
| Safety Standards | UL 1778, cUL |
| EMC Compliance | FCC Part 15 Class A |
| Surge Standard | ANSI C62.41 |
| Environmental Compliance | RoHS |
