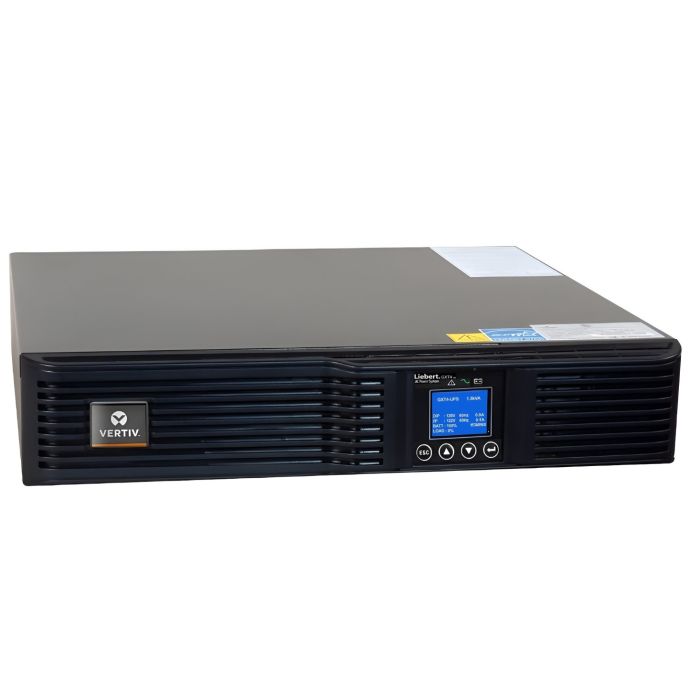

Liebert GXT4-1500RT120 UPS 1500VA 1350W RM 2U 120V, IS-UNITY-DP Pre-Install - Refurb

Manufacturer: Liebert
Model: Liebert GXT4-1500RT120NC 1500VA 1350W Online UPS, RM 2U, 120V 15A, IS-UNITY-DP Pre-Installed
Condition: New Batteries, Refurbished UPS
Part Number: GXT4-1500RT120NC
Maximum Output: 1350W / 1500VA
Typical Backup Time at Half Load: 16 Minutes (675W)
Typical Backup Time at Full Load: 5 Minutes (1350W)
Input: NEMA 5-15P, 120V AC, 15A
Output: (6) NEMA 5-15R
Topology: True Online Double-Conversion
Output Waveform: Pure Sine Wave
Network Management: Liebert IntelliSlot IS-UNITY-DP Pre-Installed
Warranty: 1 Year Full Replacement Warranty

Liebert GXT4 1500VA 1350W Rackmount 2U GXT4-1500RT120NC - User's Manual

GXT4-1500RT120-NC - Liebert GXT4 1500VA Specifications:

Key Features
UPS Topology	Online Double-Conversion
Form Factor	Rackmount / Tower
Rack Height	2U
Capacity	1500VA / 1350W
Input Voltage	120V
Output Voltage	120V
Waveform Type	Pure Sine Wave
Input Plug	NEMA 5-15P
Output Receptacles	(6) NEMA 5-15R
LCD Display	Multifunction LCD
Network Management	IS-UNITY-DP Network Card Pre-Installed
Product Family	Liebert GXT4
Input
Nominal Input Voltage	120V
Input Voltage Range	60V - 140V
Input Frequency	40-70 Hz, Auto-Sensing
Input Connection Type	NEMA 5-15P
Input Phase	Single-Phase
Input Circuit Breaker	15A
Input Cord Length	10 ft (3.04 m)
Output
Rated Output Capacity	1500VA
Rated Output Power	1350W
Maximum Configurable Power	1500VA
Maximum Configurable Power (Watts)	1350W
Output Voltage	120V
Output Frequency	60 Hz Nominal
Waveform Type	Pure Sine Wave
Output Voltage Distortion	Less Than 3% at Full Load
Output Receptacles	(6) NEMA 5-15R
Output Voltage Regulation	±3%
Automatic Bypass	Yes
Programmable Outlet Groups	2
Active ECO Mode	Yes
Frequency Converter Mode	Yes
Batteries & Runtime
Battery Type	Maintenance-Free Sealed Lead-Acid
Internal Battery Configuration	(4) 12V, 9Ah Batteries
Replacement Battery Kit	GXT4-9A48BATKIT
Typical Runtime @ Half Load	16 Minutes (675W)
Typical Runtime @ Full Load	5 Minutes (1350W)
Typical Recharge Time	Approximately 6 Hours to 90% Capacity
Hot-Swappable Batteries	Yes
Extendable Runtime	Yes
External Battery Cabinet	GXT4-48VBATT (Optional)
Maximum External Battery Cabinets	Up to 6
Battery Management	Intelligent Battery Management
Communications & Management
Control Panel	Multifunction LCD Status and Control Console
LCD Display	Input Voltage
	Output Voltage
	Battery Status
	Load Status
	Operating Mode
	Alarm and Fault Information
USB Port	Yes
Serial Port	RS-232
IntelliSlot	1 (Occupied by IS-UNITY-DP)
Network Management Card	Liebert IntelliSlot IS-UNITY-DP Pre-Installed
Network Management Card Included	Yes
Network Monitoring	Supported via IS-UNITY-DP
Web-Based Management	Supported via IS-UNITY-DP
SNMP Management	Supported via IS-UNITY-DP
Modbus TCP Communication	Supported via IS-UNITY-DP
Remote Monitoring	Supported
Remote Shutdown	Supported
Dry Contact Communications	Yes
Alarm Notifications	On Battery
	Low Battery
	UPS Fault
	Overload
Audible Alarms	Yes
Surge Protection & Filtering
Power Conditioning	Online Double-Conversion
Output Voltage Distortion	Less Than 3% at Full Load
Automatic Bypass	Yes
Surge Protection	Yes
Physical
Color	Black
Height	3.3 in (83 mm)
Width	16.9 in (429 mm)
Depth	19.6 in (497 mm)
Net Weight	54.67 lbs (24.79 kg)
Shipping Weight	69.7 lbs (31.61 kg)
Rack Height	2U
Mounting Mode	Rackmount / Tower
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 122°F (-15°C to 50°C)
Operating Humidity	0-95%, Non-Condensing
Operating Altitude	Up to 10,000 ft (3,000 m)
Storage Altitude	Up to 50,000 ft (15,000 m)
Acoustic Noise	Less Than 45 dBA at Rear
	Less Than 46 dBA at Front and Side
Conformance
Product Certifications	UL 1778
	c-UL Listed
EMI/RFI Compliance	FCC Class A
Condition	Refurbished UPS with New Batteries
Included Equipment	(1) Liebert GXT4-1500RT120 UPS
Pre-Installed Network Card	(1) Liebert IS-UNITY-DP
Additional Accessories	None Included
Warranty	1 Year Full Replacement Warranty Included
