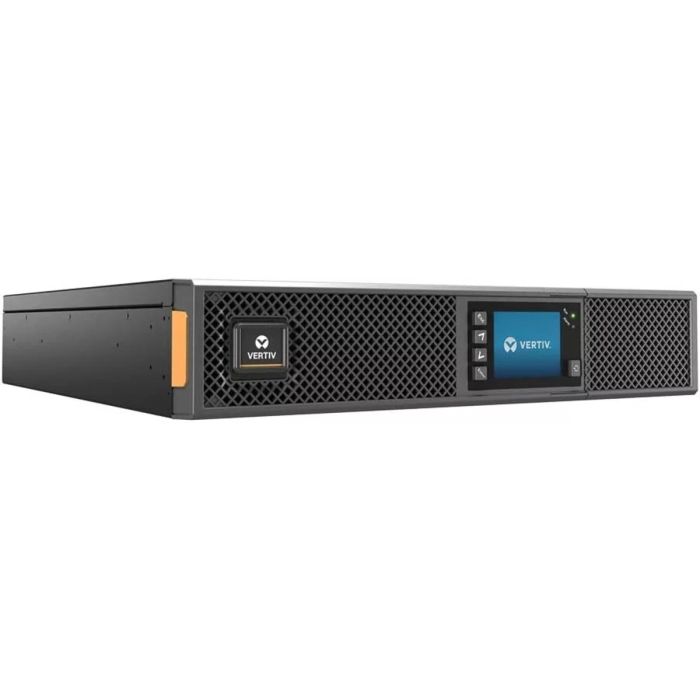

Vertiv Liebert UPS 3000VA 2700W Double Conversion 30A 120V GXT5-3000LVRT2UXL -Refurbished

Liebert Vertiv GXT5 3000VA 2700W RM 2U 120V 30A
Model: GXT5-3000LVRT2UXL
Input: NEMA L5-30P
Output: (1) NEMA L5-30R, (6) NEMA 5-20R
Double Conversion Online UPS - Sinewave Output

LCD Display with IntelliSlot Communication Support
New batteries, Refurbished UPS
1 Year Warranty Included

In stock

Manufacturer: Liebert
Model: Liebert GXT5 3000VA 2700W, RM, 2U, 120V Online Double Conversion UPS
Condition: New batteries, refurbished UPS
Part Number: GXT5-3000LVRT2UXL
Maximum output: 2700W / 3000VA
Typical backup time at half load: 9 minutes (1350 Watts)
Typical backup time at full load: 3 minutes (2700 Watts)
Warranty: 1 year full replacement warranty

Description: The Liebert GXT5-3000LVRT2UXL is a high-performance online double conversion UPS designed to provide reliable 120V power protection for servers, networking equipment, and critical IT infrastructure. Delivering 3000VA / 2700W of pure sine wave output, it features a rackmount 2U form factor with flexible rack/tower deployment options. The unit includes a NEMA L5-30P input connection and multiple output receptacles, including (1) L5-30R and (6) 5-15/20R outlets, with programmable load segments for advanced power management. It offers up to 98% efficiency in ECO mode, a color LCD interface with gravity sensing orientation, USB/RS232 communications, optional SNMP network management support, and hot-swappable VRLA batteries. Refurbished with new batteries and backed by a 1-year warranty, the GXT5-3000LVRT2UXL is ideal for enterprise and edge computing environments requiring dependable online power protection.






Liebert GXT5 3000VA 2700W RM 2U GXT5-3000LVRT2UXL User's Manual


GXT5-3000LVRT2UXL - Liebert GXT5 3000VA Specifications:



Product Overview:
Power Rating 3000VA / 2700W
UPS Topology Online Double Conversion
Form Factor Rackmount / Tower Convertible
Rack Height 2U
Input Voltage Typical: 120V / Range: 60-150V
Output Voltage 100/110/115/120/125VAC User-Configurable
Output Voltage Regulation ±3%
Efficiency Up to 98% Active ECO Mode; up to 95% Online Mode
Waveform Type Pure Sine Wave
Input Plug Type NEMA L5-30P
Output Receptacles (1) NEMA L5-30R
  (6) NEMA 5-20R
Programmable Outlets 4 Individually Programmable Receptacles
Battery Expansion Support Yes
Hot-Swappable Batteries Yes
Internal Automatic Bypass Yes
ECO Mode Support Yes
AVR Support Included
Energy Saving Mode ECO High Efficiency Mode


User Interface, Alerts & Controls:
Front Panel Display Color LCD Graphic Display with Auto-Rotation
User Interface Interactive LCD Menu Navigation
Display Information Input/output voltage, load %, runtime, battery status, alarms
Status Monitoring Real-time UPS diagnostics and operating conditions
LED Indicators UPS status, battery, bypass, alarm, load status
Audible Alarms Power failure, low battery, overload, overtemperature, fault
Alarm Controls Audible alarm silence and configurable notifications
Configuration Controls Front panel navigation and configuration buttons
Operating Modes Online, ECO, Battery, Bypass
Emergency Shutdown Supported
Alarm Notifications Audible and visual alarm system
User Notifications Low battery, overload, replace battery, fault warnings
Display Orientation Automatic LCD rotation for rack/tower deployment
Power Status Indicators Input, output, battery, and runtime indicators
Startup Diagnostics Automatic self-test during startup
UPS Controls Power on/off, mute, menu navigation, configuration
Battery Status Display Remaining runtime and battery health indicators
Event Indicators Fault and warning event notification display
Bypass Indicators Automatic and manual bypass status indication


Communications & Management:
Interface Ports USB, RS232, RS485, Terminal Block
IntelliSlot Expansion Yes
SNMP / Network Management Optional Vertiv RDU101 Card
Remote Monitoring Supported via optional network card
Communication Protocols SNMP, HTTP, HTTPS, Modbus, Serial
Control Panel Color Graphic LCD Display
Network Interface Support Ethernet support via optional management card
Remote Access Web browser, SNMP, remote shutdown software
Environmental Monitoring Supported with optional accessories
Alarm Notifications Email, SNMP trap, visual and audible notifications
Event Logging UPS event and alarm history logging
Firmware Upgrades Supported
Remote Shutdown Capability Supported
User Authentication Password-protected remote access
UPS Monitoring Software Vertiv Power Insight compatible
Serial Configuration Supported
External Battery Connector Yes
Management Card Support Vertiv IntelliSlot communication cards
Remote Power Monitoring Input, output, battery, and runtime visibility
Network Management Support Enterprise network UPS management ready


Input AC:
Voltage Range (Typical) 120 VAC nominal
90% ~ 100% Loading 94 ~ 102 VAC / 149.5 VAC
70% ~ 90% Loading 77 ~ 94 VAC / 149.5 VAC
50% ~ 70% Loading 60 ~ 77 VAC / 149.5 VAC
0% ~ 50% Loading 60 VAC / 149.5 VAC
Frequency 40 Hz ~ 70 Hz Auto-sensing
Input Power Cord 10-ft. (3 m) attached
Input Plug Type NEMA L5-30P
Input Phase Single Phase
Input Connection Hardwired attached power cord
Input Power Factor High input power factor design


Output AC:
Output Receptacles (1) L5-30R + (6) 5-20R
Output Power Capacity 2700W / 3000VA
Output Voltage Regulation ±3%
Programmable Outlets 4 Individually Programmable Outlets
Topology Online Double Conversion
Efficiency Up to 98% ECO Mode / 95% Online Mode
Nominal Output Voltage 100/110/115/120/125 VAC User-Configurable
Waveform Pure Sine Wave
Transfer Time 0 ms Typical
Normal Mode Overload >200% for 250mS
  150–200% for 2 seconds
  125–150% for 10 seconds
  105–125% for 15 seconds
Internal Bypass Automatic and Manual Bypass
Output Frequency 50/60 Hz
Power Distribution Mixed programmable and non-programmable outlets


Battery Parameters:
Battery Type Valve-regulated, non-spillable, lead acid
Battery Configuration 6 x 12V x 9Ah
Battery Manufacturer LEOCH DJW12-9.0
Recharge Time 3 hours to 90% capacity
Typical Runtime at Half Load 9 minutes
Typical Runtime at Full Load 3 minutes
Expandable Runtime Yes
External Battery Support Compatible with external battery cabinets
Hot-Swappable Batteries Yes
Battery Replacement User-replaceable
Battery Charging Intelligent charging management
Battery Monitoring Integrated battery diagnostics


Physical:
Dimensions (D x W x H) 21.3 x 16.9 x 3.4 in (540 x 430 x 85 mm)
Rack Height 2U
Weight 66 lbs. (30 kg)
Color Black
Mounting Type Rackmount / Tower Convertible
Construction Compact enterprise UPS chassis


Environmental:
Operating Temperature 32 to 122 °F (0 to 50 °C)
Storage Temperature –4 to 140 °F (–20 to 60 °C)
Relative Humidity 0% – 95% Non-condensing
Operating Elevation Up to 10,000 ft (3,000 m)
Audible Noise <46 dBA front/sides, <48 dBA rear
Heat Dissipation Low thermal output design
Environmental Compliance ENERGY STAR 2.0, RoHS2, REACH
Certifications UL 1778, CSA 22.2 No.107.1


Miscellaneous:
General Rack/Tower convertible online UPS system
Included Accessories Rackmount hardware, USB cable, user documentation
Energy Saving Features ECO Mode operation
Application Servers, networking, telecom, edge computing
Runtime Expansion Supports external battery cabinets
Enterprise Features High availability power protection

General

Output Receptacles: 1 x L5-30R + 5-20R × 6; 4 x 5-20R individually programmable receptacles and 1 x L5-30R and 2 x 5-20R non-programmable receptacles

Listings

ENERGY STAR 2.0 certified, WEEE, RoHS2, REACH, UL 1778 4th edition and CSA 22.2 No. 107.1

Topology

On-line double conversion UPS; compact and flexible rack/tower form factor
