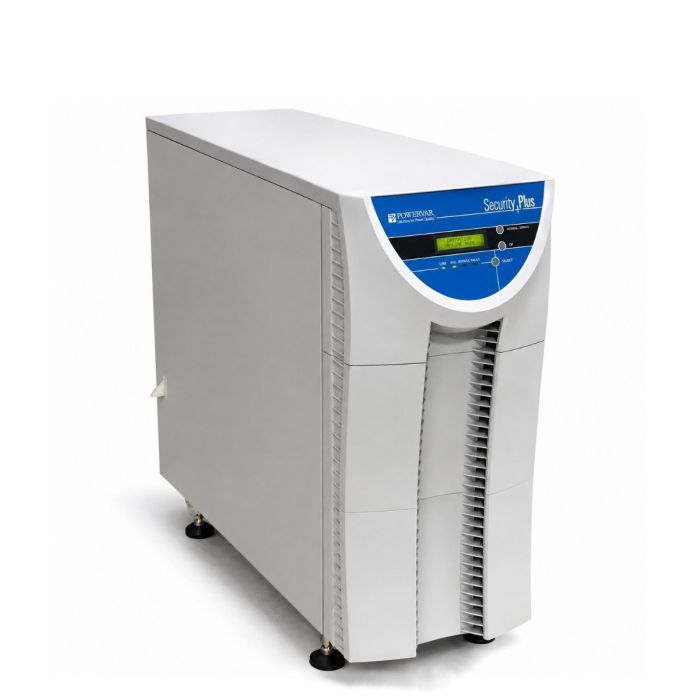

PowerVar ABCDEF2000-22 2000VA 1800W Online Double-Conversion UPS 240V - Refurbished

PowerVar ABCDEF2000-22 2000VA 1800W Tower UPS Online Double-Conversion UPS

Model: ABCDEF2000-22
Input: Factory Wired Input (208V, 60Hz)
Output: (6) NEMA 5-20R, (2) NEMA L6-20R
Output Voltage: 120V / 208V / 240V
True Online Double-Conversion UPS with Internal Isolation Transformer
Pure Sine Wave Output
RS-232, USB & Optional SNMP Management
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included

In stock

Manufacturer: PowerVar (AMETEK)
Model Description: PowerVar ABCDEF2000-22 2000VA 1800W Online Double-Conversion Tower UPS
Condition: New batteries, refurbished UPS
Part Number: ABCDEF2000-22
Maximum Output: 1800W / 2000VA
Typical Backup Time at Half Load: 18 Minutes (900W)
Typical Backup Time at Full Load: 7 Minutes (1800W)
Warranty: 1 Year Full Replacement Warranty
Description: The PowerVar ABCDEF2000-22 is a true online double-conversion UPS designed to provide continuous power protection for servers, networking equipment, telecommunications systems, industrial controls, medical devices, and other critical applications. Featuring an internal isolation transformer, advanced IGBT technology, and pure sine wave output, the ABCDEF2000-22 delivers 2000VA / 1800W of conditioned backup power with exceptional voltage regulation and low harmonic distortion. This factory-configured 208V model provides both 120V and 208V output power through (6) NEMA 5-20R and (2) NEMA L6-20R receptacles, making it ideal for mixed-voltage environments. Integrated RS-232, USB, dry contact communications, and optional SNMP network management provide advanced monitoring and control capabilities. Compatible external battery cabinets are available for extended runtime applications, making this UPS suitable for enterprise, healthcare, telecommunications, industrial, and data center environments.





PowerVar ABCDEF2000-22 2000VA 1800W Tower UPS - User Manual







ABCDEF2000-22 - PowerVar Online UPS Specifications:



Key Features
UPS Topology  True Online Double-Conversion
Form Factor Tower
UPS Capacity 2000VA / 1800W
Output Power Factor 0.9
Waveform Type Pure Sine Wave
Isolation Transformer Internal Isolation Transformer
Input Voltage 208V AC
Output Voltage 120V / 208V / 240V
Input Configuration Factory Wired Input
Output Connections (6) NEMA 5-20R, (2) NEMA L6-20R
Total Output Receptacles 8
Runtime Expansion Yes
External Battery Cabinet Support Yes
Compatible Battery Cabinets D9632-22, D9648-22
User Interface Front Panel LCD Display
Application Servers, Telecommunications, Industrial Controls, Medical Equipment & Networking Systems

Output
Rated Output Capacity 2000VA / 1800W
Output Voltage 120V / 208V / 240V
Output Power Factor 0.9
Output Frequency 60 Hz
Frequency Regulation ±0.1 Hz
Output Voltage Regulation ±1% Typical
Maximum Voltage Regulation ±3%
Output Waveform Pure Sine Wave
Total Harmonic Distortion <3%
Crest Factor 3:1
Output Receptacles (6) NEMA 5-20R
  (2) NEMA L6-20R
Overload Capacity 125% for 2 Minutes
  150% for 30 Seconds
  300% for 500 ms
Common Mode Noise <0.5 VRMS
Step Load Response ±4% for 50% Load Step
Recovery Time Returns within 3 Cycles

Input
Input Voltage 208V AC
Factory Configuration 208VAC, 60Hz
Input Frequency 50/60 Hz
Frequency Range 42-69 Hz
Input Voltage Tolerance +15% / -30%
Input Power Factor >0.95
Input Current THD <5%
Maximum Input Current 13.2A
Input Configuration Factory Wired Input
Input Capacity 2160VA

Battery & Runtime
Battery Type Sealed Lead-Acid
Battery Configuration 16 Internal Batteries
Battery Voltage 96VDC Nominal
Float Voltage 109.2VDC
Charge Current 3A
Recharge Time 8 Hours to 90% Capacity
Runtime @ 25% Load 28 Minutes
Runtime @ 50% Load 18 Minutes
Runtime @ 75% Load 11 Minutes
Runtime @ 100% Load 7 Minutes
Extended Runtime Support Yes
Compatible Battery Cabinets D9632-22, D9648-22
Maximum Runtime Greater Than 12 Hours with External Battery Cabinets

Bypass
Bypass Type Automatic Internal Bypass
Bypass Voltage Matches Input Voltage Configuration
Transformer Regulation ±3%
Bypass Efficiency >95%
Bypass Overload 125% for 10 Minutes
  150% for 500 ms
  1000% for 1 Cycle

Communications & Management
Communication Ports RS-232
USB Port Yes
Dry Contact Interface DB9 Dry Contacts
SNMP Management Optional Internal SNMP Adapter
Network Management Optional
Remote Monitoring Supported
Remote Shutdown Supported
Event Monitoring Supported
UPS Status Reporting Supported
Power Management Integration Supported
Alarm Notifications Audible & Visual
Event Logging Supported
User Configuration Local Front Panel Configuration
Environmental Monitoring Supported with Optional Accessories
Firmware Configuration Supported

Physical
Height 28.7 in (729 mm)
Width 11.8 in (300 mm)
Depth 32.7 in (829 mm)
Net Weight 229 lbs (104 kg)
Shipping Weight 304 lbs (138 kg)
Color Gray
Form Factor Tower

Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 5% to 90% Non-Condensing
Operating Altitude Up to 2,000 m
Storage Altitude Up to 12,000 m
Audible Noise 50-55 dBA @ 1 Meter
Heat Dissipation 1626 BTU/hr

Certifications & Compliance
Safety Certifications UL1778, cUL, CE
EMC Compliance FCC Part 15 Class A
EMC Compliance EN55022 Class A
EMC Compliance CISPR 22
EMC Compliance EN50091-2
RoHS Compliant Yes
