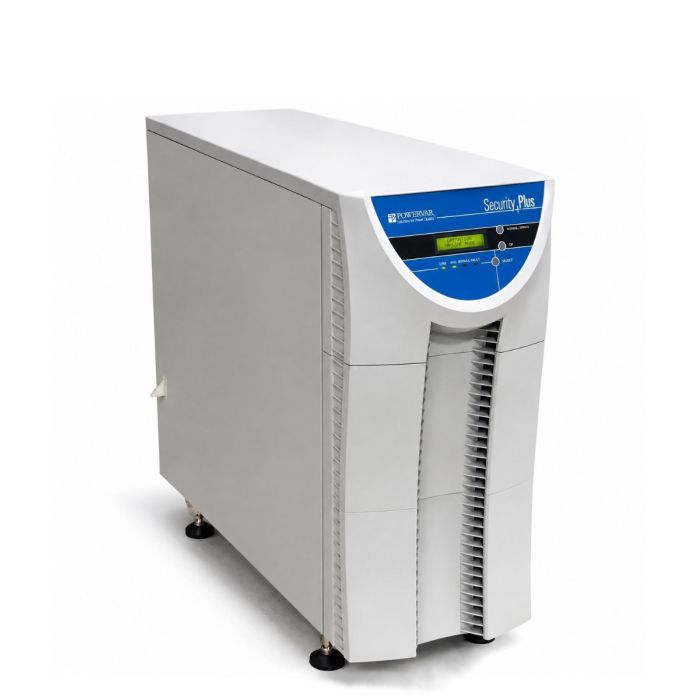

PowerVar ABCDEF4000-22 4000VA 3600W Online Double Conversion UPS 208V - Refurbished

PowerVar ABCDEF4000-22 4000VA 3600W Tower UPS Online Double-Conversion UPS

Model: ABCDEF4000-22
Input: Hardwired Input (200V / 208V / 220V / 230V / 240V)
Output: Hardwired Output (120V / 208V / 240V Configuration Dependent)
True Online Double-Conversion UPS with Internal Isolation Transformer
Pure Sine Wave Output
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included



In stock

Manufacturer: PowerVar (AMETEK)
Model: PowerVar ABCDEF4000-22 4000VA 3600W Tower UPS
Condition: New batteries, refurbished UPS
Part Number: ABCDEF4000-22
Maximum Output: 3600W / 4000VA
Typical Backup Time at Half Load: 17 Minutes (1800W)
Typical Backup Time at Full Load: 8 Minutes (3600W)
Warranty: 1 Year Full Replacement Warranty
Description: The PowerVar ABCDEF4000-22 is a true online double-conversion UPS designed to provide continuous power protection for critical servers, networking equipment, telecommunications systems, industrial controls, and medical applications. Featuring an internal isolation transformer, IGBT-based design, and pure sine wave output, the ABCDEF4000-22 delivers 4000VA / 3600W of conditioned backup power with exceptional voltage regulation and low harmonic distortion. The UPS supports 200V, 208V, 220V, 230V, and 240V input environments while providing regulated output power and advanced protection against outages, surges, voltage fluctuations, and electrical noise. Integrated RS-232, USB, dry contact communications, and optional SNMP management make it suitable for enterprise and mission-critical installations. Compatible external battery cabinets are available for extended runtime applications.





PowerVar ABCDEF4000-22 4000VA 3600W Tower UPS - User Manual








ABCDEF4000-22 - PowerVar Online UPS Specifications:



Key Features
UPS Topology True Online Double-Conversion
Design IGBT Design
Isolation Transformer Internal Isolation Transformer
Form Factor Tower
Rated Power Capacity 4000VA / 3600W
Output Power Factor 0.9
Waveform Type Pure Sine Wave
Input Voltage 200V / 208V / 220V / 230V / 240V
Output Voltage 120V / 208V / 240V (configuration dependent)
Input Connection Hardwired Standard
Output Connection Hardwired Standard
Expandable Runtime Yes
External Battery Cabinet Support Yes
Compatible Battery Cabinets D9632-22, D9648-22
Efficiency (AC-AC) >85%
User Interface Front Panel Status Display
Application Servers, telecommunications, industrial controls, networking equipment, medical equipment

Output
Output Capacity 4000VA / 3600W
Output Voltage Regulation ±1% Typical, ±3% Maximum
Output Voltage THD <3%
Output Power Factor 0.9
Output Frequency 50/60 Hz
Frequency Regulation ±0.1 Hz
Waveform Output Pure Sine Wave
Crest Factor 3:1
Step Load Response ±4% for 50% Load Step
  ±6% for 100% Load Step
Recovery Time Returns within 3 cycles
Overload Capability 125% for 2 Minutes
  150% for 30 Seconds
  300% for 500ms
Common Mode Noise <0.5 VRMS
DC-AC Efficiency >78%
Output Configuration Hardwired Standard
Optional Receptacles Available from Factory

Input
Nominal Input Voltage 200V / 208V / 220V / 230V / 240V
Input Voltage Range (200V Mode) 140-230 VAC
Input Voltage Range (208V Mode) 146-239 VAC
Input Voltage Range (220V Mode) 154-253 VAC
Input Voltage Range (230V Mode) 161-264 VAC
Input Voltage Range (240V Mode) 168-276 VAC
Input Voltage Tolerance +15% / -30%
Input Frequency 50/60 Hz
Frequency Tolerance 42-69 Hz
Input Power Factor >0.95
Input Current THD <5%
Input Capacity 4320VA
Input Connection Hardwired Standard
Optional Line Cord Available

Battery & Runtime
Battery Type High Rate Sealed Lead-Acid
Battery Design Flame Retardant
Battery Voltage 96VDC Nominal
Float Voltage 109.2VDC
Battery Quantity 16 Batteries
Charge Current 3A
Recharge Time 8 Hours to 90% Capacity
Runtime @ 25% Load (900W) 25 Minutes
Runtime @ 50% Load (1800W) 17 Minutes
Runtime @ 75% Load (2700W) 11 Minutes
Runtime @ Full Load (3600W) 8 Minutes
Extended Runtime Support Yes
External Battery Cabinet D9632-22 (32 Batteries)
External Battery Cabinet D9648-22 (48 Batteries)
Maximum Runtime Greater than 12 Hours with Multiple Cabinets

Bypass
Bypass Type Automatic Internal Bypass
Bypass Voltage Matches Input Voltage Configuration
Transformer Regulation ±3%
Bypass Efficiency >95%
Bypass Overload 125% for 10 Minutes
  150% for 500ms
  1000% for 1 Cycle

Communications & Management
Communication Ports RS-232
USB Port Yes
Dry Contact Interface DB-9 Dry Contacts
SNMP Management Optional Internal SNMP Adapter
Remote Monitoring Supported
Remote Shutdown Supported
Event Monitoring Supported
UPS Status Reporting Supported
Network Management Optional
Enterprise Integration Supported

Physical
Height 28.7 in (729 mm)
Width 11.8 in (300 mm)
Depth 32.7 in (829 mm)
Net Weight 317 lbs (143 kg)
Shipping Weight 412 lbs (185 kg)
Color Black
Form Factor Tower

Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 5% to 90% Non-Condensing
Operating Altitude 2,000 m
Storage Altitude 12,000 m
Audible Noise 50-55 dBA @ 1 Meter
Heat Dissipation 3252 BTU/hr

Certifications & Compliance
Safety Standards UL1778 4th Edition
Certification cUL
Certification CE
EMC Compliance FCC Part 15 Class A
EMC Compliance EN55022 Class A
EMC Compliance CISPR 22
EMC Compliance EN50091-2
RoHS Compliant Yes
