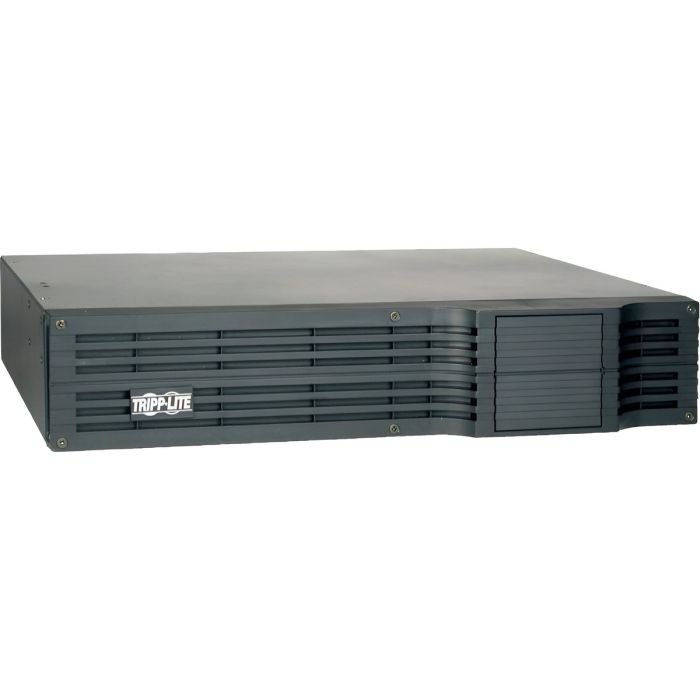

Tripp Lite 48V 18A RM 2U Extended Runtime Battery Pack BP48V24-2U - Refurbished
Tripp Lite 48V 18Ah External Battery Pack RM 2U
Model: BP48V24-2U
48V DC Extended Runtime Battery Cabinet
2U Rackmount Design
Compatible with Select Tripp Lite UPS Systems
Supports up to (2) Battery Packs with Optional 48VDCSPLITTER
Heavy-Duty Blue 175A DC Connector
New Batteries, Refurbished Battery Cabinet
1 Year Full Replacement Warranty Included
$549.99
In stock
Manufacturer: Tripp Lite
Model Description: Tripp Lite External 48V 18Ah 2U Rackmount Extended Runtime Battery Pack for Select Tripp Lite UPS Systems
Condition: Refurbished Battery Cabinet with New Batteries
Part Number: BP48V24-2U
DC System Voltage: 48V DC
Battery Capacity: 18Ah
Form Factor: Rackmount, 2U
UPS Connection: Attached Cable with Blue 175A DC Connector
Expandable Configuration: Up to (2) BP48V24-2U Battery Packs with Optional 48VDCSPLITTER
Warranty: 1 Year Full Replacement Warranty
Includes: (1) BP48V24-2U Refurbished Battery Cabinet with New BatteriesÂ
Description: The Tripp Lite BP48V24-2U is a 48V 18Ah external battery pack designed to extend the runtime of compatible Tripp Lite UPS systems. Its compact 2U rackmount enclosure connects to the UPS through an attached heavy-duty cable with a blue 175A DC connector. One BP48V24-2U can be connected directly to a compatible UPS, while an optional 48VDCSPLITTER allows two BP48V24-2U battery packs to be connected for additional runtime. This unit includes a refurbished battery cabinet fitted with new batteries and is backed by a 1 Year Full Replacement Warranty.
Â
Â
Â
Tripp Lite External 48V RM Battery Pack BP48V24-2U - User Manual
Â
Â
Â
BP48V24-2U – Tripp Lite External 48V 18Ah 2U Specifications:
Â
| Main | Â |
| Manufacturer | Tripp Lite |
| Model | BP48V24-2U |
| Product Type | External Extended Runtime Battery Pack |
| Product Family | BP Series |
| Application | Extended Runtime for Compatible UPS Systems |
| DC System Voltage | 48V DC |
| Battery Capacity | 18Ah |
| Rack Height | 2U |
| Form Factor | Rackmount |
| UPS Connection | Attached Cable with Blue 175A DC Connector |
| Maximum Battery Packs | (2) BP48V24-2U with Optional 48VDCSPLITTER |
| Condition | Refurbished Battery Cabinet with New Batteries |
| Warranty | 1 Year Full Replacement Warranty |
| Includes | (1) BP48V24-2U Battery Cabinet with New Batteries |
| Additional Accessories Included | No |
| Â | Â |
| Battery | Â |
| Battery Type | Sealed Lead-Acid (SLA) |
| DC System Voltage | 48V DC |
| Battery Capacity | 18Ah |
| Extended Runtime Application | Yes |
| Rechargeable | Yes |
| UPS Connection | Attached Cable |
| DC Connector | Blue 175A DC Connector |
| Battery Pack Accessory | Optional 48VDCSPLITTER |
| Maximum with 48VDCSPLITTER | (2) BP48V24-2U Battery Packs |
| Typical Battery Lifespan | 4–6 Years Typical (North America) |
| Â | Â |
| Connection & Expansion | Â |
| Connection Type | High-Current DC Battery Connection |
| Connection Cable | Attached |
| Connector Color | Blue |
| Connector Rating | 175A |
| Direct UPS Connection | Yes |
| Additional Battery Pack Support | Yes, with Optional 48VDCSPLITTER |
| 48VDCSPLITTER Required for One Pack | No |
| 48VDCSPLITTER Required for Two Packs | Yes |
| Maximum BP48V24-2U Packs per Compatible UPS | 2 |
| Daisy-Chain Connection | No – Expansion Uses Optional 48VDCSPLITTER |
| Â | Â |
| Mounting | Â |
| Rack Height | 2U |
| External Battery Pack Form Factor | Rack |
| Standard Rack Width | 19 in |
| 4-Post Rackmount | Supported |
| 2-Post Rackmount | Supported with Optional 2POSTRMKITWM |
| 2–4 Post Front-Rail Mounting | Supported with Optional UPSHDEARKIT |
| Minimum Required Rack Depth | 17 in (43.18 cm) |
| Â | Â |
| Optional Accessories | Â |
| DC Y-Splitter Cable | 48VDCSPLITTER |
| 48VDCSPLITTER Function | Connects Two BP48V24-2U Battery Packs to One Compatible UPS |
| 48VDCSPLITTER Voltage / Connector | 48V DC / Blue 175A DC Connectors |
| 2-Post Rackmount Kit | 2POSTRMKITWM |
| Front-Rail Mounting Kit | UPSHDEARKIT |
| 48V DC Extension Cable | BPEXT481 – Application Dependent |
| Â | Â |
| Physical | Â |
| Unit Height | 3.5 in (8.9 cm) |
| Unit Width | 17.5 in (44.5 cm) |
| Unit Depth | 13.5 in (34.3 cm) |
| Unit Dimensions (H × W × D) | 3.5 × 17.5 × 13.5 in |
| Unit Dimensions (H × W × D) | 8.9 × 44.5 × 34.3 cm |
| Unit Weight | 63 lb (28.58 kg) |
| Shipping Height | 8.90 in (22.61 cm) |
| Shipping Width | 23.40 in (59.44 cm) |
| Shipping Depth | 19.50 in (49.53 cm) |
| Â | Â |
| Safety & Protection | Â |
| Grounding | Yes |
| Ground Bonding Strap Requirement | 12 AWG |
| Internal Overcurrent Protection | Yes |
| Installation | Qualified Service Personnel Recommended |
| Mobile Applications | Not Suitable |
| Â | Â |
| Standards & Compliance | Â |
| UL Listed | Yes |
| NOM | Yes |
| CE | Yes |
| RoHS | Yes |
| Â | Â |
| UPS Compatibility | Â |
| Manufacturer Compatibility | Tripp Lite |
| Compatible UPS Type | Select Tripp Lite 48V UPS Systems |
| SM Series | SM2200RMDVTAA |
| Â | SM2200RMXL2UTAA |
| SMART Series | SMART1500CRMXL |
| Â | SMART2200CRMXL |
| Â | SMART2200RMXL2U |
| Â | SMART2200RMXL2UP |
| Â | SMART2200RMXLN |
| Â | SMART2200VSXL |
| Â | SMART2600RM2U |
| Â | SMART3000CRMXL |
| Â | SMART3000RM2U |
| Â | SMART3000RM2UN |
| Â | SMART3000RMXL2U |
| Â | SMART3000RMXLN |
| Â | SMART3000VS |
| Â | SMART5000RT3U |
| Â | SMART5000XFMRXL |
| Â | SMARTINT3000VS |
| SMX Series | SMX2200XLRT2U |
| Â | SMX3000XLRT2U |
| Â | SMX3000XLRT2UA |
| Â | SMX5000XLRT3U |
| SU Series | SU1500RTXL2UA |
| Â | SU1500RTXLCD2U |
| Â | SU1500XL |
| Â | SU1500XLCD |
| Â | SU2200RTXL2UA |
| Â | SU2200RTXLCD2U |
| Â | SU2200XLA |
| Â | SU2200XLCD |
| SUINT Series | SUINT1500RTXL2UA |
| Â | SUINT2200RTXL2UA |
| Additional Compatibility | Select other Tripp Lite UPS systems designed for this 48V external battery pack |
| Direct Battery Pack Connection | (1) BP48V24-2U |
| Multiple Battery Pack Support | Yes |
| Maximum BP48V24-2U Packs | (2) |
| Required Accessory for Two Packs | Optional 48VDCSPLITTER |
| Battery Pack Connection | Attached Cable with Blue 175A DC Connector |
