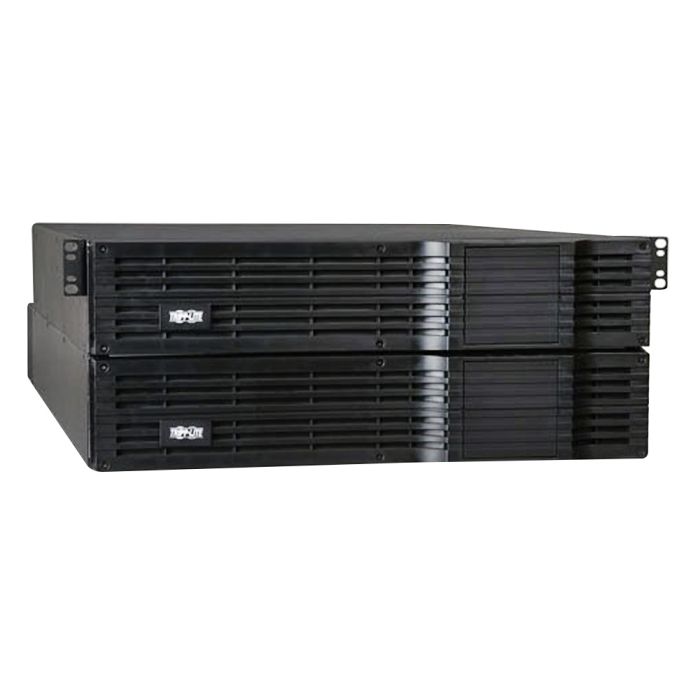

Tripp Lite 192VDC Rack/Tower Battery Pack BP192V18-4U - Refurbished
Tripp Lite 192VDC Rack/Tower Battery Pack
Model: BP192V18-4U
Extended run time battery cabinet
Compatible with Select Tripp Lite UPS Systems
New Batteries, Refurbished Cabinet
1 Year Warranty
$1,169.99
Back Order
Manufacturer: Tripp Lite
Model Description: Tripp Lite External 192VDC Rack Tower Battery Pack. Compatible with select Tripp Lite External Rack Tower UPS models.
Condition: Refurbished battery cabinet with new batteries
Part Number: BP192V18-4U
Warranty: 1 Year Full Replacement Warranty
Includes: (1) BP192V18-4U Battery cabinet with New batteries - No other accessories included
Compatible with these Tripp Lite models and others:
SU12000RT4U, SU12000RT4UHW, SU16000RT4U, SU16000RT4UHW, and other Tripp Lite UPS systems that specify the use of this battery pack.
Tripp Lite External Battery Pack 192VDC BP192V18-4U User's Manual
Output:
|
Overload Protection |
120A DC Output Fuse System |
Input:
|
UPS Input Cord Length (ft.) |
1.333 |
|
UPS Input Cord Length (m) |
0.4 |
|
Input Phase |
Single-Phase |
Battery:
|
Expandable Battery Runtime |
Includes a second input/output connector to daisy-chain multiple BP192V18-4U battery packs |
|
DC System Voltage (VDC) |
192 |
|
Battery Access |
Front-panel Battery Access |
|
Battery Replacement Description |
Simple maintenance chassis contains (4) 40lb. single-user replaceable sealed, flame retardant, non-spillable battery modules. |
|
UPS Connection |
Detachable cable with UPS specific DC connector (40.6 cm length, 4 gauge cable). |
|
Replacement Battery Cartridge |
(2x) RBC9-192 |
|
Typical Battery Lifespan |
4-6 Years Typical (North America) |
|
Expandable Runtime |
Yes |
Physical:
|
External Battery Pack Form Factor |
Rack/Tower |
|
Installation Form Factors Supported with Included Accessories |
4 Post 19 inch Rackmount |
|
Installation Form Factors Supported with Optional Accessories |
2 post Rackmount (2POSTRMKITHD); |
|
Material of Construction |
Black Steel Cabinet |
|
Minimum Required Rack Depth (cm) |
90.93 |
|
Minimum Required Rack Depth (inches) |
35.8 |
|
Shipping Dimensions (hwd / cm) |
33.02 x 83.82 x 58.42 |
|
Shipping Dimensions (hwd / in.) |
13.00 x 33.00 x 23.00 |
|
Shipping Weight (kg) |
128.82 |
|
Shipping Weight (lbs.) |
284.00 |
|
Unit Dimensions (hwd / cm) |
18 x 44.5 x 70.6 |
|
Unit Dimensions (hwd / in.) |
7 x 17.5 x 27.8 |
|
Unit Weight (kg) |
108.41 |
|
Unit Weight (lbs.) |
239 |
