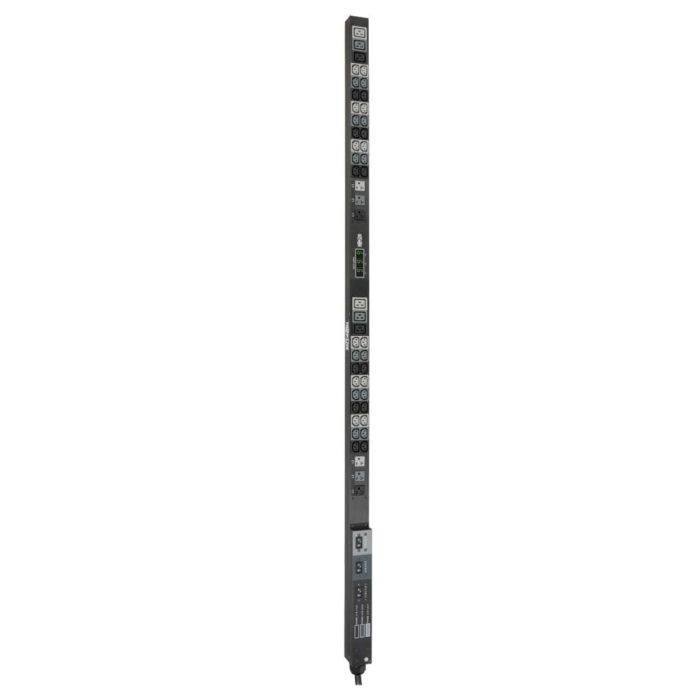

Tripp Lite PDU3MV6L2130 8.6kW Metered PDU, 0U, 208V, (36) C13, (6) C19 & (6) 5-15/20R Output, L21-30P 30A Input - Refurbished

Tripp Lite 8.6kW Metered PDU, 208V, 0U
Model: PDU3MV6L2130
Input: NEMA L21-30P (208V - 30A)
Output: (36) C13, (6) C19 & (6) NEMA 5-15/20R
Refurbished PDU
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $88.00

3 Year + $154.00

Back Order

Quantity

Manufacturer: Tripp Lite
Model: PDU3MV6L2130
Description: Tripp Lite Metered PDU, 0U, 208V
Input: NEMA L21-30P (208V - 20A)
Output: (36) IEC 320 C13, (6) IEC 320 C19 & (6) NEMA 5-15/20R
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available

Tripp Lite PDU3MV6L2130 Specifications:

Input

Input Phase

3-Phase

PDU Input Voltage

208

Recommended Electrical Service

Three-phase 30A 208V service

Maximum Input Amps

Maximum Input Amps Details

Agency de-rated to 24A continuous

PDU Plug Type

NEMA L21-30P

Input Cord Length (ft.)

Input Cord Length (m)

1.83

Output

Output Capacity Details

8.6kW (208V) total capacity; 13.9A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per output
phase (L1, L2, L3); 12A max per C13 outlet; 16A max per 5-20R outlet

Frequency Compatibility

50 / 60 Hz

Output Receptacle Details

5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output

Output Receptacles

(36) IEC C13
(6) C19
(6) NEMA 5-15/20R

Output Nominal Voltage

208/120V

Overload Protection

Three 20A double-pole circuit breakers (1 per output phase)

User Interface, Alerts & Controls

Reported Load Segments

Supports monitoring of input current per phase (13.8A balanced max per L1, L2 and L3); Outlets are color-coded
and labeled for phase and load bank identification; Phase L1-L2 feeds black C13 & C19 outlets; Phase L2-L3 feeds
dark-gray C13 & C19 outlets; Phase L3-L1 feeds light-gray C13 & C19 outlets; Phase L1-N feeds black 5-20R
outlets; Phase L2-N feeds dark-gray 5-20R outlets; Phase L3-N feeds light-gray 5-20R outlets

Front Panel LCD Display

Set of 3 digital current meters report input current in amps (L1, L2, L3)

Surge / Noise Suppression

Automatic Shut-Off

Physical

Material of Construction	Metal
Form Factors Supported	Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in buttonmount compatible racks.
PDU Form Factor	Vertical (0U)
Unit Dimensions (hwd / in.)	70.000 x 2.200 x 2.650
Unit Dimensions (hwd / cm)	177.8 x 5.6 x 4.34
Unit Weight (lbs.)	13.90
Unit Weight (kg)	6.30

Environmental

Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 140°F (-30° to 60°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation (ft.)	0-10,000
Operating Elevation (m)	0-3000

Standards & Compliance:

Product Certifications	RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance	RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
