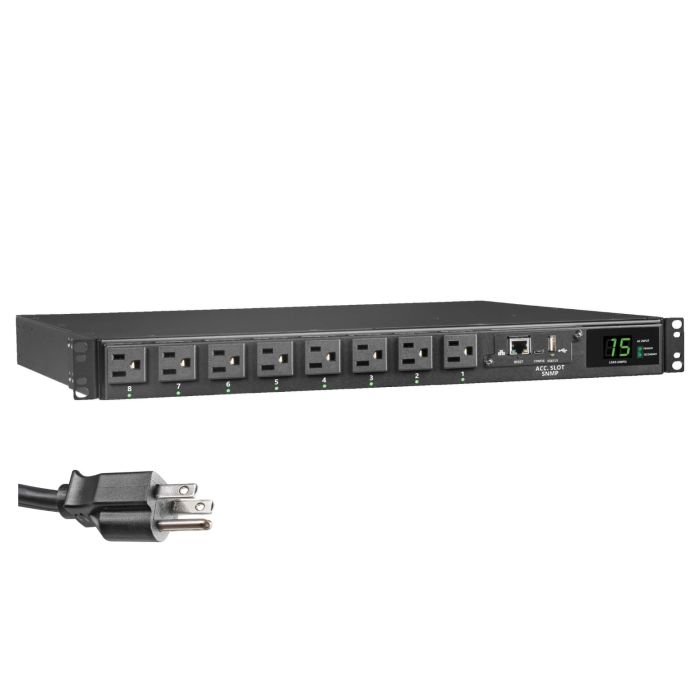

Tripp Lite PDUMH15ATNET 1440W Switched PDU, 1U,15A 120V, Output:(8)5-15R - Refurbished
Tripp Lite 1440W Switched PDU, 120V, (8) 5-15R, 5-15P, 1U
Model: PDUMH15ATNET
Input:Â NEMAÂ 5-15P (120V - 15A)
Output:Â (8) NEMA 5-15R
Refurbished PDU
1 Year Warranty Included
$499.99
In stock
Manufacturer: Tripp Lite
Model: PDUMH15ATNET
Description: Tripp Lite Switched PDU, 1U, 15A, 120V
Input: NEMA NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Condition: Refurbished
Warranty:Â 1 Year Full Replacement Warranty, additional warranty available
Tripp Lite PDUMH15ATNETÂ Specifications:Â
Input
|
Input Phase |
Single-Phase |
|
|
PDU Input Voltage |
120 |
|
|
Recommended Electrical Service |
Two single-phase 15A 120V circuits |
|
|
Maximum Input Amps |
12 |
|
|
Maximum Input Amps Details |
Agency de-rated to 12A continuous |
|
|
PDU Plug Type |
|
|
|
Input Cord Details |
|
|
|
Input Cord Length (ft.) |
12 |
|
|
Input Cord Length (m) |
3.66 |
Output
|
Output Capacity Details |
1440W (120V) / 12A total capacity; 12A max per outlet |
|
|
Frequency Compatibility |
50 / 60 Hz |
|
|
Output Receptacles |
|
|
|
Output Nominal Voltage |
120V |
|
|
Customized Load Management Receptacles |
8 individually switched output receptacles |
User Interface, Alerts & Controls
|
Front Panel LCD Display |
Digital display reports total PDU output current in amps |
|
Front Panel LEDs |
8 LEDs display power on-off status for each output receptacle, plus 2 additional LEDs to indicate input power status for primary and secondary inputs. |
Surge / Noise Suppression
|
Automatic Shut-Off |
No |
Physical
|
Material of Construction |
Metal |
|
Form Factors Supported |
1U rackmount |
|
Minimum Required Rack Depth (cm) |
44.45 |
|
Minimum Required Rack Depth (inches) |
17.5 |
|
PDU Form Factor |
Horizontal (1U) |
|
Shipping Dimensions (hwd / in.) |
5.30 x 20.80 x 23.20 |
|
Shipping Dimensions (hwd / cm) |
13.46 x 52.83 x 58.93 |
|
Shipping Weight (lbs.) |
16.00 |
|
Shipping Weight (kg) |
7.26 |
|
Unit Dimensions (hwd / in.) |
1.750 x 17.500 x 14.500 |
|
Unit Dimensions (hwd / cm) |
4.44 x 44.4 x 36.8 |
|
Unit Weight (lbs.) |
11.00 |
|
Unit Weight (kg) |
4.99 |
Environmental
|
Operating Temperature Range |
32° to 104°F (0° to 40°C) |
|
Storage Temperature Range |
-22° to 122°F (-30° to 50°C) |
|
Relative Humidity |
5% to 95% non-condensing |
|
Operating Elevation (ft.) |
0-10,000 |
|
Operating Elevation (m) |
0-3000 |
Communications
|
PowerAlert Software |
LX Platform Interface: PowerAlert Device Manager - Included |
|
Communications Cable |
Micro-USB- to-USB A configuration/console Access cable |
|
Network Monitoring Port |
RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. |
|
SNMP Compatibility |
LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems - included |
|
Network Compatibility |
10 Mbps; 100 Mbps (Fast Ethernet) |
Features & Specifications
|
Grounding |
Rear grounding lug |
|
High Availability PDU Features |
Auto Probe Monitoring and Reboot (included); Auto-Transfer Switching; Auto Load Shedding |
Standards & Compliance
|
Product Certifications |
CSA (Canada); NOM (Mexico); UL 60950-1 |
|
Product Compliance |
RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
