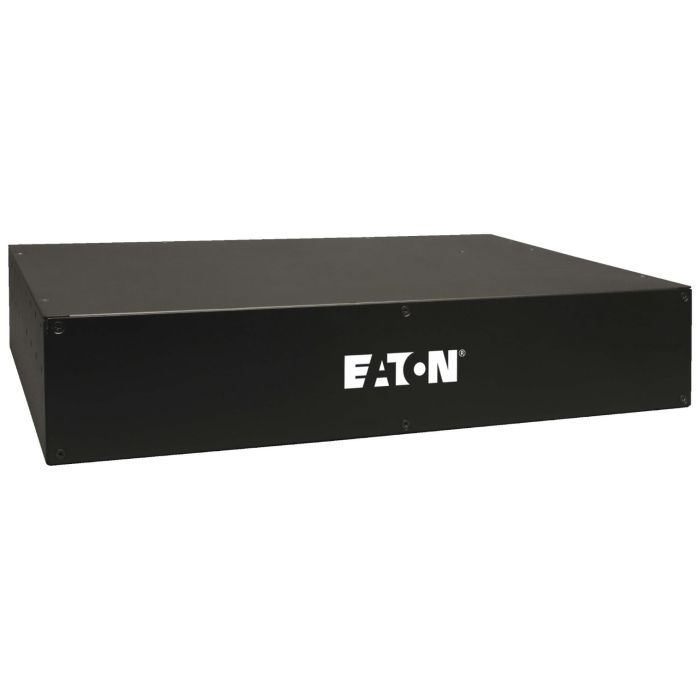

Tripp Lite PDUMH30HV19NET 5500W Single-Phase Switched PDU Out:(8)C13 & (6)C19 - Refurb

Tripp Lite 5500W Single-Phase Switched PDU, 200-230V, RM 2U 30A
Model: PDUMH30HV19NET
Input: (1) NEMA L6-30P (200-230V - 30A)
Output: (8) IEC C13, (6) IEC C19 (208/230V)

Switched Rack PDU – Individual Outlet Switching & Remote Power Management
Refurbished PDU
1 Year Full Replacement Warranty Included

In stock

Manufacturer: Tripp Lite
Model: PDUMH30HV19NET
Description: Tripp Lite Switched PDU 5.5kW, 208/230V, RM 2U, LX Interface
Input: NEMA L6-30P, 208/230V, Single-Phase
Output: (8) IEC C13, (6) IEC C19
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available

Description: The Tripp Lite PDUMH30HV19NET is a 5.5kW switched rack PDU designed for servers, networking, and data center applications. Featuring a NEMA L6-30P input, (8) IEC C13 and (6) IEC C19 individually switched outlets, and a pre-installed WEBCARDLX network interface, it provides secure remote outlet control, real-time power monitoring, outlet sequencing, configurable alerts, and support for optional EnviroSense2 environmental monitoring modules, making it an ideal solution for advanced remote power management in mission-critical environments.



Tripp Lite 5500W Single-Phase Switched PDU 230V - User Manual






Tripp Lite PDUMH30HV19NET Switched Rack PDU Specifications:



Key Features
PDU Type Switched Rack PDU
Form Factor Horizontal Rackmount
Rack Height 2U
Input Phase Single-Phase
Rated Capacity 5.5kW @ 230V / 5.0kW @ 208V
Maximum Input Current 24A Continuous (30A Max, Agency Derated)
Input Voltage 208/230V
Frequency 50/60 Hz
Input Connection NEMA L6-30P
Input Cord Length 15 ft (4.57 m)
Output Connections (8) IEC C13, (6) IEC C19
Individually Switched Outlets Yes
Remote Outlet Reboot Yes
Outlet Sequencing Yes
Automatic Load Shedding Yes
Digital Load Meter Yes
Front Panel Display 2-Digit LED Current Meter

Input
Nominal Input Voltage 208/230V
Input Frequency 50/60 Hz
Input Connection Type NEMA L6-30P
Input Cord Length 15 ft (4.57 m)
Maximum Input Current 24A Continuous
Recommended Electrical Service Single-Phase 30A, 208/230V

Output
Maximum Output Capacity 5.5kW @ 230V / 5.0kW @ 208V
Output Voltage 208/230V
Output Receptacles (8) IEC C13
  (6) IEC C19
Maximum Per C13 Outlet 12A
Maximum Per C19 Outlet 16A
Circuit Breakers Three 20A Breakers
Outlet Control Individual Remote Switching

Communications & Management
Network Interface Pre-installed WEBCARDLX
Management Software PowerAlert Device Manager (PADM20)
Network Port RJ45 Ethernet
Configuration Port Micro-USB
Environmental Sensor Support EnviroSense2 (Optional)
Communication Protocols HTML5, SNMP, SSH, Telnet
Network Speed 10/100 Mbps Auto-Sensing
DHCP Support Yes
Manual IP Configuration Yes
Email Notifications Yes
SNMP Traps Yes
Event Logging Yes
Auto Probe Monitoring Yes
Auto Load Shedding Yes
Firmware Upgradeable Yes
Real-Time Clock Backup Yes
User Access Levels Administrator and Guest

Physical
Color Black
Construction Metal
Height 3.50 in (8.9 cm)
Width 17.50 in (44.5 cm)
Depth 12.50 in (31.75 cm)
Net Weight 13.8 lbs (6.26 kg)
Mounting 2U Horizontal Rackmount
Reversible Mounting Ears Yes

Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -22°F to 122°F (-30°C to 50°C)
Operating Humidity 5-95% Non-Condensing
Operating Altitude Up to 10,000 ft (3,000 m)

Conformance
Product Certifications UL 60950-1, CSA, NOM
Compliance RoHS, FCC Part 15 Class A, TAA
Condition Refurbished PDU
Warranty 1 Year Full Replacement Warranty
