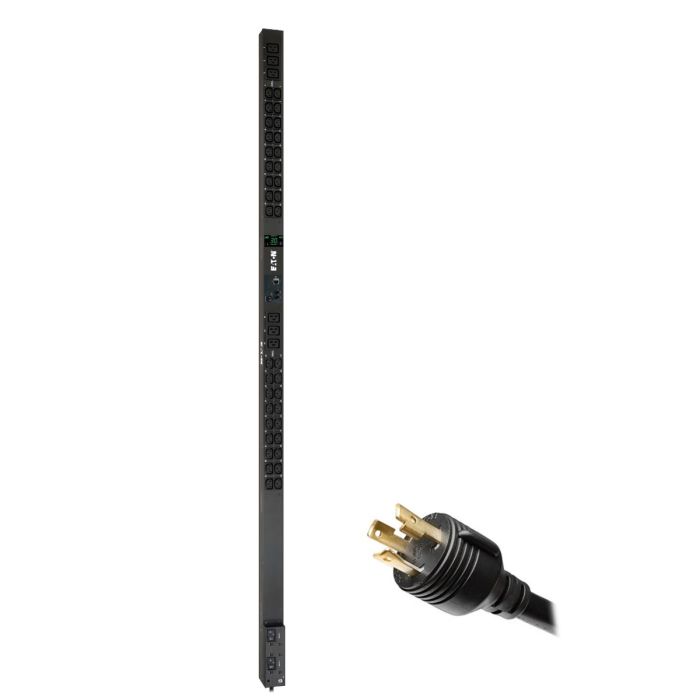

Tripp Lite PDUMNV30HV2 Monitored Rack PDU, 208V-240V 30A,Out:(36)C13,(6)C19 - Refurbished
Tripp Lite PDUMNV30HV2 Monitored Rack PDU, Zero U, 200V/208V/240V 30A L6-30P, (36)C13 & (6)C19
Model:Â PDUMNV30HV2
Input:Â NEMA L6-30P
Output:Â (36) IEC 320 C13 (6) IEC 320 C19
Refurbished PDU
1 Year Warranty Included
Â
$499.99
In stock
Manufacturer:Â Tripp Lite
Model:Â PDUMNV30HV2
Description: Monitored Rack PDU, Zero U, 30A, 208-240V, (36)C13 & (6)C19Â
Input:Â NEMA L6-30P - 200V, 208V, 240V - 30A
Output: (36) C13 (6) C19
Condition:Â Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty availableÂ
The Tripp Lite PDUMNV30HV2 is a monitored rack PDU designed for 0U vertical mounting, ideal for data centers requiring reliable power distribution with real-time load monitoring. It supports 200–240V single-phase input with a NEMA L6-30P plug and delivers up to 5.8kW, featuring 36 C13 and 6 C19 outlets for flexible device connectivity. The monitored function allows users to track power usage and optimize load balancing. This unit includes dual load banks with individual 20A circuit breakers for added protection, a 10 ft power cord, and is offered refurbished with a 1-year full replacement warranty, making it a cost-effective and dependable solution for rack power management.
Â
Â
Tripp Lite PDUMNV30HV2 Monitored Rack PDU, Zero U, 208V - User Manual-240V 30A
Â
Tripp Lite PDUMNV30HV2Â Specifications:Â
Â
Input
|
PDU Input Voltage |
200; 208; 240 |
|
Recommended Electrical Service |
30A 208/240V |
|
Maximum Input Amps |
30 |
|
Maximum Input Amps Details |
Agency de-rated to 24A continuous |
|
PDU Plug Type |
NEMA L6-30P |
|
Input Cord Length (ft.) |
10 |
|
Input Cord Length (m) |
3 |
|
Input Phase |
Single-Phase |
Output
|
Output Capacity Details |
5kW (208V), 5.8kW (240V), 4.8kW (200V); 30A maximum (agency de-rated to 24A continuous) |
|
Frequency Compatibility |
50 / 60 Hz |
|
Output Receptacles |
(36) C13; (6) C19 |
|
Output Nominal Voltage |
200-240V nominal, single phase |
|
Overload Protection |
Outlets are arranged in two banks of 21 (18 C13 and 3 C19 each). Each bank is protected by a separate 20A thermal circuit breaker |
|
Outlet Type |
IEC320-C13, IEC320-C19 |
Environmental
|
Storage Temperature Range |
5 to 122F (-15 to 50C) |
|
Relative Humidity |
5-95% non-condensing |
|
Operating Elevation (ft.) |
0-10,000 |
|
Operating Elevation (m) |
0-3000 |
Physical
|
Unit Dimensions (hwd / in.) |
70 x 2.2 x 2.65 |
|
Unit Dimensions (hwd / cm) |
177.8 x 5.6 x 6.7 |
|
Unit Weight (lbs.) |
15 |
|
Unit Weight (kg) |
6.8 |
|
Form Factors Supported |
0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks |
|
PDU Form Factor |
Vertical (0U) |
Â
Communications & Management
|
Control Panel |
LED digital display for real-time load monitoring and status indicators |
|
Remote Monitoring |
Yes, via built-in network interface (SNMP, Web UI, Telnet) |
|
Communication Protocols |
SNMP, HTTP/HTTPS, Telnet |
|
Network Interface |
Integrated Ethernet port |
|
Emergency Power Off (EPO) |
Not supported |
|
Pre-Installed Management |
Built-in network monitoring system (no SmartSlot required) |
|
Alarm |
Configurable alerts for overload, high load, and communication status |
|
Alarm Types |
Visual and remote network notifications |
|
Load Monitoring |
Per-outlet and total load monitoring (bank-level) |
|
User Notifications |
Email and SNMP traps (via network interface configuration) |
|
Firmware Upgrade |
Supported via web interface |
