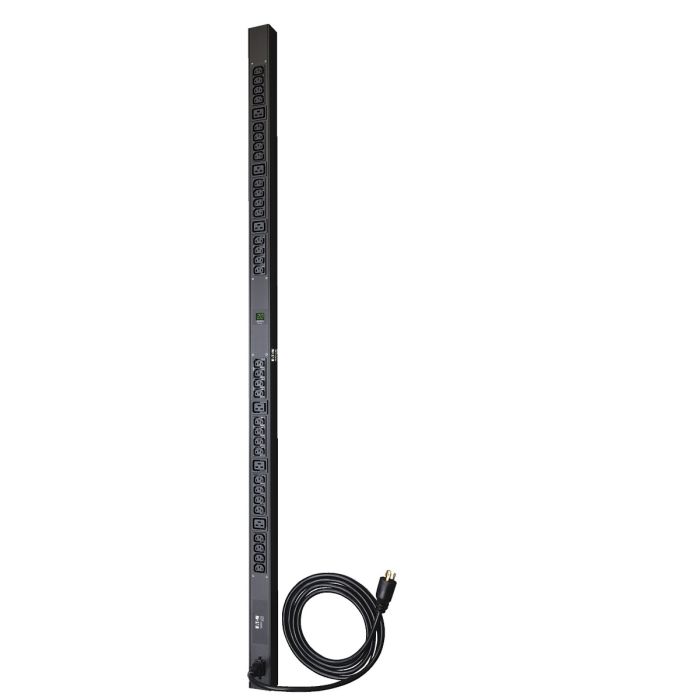

Tripp Lite PDUMV20HV MTD PDU, 0U, 200-240V, 20A, Output:(32)C13 & (6)C19 - Refurbished

Manufacturer: Tripp Lite (Eaton)
Model: Tripp Lite Metered PDU Zero U 20A 208–240V
Part Number: PDUMV20HV-PD6674
Condition: Refurbished PDU
Maximum Load Capacity: 3680W / 3.68kW at 230V
Rated Current: 16A Continuous
Input: NEMA L6-20P, 200–240V, 20A, 10 ft Detachable Power Cord
Output: (32) IEC C13, (6) IEC C19
PDU Type: Local Metered
Input Phase: Single-Phase
Load Monitoring: Integrated Digital Current Meter
Warranty: 1 Year Full Replacement Warranty

Description: The Tripp Lite PDUMV20HV-PD6674 Metered PDU is a refurbished 0U vertical rack PDU designed for high-density power distribution in data center environments, operating at 200–240V with a 20A single-phase input via NEMA L6-20P. It provides (32) C13 and (6) C19 outlets for flexible equipment connectivity, with metered input for load monitoring. Its space-saving ZeroU design allows installation without occupying rack space, and it supports multiple mounting options including rack, wall, or under-counter. Built with a durable aluminum chassis, it is ideal for efficient power management and comes with a 1-year full replacement warranty.

Tripp Lite PDUMV20HV-PD6674 Metered PDU, Zero U, 20A L6-20P

PDUMV20HV-PD6674 - Tripp Lite Metered PDU Specifications:

Main
Manufacturer	Tripp Lite (Eaton)
Model	PDUMV20HV-PD6674
Manufacturer Base Model	PDUMV20HV
Product Family	Tripp Lite Metered Rack PDU
Product Type	Local Metered PDU
Input Phase	Single-Phase
Maximum Power Capacity	3.68kW at 230V
Rated Current	16A Continuous
Input Plug Rating	20A
Total Outlets	38
Form Factor	Vertical Zero U
Condition	Refurbished PDU
Input
Input Voltage	200 / 208 / 230 / 240V AC
Input Phase	Single-Phase
Input Frequency	50/60Hz
Input Connection	NEMA L6-20P
Input Inlet	IEC C20
Input Plug Rating	20A
Maximum Continuous Input Current	16A
Power Cord	Detachable C19-to-L6-20P Cordset
Power Cord Length	10 ft (3.05 m)
Recommended Electrical Service	Single-Phase 16/20A, 208/230V
Output & Power Distribution
IEC C13 Outlets	(32) IEC 60320 C13
IEC C19 Outlets	(6) IEC 60320 C19
Total Output Receptacles	38
Output Voltage	200 / 208 / 230 / 240V AC
Output Frequency	50/60Hz
Maximum Output at 230V	3680W / 3.68kW
Maximum Output at 208V	Approximately 3330W / 3.33kW
Total Output Current	16A Continuous
Maximum Current Per C19 Outlet	16A
Maximum Current Per C13 Outlet	12A (10A CE)
Outlet Configuration	Single Load Bank
Internal Branch Circuit Breakers	None
Individual Outlet Switching	No
Individual Outlet Metering	No
Power Distribution	Single-Phase Rack Power Distribution
Metering & Monitoring
Metering Type	Local Load Metering
Digital Current Meter	Integrated
Metered Measurement	Total PDU Output Current in Amperes
Real-Time Load Monitoring	Yes
Per-Outlet Current Monitoring	No
Individual Outlet Power Monitoring	No
Input Voltage Monitoring	Not Specified
Energy Consumption Monitoring (kWh)	Not Specified
User Interface & Controls
Local Display	Digital Current Meter
Display Measurement	Total Output Load in Amperes
Local Load Monitoring	Yes
Outlet Power Switching	No
Physical
Mounting Type	Vertical Rackmount
Rack Height	0U
Unit Height / Length	63.75 in (162 cm)
Unit Width	2.25 in (5.7 cm)
Unit Depth	3.75 in (9.5 cm)
Unit Weight	5.2 lbs (2.4 kg)
Construction Material	Aluminum
Mounting Options	Rack, Wall, Under-Counter, Raceway, Workbench
Environmental
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-30°C to 50°C (-22°F to 122°F)
Relative Humidity	0–95%, Non-Condensing
Operating Elevation	0–3,000 m (0–10,000 ft)
Certifications & Compliance
Safety Certifications	NOM, GoST-R, RETIE, IEC 62368-1
Additional Compliance	EAC, CE Marked, RoHS
TAA Compliance	Manufacturer PDF Contains Conflicting Entries
Condition & Warranty
Condition	Refurbished PDU
Warranty	1 Year Full Replacement Warranty
Additional Warranty	Available
