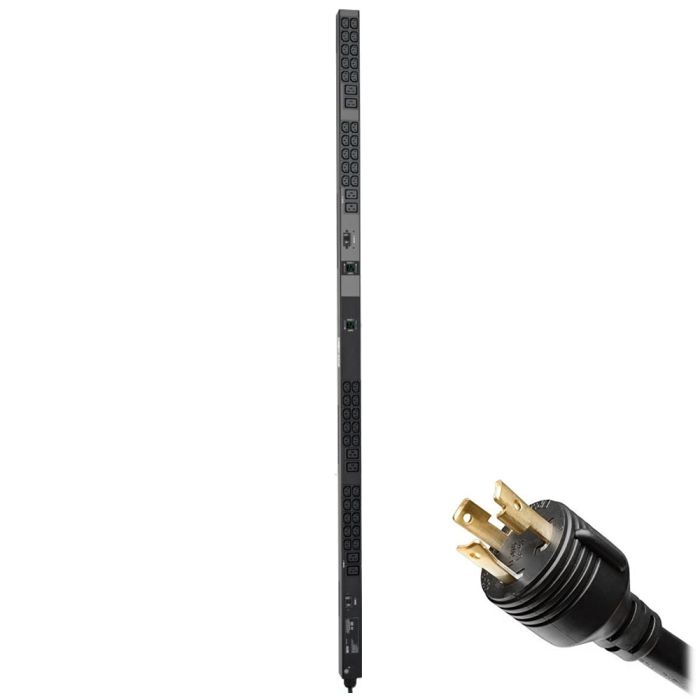

Tripp Lite PDUMV30HV2 MTD Rack PDU, 5800W 208-240V 30A, Output:(40)C13 & (8)C19 - Refurbished
Tripp Lite PDUMV30HV2 5800W Metered Rack PDU, Zero U, 30A
Model:Â PDUMV30HV2
Input: NEMA L6-30PÂ 200V/208V/240V
Output:Â (40) IEC 320 C13 (8) IEC 320 C19
Refurbished PDU
1 Year Warranty Included
$249.99
Back Order
Manufacturer:Â Tripp Lite
Model:Â PDUMV30HV2
Description:Â Metered Rack PDU, Zero U, 30A, 208-240V, (40)C13 & (8)C19Â - Refurbished
Input:Â NEMA L6-30P - 200V, 208V, 240V - 30A
Output: (40) C13 (8) C19
Condition:Â Refurbished
Warranty:Â 1 Year Full Replacement Warranty, additional warranty available
Tripp Lite PDUMV30HV2Â Specifications:Â
Â
Input
|
PDU Input Voltage |
200; 208; 220; 230; 240 |
|
Recommended Electrical Service |
Single-phase 200/240V service |
|
Maximum Input Amps |
24A |
|
Maximum Input Amps Details |
Agency de-rated to 24A continuous |
|
PDU Plug Type |
NEMA L6-30P |
|
Input Cord Length (ft.) |
10 |
|
Input Cord Length (m) |
3.05 |
|
Input Phase |
Single-Phase |
Output
|
Output Capacity Details |
5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 30A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet |
|
Frequency Compatibility |
50 / 60 Hz |
|
Output Receptacles |
(40) C13; (8) C19 |
|
Output Nominal Voltage |
200V; 208V; 240V |
|
Overload Protection |
Two 20A breakers protect 24 outlets each |
Environmental
|
Operating Temperature Range |
32 to122F (0 to 50C) |
|
Storage Temperature Range |
22° to 140°F (-30° to 60°C) |
|
Relative Humidity |
5-95% non-condensing |
|
Operating Elevation (ft.) |
0-10000 ft. (0-3000 m)Â |
|
Operating Elevation (m) |
0-3000 |
Physical
|
Shipping Dimensions (hwd / in.) |
75.87 x 9.65 x 6.89 |
|
Shipping Dimensions (hwd / cm) |
192.7 x 24.5 x 17.5 |
|
Shipping Weight (lbs.) |
16.98 |
|
Shipping Weight (kg) |
7.7 |
|
Unit Dimensions (hwd / in.) |
70 x 2.17 x 2.52 |
|
Unit Dimensions (hwd / cm) |
177.8 x 6.88 x 6.4 |
|
Unit Weight (lbs.) |
12.35 |
|
Unit Weight (kg) |
5.6 |
|
Material of Construction |
Metal |
|
Form Factors Supported |
0u vertical installation in equipment racks, plus under-counter and wallmount |
|
PDU Form Factor |
Vertical (0U) |
