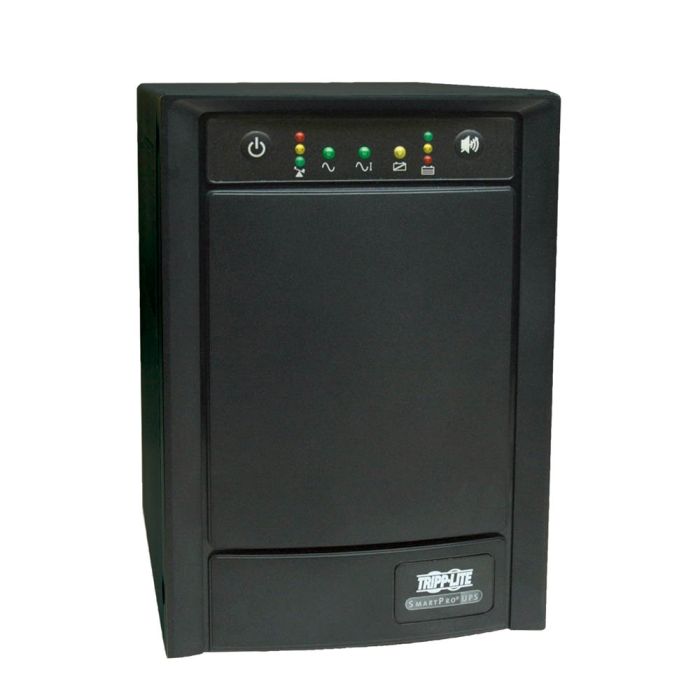

Tripp Lite Smart-Pro UPS 1500VA 900W Tower 120V SMART1500SLT - Refurbished

Rated input current (Maximum Load)

10.1A (100V), 9.3A (110V), 8.6A (120V)

Nominal Input Voltage(s) Supported

100V AC; 110V AC; 120V AC

UPS Input Connection Type

Input Circuit Breakers

15A

UPS Input Cord Length (ft.)

6

UPS Input Cord Length (m)

1.8

Recommended Electrical Service

15A 120V

Input Phase

Single-Phase

Output Volt Amp Capacity (VA)

1500

Output Capacity (kVA)

1.5

Output Watt Capacity (Watts)

900

Output Capacity Details

7.5A @ 120V (default), 8.2A @ 110V, 9A @ 100V. 125% @ 10 minutes 110% +/- 10% @ 5 seconds

Power Factor

0.63

Nominal Voltage Details

120V sinusoidal in line mode and 120V sinusoidal in battery mode

Frequency Compatibility

50 / 60 Hz

Output Voltage Regulation (Line Mode)

-13%, + 15%

Output Voltage Regulation (Battery Mode)

+/-5%

Output AC Waveform (AC Mode)

Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

100V; 110V; 120V

Output Receptacles

Individually Controllable Load Banks

No

Battery Type

Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.)

8 min. (900w)

Half Load Runtime (min.)

20 min. (450w)

Expandable Runtime

No

DC System Voltage (VDC)

36

Battery Recharge Rate (Included Batteries)

Less than 6 hours from 10% to 80% (typical, full load discharge)

Battery Access

Battery access door

Internal UPS Replacement Battery Cartridge

RBC36-SLT

Battery Replacement Description

Hot-swappable, user replaceable batteries

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 95 to 145 (120v), 87 to 133 (110v), 83 to 121 (100v)

Overvoltage Correction

Voltage reduction of 12% applies when input is 127 to 145 (120v), 116 to 133 (110v), 111 to 121 (100v); All voltage setpoints ±5% tolerance

Undervoltage Correction

Voltage boost of 14% applies when input is 95 to 108 (120v), 87 to 99 (110v), 83 to 90 (100v); All voltage setpoints ±5% tolerance

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection

Alarm Cancel Operation

Power-fail alarm can be silenced using alarm-cancel switch

Audible Alarm

Audible alarm indicates power failure and overload conditions

LED Indicators

Status LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for load and battery charge level

Site Wiring Fault Indication

Rear panel site wiring fault LED

UPS AC Suppression Joule Rating

690

UPS AC Suppression Response Time

Instantaneous

UPS Dataline Suppression

1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

EMI / RFI AC Noise Suppression

Yes

Primary Form Factor

Cooling Method

Installation Form Factors Supported
with Included Accessories

Primary UPS Depth (mm)

Primary UPS Height (mm)

259

Primary UPS Width (mm)

173

Shipping Dimensions (hwd / cm)

35.31 x 24.64 x 44.70

Shipping Dimensions (hwd / in.)

13.90 x 9.70 x 17.60

Shipping Weight (kg)

21.82

Shipping Weight (lbs.)

48.10

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, cm)

25.91 x 17.27 x 33.53

UPS Power Module Dimensions (hwd, in.)

10.2 x 6.8 x 13.2

UPS Power Module Weight (kg)

20.41

UPS Power Module Weight (lbs.)

45

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

148

Battery Mode BTU / Hr. (Full Load)

500

AC Mode Efficiency Rating (100% Load)

95%

Operating Elevation (ft.)

6561 ft. (2000 m) above sea level

Audible Noise

Audible Noise < 50 dBA at Front Side 1 Meter

Network Management Cards

SNMPWEBCARD;  WEBCARDLX ;  RELAYIOCARD

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert

Communications Cable

USB and DB9 cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network UPS Tools Compatibility

NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Network Management Card Description

Network management card optional

Communications Interface

DB9 Serial; Slot for SNMP/Web interface; USB (HID enabled)
