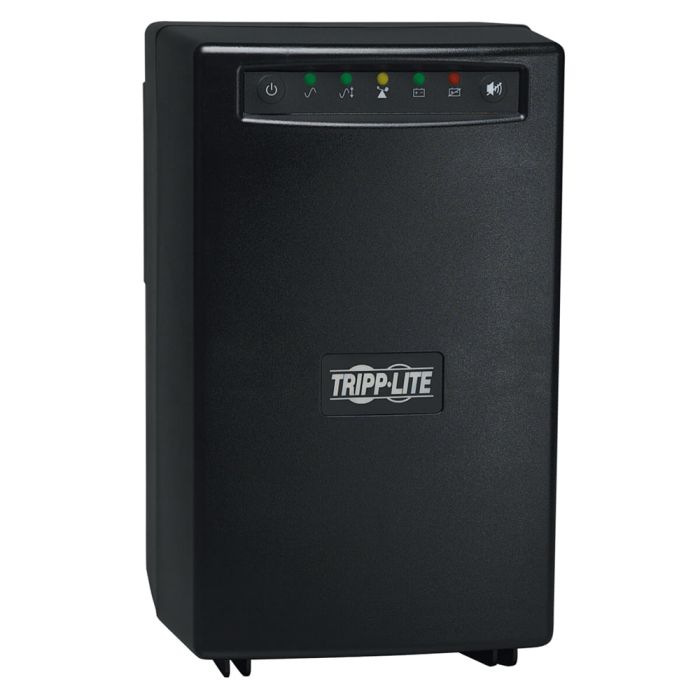

Tripp Lite Smart-Pro UPS 1500VA 980W Tower 120V SMART1500 - Refurbished

Rated input current (Maximum Load)

12A

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

Input Circuit Breakers

15A

UPS Input Cord Length (ft.)

7

UPS Input Cord Length (m)

2.1

Recommended Electrical Service

15A 120V

Input Phase

Single-Phase

Output Volt Amp Capacity (VA)

1500

Output Capacity (kVA)

1.5

Output Watt Capacity (Watts)

980

Output Watt Capacity (Watts)

980

Nominal Voltage Details

120v nominal output in battery mode

Frequency Compatibility

60 Hz

Output Voltage Regulation (Line Mode)

-18%, +8%

Output Voltage Regulation (Battery Mode)

+/- 5%

Load Management Receptacles

One switchable single-outlet 5-15R load bank

Output AC Waveform (AC Mode)

Sine wave

Output AC Waveform (Battery Mode)

PWM sine wave

Nominal Output Voltage(s)Supported

110V; 115V; 120V

Output Receptacles

Individually Controllable Load Banks

Yes

Battery Type

Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.)

7 min. (980w)

Half Load Runtime (min.)

20 min. (490w)

Expandable Runtime

No

DC System Voltage (VDC)

36

Battery Recharge Rate (Included Batteries)

Less than 4 hours from 10% to 90% (typical, full load discharge)

Battery Access

Battery access door

Internal UPS Replacement Battery Cartridge

RBC36-SLT

Battery Replacement Description

Hot-swappable, user replaceable batteries

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147

Overvoltage Correction

Input voltages between 128 and 147 are reduced by 12%

Undervoltage Correction

Input voltages between 93 and 107 are boosted by 14%

Severe Undervoltage Correction

Input voltages between 75 and 92 are boosted by 30%

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation

Alarm Cancel Operation

Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate lowbattery status

Audible Alarm

Audible alarm indicates power-failure, overload and low-battery conditions

LED Indicators

5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

UPS AC Suppression Joule Rating

510

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Primary Form Factor

Cooling Method

Installation Form Factors Supported
with Included Accessories

Installation Form Factors Supported with Optional Accessories

Primary UPS Depth (mm)

Primary UPS Height (mm)

324

Primary UPS Width (mm)

191

Shipping Dimensions (hwd / cm)

43.43 x 28.19 x 33.02

Shipping Dimensions (hwd / in.)

17.10 x 11.10 x 13.00

Shipping Weight (kg)

18.37

Shipping Weight (lbs.)

40.50

UPS Housing Material

PVC

UPS Power Module Dimensions (hwd, cm)

32.38 x 19.05 x 23.50

UPS Power Module Dimensions (hwd, in.)

12.75 x 7.5 x 9.25

UPS Power Module Weight (kg)

17.69

UPS Power Module Weight (lbs.)

39

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

139

Battery Mode BTU / Hr. (Full Load)

456

AC Mode Efficiency Rating (100% Load)

96%

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert

Communications Cable

USB and DB9 cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Management Card Description

Network management not supported

Communications Interface

USB; DB9 Serial
