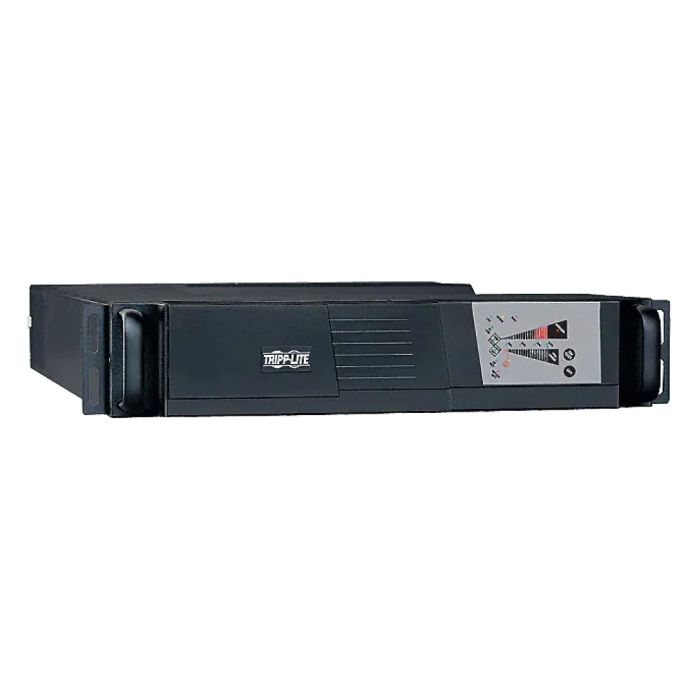

Tripp Lite SmartOnline 1500VA 1200W RM 2U 120V SU1500RTXL2U - Refurbished

UPS Input Cord Length (ft.)

10

UPS Input Cord Length (m)

3.1

UPS Input Connection Type

Recommended Electrical Service

15A 120V

Maximum Input Amps

12

Maximum Input Watts

1395

Voltage Compatibility (VAC)

120

Frequency Compatibility

50 / 60 Hz

Output Nominal Voltage

120V AC

Output Voltage Regulation

Maintains full-time sine wave output within 2% of 120V, less than 5% total harmonic distortion

Output Frequency Regulation

Regulates line frequency to 50/60Hz +/- 0.05Hz

Overload Protection

Via input breaker

Customized Load Management
Receptacles

"2 individually controllable load banks support automated load shedding and remote reboot on demand of locked
network devices. Configurable via PowerAlert software to automatically switch off optional loads, like monitors, to
increase available runtime for servers and other critical devices. (Bank A consists of 4 outlets / Bank B consists of 2
outlets) "

Output Receptacles

Runtime Full Load (min.)

5 min.

Runtime Half Load (min.)

17 min.

Expandable Runtime

Yes

Expandable Runtime Description

Supports extended runtime with optional external battery pack BP48V212U (multi-pack compatible)

DC System Voltage (VDC)

48

Battery Access

User replaceable, hot swap battery replacement supported via front access panel

Battery Pack Accessory (Optional)

BP48V212U (optional)

Typical Battery Lifespan

3-6 years, depending on usage

Battery Charge

2-4 hours to 90%

Voltage Regulation Description

On-line, double-conversion power conditioning maintains output within 2% of 120 volts at all times

Overvoltage Correction

Maintains output of 120V +/-2% without consuming battery power during overvoltages to 138V AC

Brownout Correction

Maintains output of 120V +/-2% during undervoltages to 80V AC

Severe Brownout Correction

At load levels less than 70%, UPS maintains output of 120V +/-2% during undervoltages to 65V AC

Front Panel LEDs

6 LED STATUS DISPLAY: line power (green), online (green), bypass (yellow), on battery (green), overload (red),
battery low (yellow) <br> 4 LED LOAD / BATTERY LEVEL DISPLAY (100%, 75%, 50%, 25%)

Switches

Includes main power off/on switch, plus 1 switch to select battery charge / load level display

Audible Alarm

Multi-function audible alarm offers notification of UPS start, backup operation, low battery warning, overload, UPS
fault and remote shutdown

UPS AC Suppression Joule Rating

2440

EMI / RFI AC Noise Suppression

Yes

AC Suppression Response Time

Instantaneous

Material of Construction

Cooling Method

Form Factors Supported

Shipping Dimensions (hwd / in.)

Shipping Dimensions (hwd / cm)

Shipping Weight (lbs.)

Shipping Weight (kg)

Unit Dimensions (hwd / in.)

Unit Dimensions (hwd / cm)

8.89 x 44.5 x 52.8

Unit Weight (lbs.)

49

Unit Weight (kg)

22.23

Relative Humidity

WatchDog Compatibility

Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft
reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk
applications

Network Monitoring Port

Built-in DB9 port offers both enhanced RS-232 enable monitoring data, plus contact closure monitoring ability

EPO Port

Supports "Emergency Power Off" via special-order cabling, contact Tripp Lite for more information

SNMP Compatibility

Yes, includes slot for optional SNMPWEBCARD accessory (#SNMPWEBCARD)
