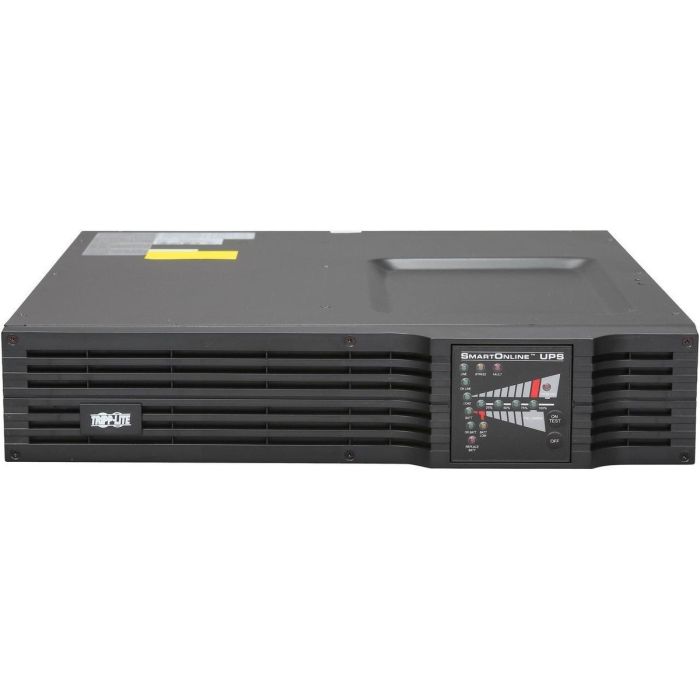

Tripp Lite SmartOnline Double-Conversion UPS 1500VA 200/240V SUINT1500RTXL2UA – Refurbished

Manufacturer: Tripp Lite
Model: Tripp Lite SmartOnline UPS 1500VA 1200W, RM, 2U, 200–240V
Condition: New Batteries, Refurbished UPS
Part Number: SUINT1500RTXL2UA
Maximum Output: 1200W / 1500VA
Typical Backup Time at Half Load: 12 Minutes (600 Watts)
Typical Backup Time at Full Load: 4.5 Minutes (1200 Watts)
Input: IEC 60320 C14, 200/208/220/230/240V AC
Output: (6) IEC 60320 C13
Topology: Online Double-Conversion
Output Waveform: Pure Sine Wave
Expandable Runtime: Yes, Compatible with External Battery Packs
Display: LED Status Indicators with Load and Battery Metering
Warranty: 1 Year Full Replacement Warranty

Tripp Lite SmartOnline Double-Conversion UPS 1500VA SUINT1500RTXL2UA - User's Manual

SUINT1500RTXL2UA - Tripp Lite SmartOnline 1500VA 1200W Specifications:

Main
Manufacturer	Tripp Lite
Part Number	SUINT1500RTXL2UA
Product Series	SmartOnline
Product Type	Uninterruptible Power Supply (UPS)
UPS Topology	Online Double-Conversion
Maximum Output Capacity	1500VA / 1200W
Power Factor	0.8
Nominal Input Voltage	200/220/230/240V AC
Supported Output Voltages	200/208/220/230/240V AC
Input Connection	IEC 60320 C14
Output Connections	(6) IEC 60320 C13
Output Waveform	Pure Sine Wave
Transfer Time	0 ms
Rack Height	2U
Form Factor	Rackmount / Tower
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty
Included Equipment	(1) SUINT1500RTXL2UA UPS with New Batteries
Additional Accessories	Not Included
Input
Input Phase	Single-Phase
Rated Input Current at Maximum Load	6.4A
Nominal Input Voltages	200V, 220V, 230V, 240V AC
Input Connection Type	IEC 60320 C14 Inlet
Input Connection Description	Detachable Cordset Connection
Input Circuit Breaker	10A
Input Voltage Operating Range	130–275V AC, Load Dependent
Input Voltage Range Above 70% Load	160–275V AC
Input Frequency	50/60 Hz
Output
Output Capacity	1500VA
Output Capacity (kVA)	1.5 kVA
Output Power	1200W
Output Power (kW)	1.2 kW
Power Factor	0.8
Crest Factor	3:1
Default Output Voltage	230V AC
Selectable Output Voltages	200V, 208V, 220V, 230V, 240V AC
Output Frequency	50/60 Hz
Output Voltage Regulation – Online Mode	±2%
Output Voltage Regulation – Economy Mode	±10%
Output Voltage Regulation – Battery Mode	±2%
Output Waveform – AC Mode	Sine Wave
Output Waveform – Battery Mode	Pure Sine Wave
Total Output Receptacles	6
Output Receptacle Type	IEC 60320 C13
Load Management	Two Independently Switchable Three-Outlet Load Banks
Individually Controllable Load Banks	Yes
Overload Capacity – 105%	Continuous Inverter Operation
Overload Capacity – 125%	3 Minutes
Overload Capacity – 150%	30 Seconds
Overload Capacity Above 150%	0.5 Seconds Before Bypass or Shutdown
Optional Hot-Swap Bypass PDU	PDUBHV10
Batteries & Runtime
Battery Technology	Sealed Lead-Acid
DC System Voltage	48V DC
Typical Runtime at Half Load	12 Minutes (600W)
Typical Runtime at Full Load	4.5 Minutes (1200W)
Internal Replacement Battery Cartridge	RBC94-2U
Battery Recharge Time	Less Than 6 Hours from 10% to 80%
Battery Access	Front Panel Battery Access Door
Battery Replacement	Hot-Swappable
User-Replaceable Batteries	Yes
Expandable Runtime	Yes
Compatible External Battery Pack	BP48V24-2U (Limit 1)
Compatible External Battery Pack	BP48V27-2US (Multiple Packs Supported)
Compatible External Battery Pack	BP48V60RT-3U (Multiple Packs Supported)
External Battery Configuration Software	Required for Certain Configurations
External Battery Packs Included	No
Voltage Regulation & Power Protection
Power Conditioning Technology	Online Double-Conversion
Output Voltage Regulation	±2% in Online Mode
Overvoltage Correction	Up to 275V Input
Undervoltage Correction	Down to 160V at Full Load
Severe Undervoltage Correction	Down to 130V Below 70% Load
Transfer Time to Battery	0 ms
Automatic Inverter Bypass	Yes
Economy Mode	Yes
Cold Start	Supported
User Interface, Alerts & Controls
Front Panel Display	LED Status Indicators
LCD Display	No
Status Indicators	14 LEDs
Load and Battery Metering	4-LED Meter
Rack/Tower Display Orientation	Rotatable LED Panel
Control Switches	ON/OFF and Alarm Cancel/Self-Test
Audible Alarm	UPS Startup, Power Failure, Low Battery, Overload, UPS Fault and Remote Shutdown
Alarm Silence	Yes
Battery Self-Test	Yes
Online Mode Indicator	Yes
Battery Mode Indicator	Yes
Economy/Bypass Mode Indicator	Yes
Overload Indicator	Yes
Replace Battery Indicator	Yes
Fault Indicator	Yes
Surge Protection & Filtering
Surge Suppression Rating	480 Joules
Surge Suppression Response Time	Instantaneous
EMI/RFI Noise Suppression	Yes
Telephone/DSL or Ethernet Surge Protection	Single-Line Protection
Communications & Management
USB Communication	Yes, HID Enabled
Serial Communication	DB9 RS-232
Contact Closure Communication	Yes
Emergency Power Off (EPO)	Yes
Network Management Expansion Slot	Yes
Optional Network Management Card	SNMPWEBCARD, TLNETCARD, WEBCARDLX, MODBUSCARD, RELAYIOCARD
Network Management Card Included	No
Simultaneous USB, Serial and Network Monitoring	Supported
Power Management Software	Tripp Lite PowerAlert
Automatic System Shutdown	Supported
Remote Outlet Control	Supported with Compatible Management Interface
WatchDog Compatibility	Yes
Network Monitoring	Supported with Optional Network Management Card
Physical
Color	Black
Housing Material	Steel
Cooling Method	Fan
Primary Form Factor	Rackmount
Optional Form Factor	Tower
Rack Height	2U
Unit Height	3.5 in (88.9 mm)
Unit Width	17.5 in (444.5 mm)
Unit Depth	19 in (482.6 mm)
Unit Dimensions (H × W × D)	3.5 × 17.5 × 19 in
Unit Dimensions (Metric)	8.89 × 44.45 × 48.26 cm
Unit Weight	47.5 lbs (21.55 kg)
Minimum Required Rack Depth	26 in (66.04 cm)
Four-Post Rackmount	Supported
Optional Two-Post Rackmount Kit	2POSTRMKITWM
Optional Wallmount Kit	2POSTRMKITWM
Optional Tower Stand	2-9USTAND
Shipping Height	8.60 in
Shipping Width	23.40 in
Shipping Depth	19.80 in
Shipping Dimensions (H × W × D)	8.60 × 23.40 × 19.80 in
Shipping Dimensions (Metric)	21.84 × 59.44 × 50.29 cm
Manufacturer Shipping Weight	58.60 lbs (26.58 kg)
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 122°F (-15°C to 50°C)
Relative Humidity	0–95%, Non-Condensing
AC Mode Heat Dissipation at Full Load	612 BTU/hr
Battery Mode Heat Dissipation at Full Load	721 BTU/hr
AC Mode Efficiency at Full Load	86%
Economy Mode Efficiency at Full Load	94%
Audible Noise	45 dBA at 1 Meter, Front Side
Line / Battery Transfer
Transfer Time	0 ms in Online Double-Conversion Mode
Low Voltage Transfer Point at Full Load	160V
Low Voltage Transfer Point Below 70% Load	130V
High Voltage Transfer Point	275V
Cold Start	Supported
Automatic Inverter Bypass	Yes
Condition & Warranty
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty
