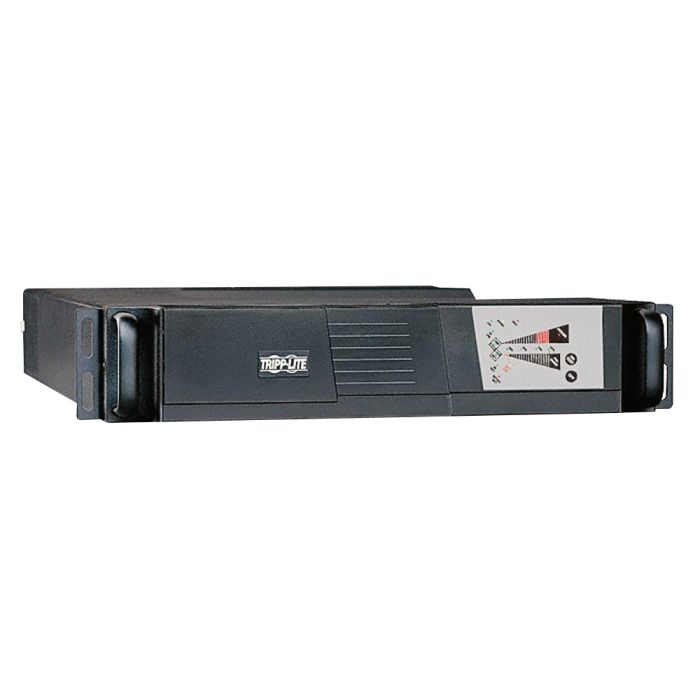

Tripp Lite SmartOnline 2200VA 1600W RM 2U 120V SU2200RT2U - Refurbished
Tripp Lite SmartOnline 2200VA 1600W RM 2U
Model: SU2200RT2U
Input: NEMA 5-20P (120V - 20A)
Output: (4) NEMA 5-15R, (2) NEMA 5-20R
Double Conversion Online UPS - Sine wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$659.99
Back Order
Manufacturer: Tripp Lite
Model: Tripp Lite SmartOnline UPS 2200VA 1600W, RM, 2U, 20A, 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: SU2200RT2U
Maximum output: 1600W / 2200VA
Typical backup time at half load: 18 minutes (800 Watts)
Typical backup time at full load: 6 minutes (1600 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite SmartOnline 2200VA 1600W RM 2U 120V SU2200RT2U Manual
SU2200RT2U - Tripp Lite SmartOnline 2200VA Specifications:
Output:
|
Output Volt Amp Capacity (VA) |
2200 |
||||
|
Output Watt Capacity (Watts) |
1600 |
||||
|
Output Voltage Regulation |
Maintains full-time sine wave output within 2% |
||||
|
Output Frequency Regulation |
Regulates line frequency to 50/60Hz +/- 0.05Hz |
||||
|
Output Receptacles |
|
Input:
|
Maximum Input Amps |
16A |
||
|
UPS Input Connection Type |
|
||
|
Recommended electrical service |
120V 20A Dedicated Circuit |
Battery:
|
Full Load Runtime (min.) |
6 min. (1600w) |
|
Half Load Runtime (min.) |
18 min. (800w) |
|
Expandable Battery Runtime |
Supports extended runtime with optional external battery pack BP72V12-2U (Unlimited) |
|
DC System Voltage (VDC) |
72 |
|
Typical Battery Lifespan |
3-6 years, Depending on Usage |
|
Battery Recharge Rate |
Less than 5 hours to 90% |
|
Replacement Battery Cartridge |
URBC-TL12076 |
Voltage Regulation:
|
Voltage Regulation Description |
On-line, double-conversion power conditioning maintains output within 2% of 100/110/120 volts at all times |
|
Overvoltage Correction |
Maintains output of selected nominal +/-2% during overvoltages to 138V AC |
|
Brownout Correction |
Maintains output of selected nominal +/-2% during undervoltages to 65V AC (at loads greater than 70% undervoltage correction extends to 80V) |
Surge / Noise Suppression:
|
AC Surge Suppression |
480 Joules |
|
AC Suppression Response Time |
Instantaneous |
|
EMI / RFI AC Noise Suppression |
Yes |
Physical:
|
Shipping Weight (lbs) |
57.3 (26 kg)
|
|
Unit Weight (lbs) |
47.4 (21.5 kg)
|
|
Unit Dimensions (HWD/in) |
3.5 x 17.5 x 19 (8.9 x 44.4 x 48.3 cm) |
|
Material of Construction |
Steel |
|
Form Factors Supported |
Rack |
|
Cooling Method |
Built-in Cooling Fan |
|
Battery Access |
User replaceable, hot swap battery replacement supported via front access panel |
Environmental:
|
Operating Temperature |
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
|
|
Storage Temperature |
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
Communications:
|
Network Monitoring Port |
Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. |
|
PowerAlert Software |
For local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert |
|
SNMP Compatibility |
Yes, includes slot for optional SNMPWEBCARD accessory (#SNMPWEBCARD) |
|
WatchDog Compatibility |
Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment—ideal for unattended kiosk applications |
