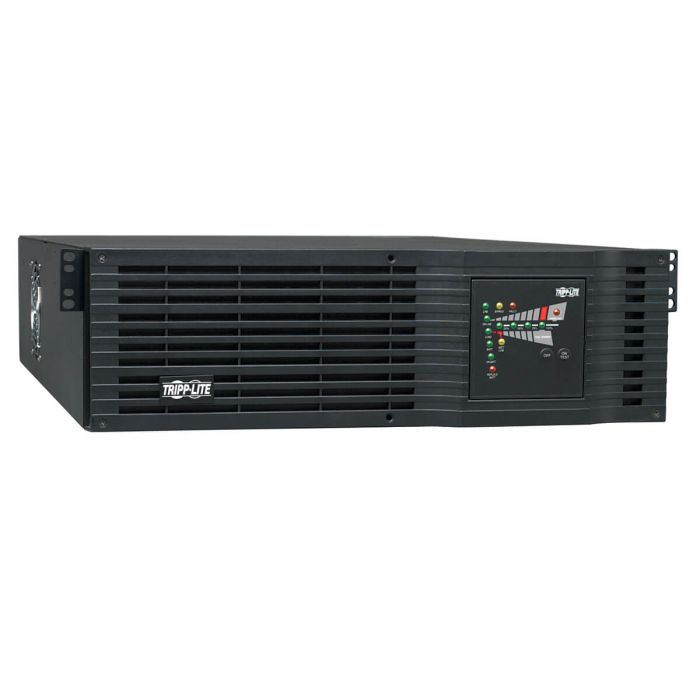

Tripp Lite SmartOnline 3000VA 2400W RM 3U 120V SU3000RTXR3UJB - Refurbished
Tripp Lite SmartOnline 3000VA 2400W RM 3U
Model: SU3000RTXR3UJB
Input: Hardwire (120V - 24A)
Output: Hardwire
Maximum Output: 3000VA / 2400W
Online Double Conversion UPS - Pure Sine Wave Output
Extended Runtime Support with Compatible External Battery Packs
Hot-Swappable, User-Replaceable Batteries
USB, DB9 Serial, Contact Closure & EPO Communications
SNMP/Web Network Management Support with Optional Network Card
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
Â
$699.99
In stock
Manufacturer: Tripp Lite
Model: Tripp Lite SmartOnline 3000VA 2400W, RM, 3U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SU3000RTXR3UJB
Maximum Output: 2400W / 3000VA
Typical Backup Time at Half Load: 30 Minutes (1200W)
Typical Backup Time at Full Load: 12 Minutes (2400W)
Topology: Online Double-Conversion
Input / Output: Hardwire, 120V (L-N-G)
Network Management: Optional SNMP/Web Network Management Card
Warranty: 1 Year Full Replacement Warranty.
Description: The Tripp Lite SU3000RTXR3UJB is a 3000VA / 2400W SmartOnline double-conversion UPS designed for servers, networking, telecommunications, and other critical equipment. It provides continuously regulated pure sine-wave 110V/120V output with zero transfer time and features hardwired input/output, hot-swappable batteries, and support for external battery packs for extended runtime. The UPS also provides USB, DB9 serial, contact closure, EPO, and an expansion slot for optional SNMP/Web network management. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.
Â
Tripp Lite SmartOnline 3000VA 2400W RM 120V SU3000RTXR3UJB - User Manual
Â
Â
SU3000RTXR3UJB - Tripp Lite SmartOnline 3000VAÂ Specifications:
| Main | Â |
| Manufacturer | Tripp Lite |
| Model | SU3000RTXR3UJB |
| Product Family | SmartOnline |
| UPS Type | Uninterruptible Power Supply (UPS) |
| UPS Topology | Online Double-Conversion |
| Form Factor | Rackmount |
| Rack Height | 3U |
| Rated Power Capacity | 3000VA / 2400W |
| Power Factor | 0.8 |
| Nominal Input Voltage | 110V / 120V AC |
| Nominal Output Voltage | 110V / 120V AC |
| Input Connection | Hardwire |
| Output Connection | Hardwire |
| Recommended Electrical Service | 30A / 120V |
| Output Waveform | Pure Sine Wave |
| Zero Transfer Time | Yes |
| Expandable Runtime | Yes |
| Condition | New Batteries, Refurbished UPS |
| Warranty | 1 Year Full Replacement Warranty |
| Â | Â |
| Input | Â |
| Rated Input Current (Maximum Load) | 24A |
| Nominal Input Voltage(s) | 110V AC / 120V AC |
| Input Connection Type | Hardwire |
| Input Configuration | Single-Phase, L-N-G |
| Recommended Electrical Service | 30A / 120V |
| Input Frequency | 50 / 60 Hz |
| Undervoltage Operation | Down to 80V at Full Load |
| Severe Undervoltage Operation | Down to 65V at Less Than 70% Load |
| Overvoltage Operation | Up to 150V |
| Â | Â |
| Output | Â |
| Output Capacity | 3000VA / 3kVA |
| Output Watt Capacity | 2400W / 2.4kW |
| Power Factor | 0.8 |
| Crest Factor | 3:1 |
| Default Output Voltage | 120V |
| Supported Output Voltages | 110V / 120V |
| Output Connection | Hardwire |
| Output Frequency | 50 / 60 Hz |
| Cold-Start Output Frequency | Defaults to 60 Hz |
| Output Voltage Regulation – Line Mode | ±2% |
| Output Voltage Regulation – Economy Mode | ±10% |
| Output Voltage Regulation – Battery Mode | ±2% |
| AC Mode Waveform | Sine Wave |
| Battery Mode Waveform | Pure Sine Wave |
| Transfer Time | 0 ms |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Type | Sealed Lead-Acid |
| DC System Voltage | 72V DC |
| Typical Runtime @ Half Load | 30 Minutes (1200W) |
| Typical Runtime @ Full Load | 12 Minutes (2400W) |
| Expandable Runtime | Yes |
| External Battery Pack Support | Yes |
| Compatible External Battery Pack | BP72V15-2U – Limit (1) |
| Compatible External Battery Pack | BP72V28RT-3U – Multi-Pack Compatible |
| Internal Replacement Battery Cartridge | RBC96-3U |
| RBC96-3U Quantity | (2) |
| Battery Access | Front Panel Battery Access Door |
| Battery Replacement | Hot-Swappable / User Replaceable |
| Recharge Time | Less Than 6 Hours from 10% to 80% |
| Â | Â |
| Voltage Regulation | Â |
| Voltage Regulation Technology | Online Double-Conversion |
| Output Voltage Regulation | ±2% |
| Overvoltage Correction | Regulates Input Voltages Up to 150V |
| Undervoltage Correction | Regulates Input Voltages Down to 80V |
| Severe Undervoltage Correction | Down to 65V at Less Than 70% Load |
| Automatic Voltage Conditioning | Continuous |
| Â | Â |
| Communications & Management | Â |
| USB Communication | Yes |
| USB HID | Supported |
| Serial Communication | Yes |
| Serial Interface | DB9 |
| Contact Closure | Supported |
| Emergency Power Off (EPO) | Yes |
| SNMP/Web Expansion Slot | Yes |
| Network Management Card | Optional – Not Included |
| Remote Network Monitoring | Supported with Optional Compatible Network Card |
| SNMP / Web Management | Supported with Optional Compatible Network Card |
| PowerAlert Software Compatibility | Supported |
| WatchDog Compatibility | Supported |
| Automatic OS Shutdown | Supported with Compatible Software / Communication Connection |
| UPS Status Monitoring | Supported |
| Load Monitoring | Supported |
| Battery Monitoring | Supported |
| Â | Â |
| User Interface, Alerts & Controls | Â |
| Front Panel Interface | LED Status and Metering Panel |
| LED Indicators | 14 LEDs |
| Load / Battery Meter | 4-LED Meter |
| Rack / Tower Viewing | Rotatable LED Panel |
| Power On / Off Controls | Yes |
| Self-Test Control | Yes |
| Alarm Cancel | Yes |
| Audible Alarm | Yes |
| Power Failure Alarm | Yes |
| Low Battery Alarm | Yes |
| Overload Alarm | Yes |
| UPS Fault Alarm | Yes |
| Remote Shutdown Alarm | Yes |
| Â | Â |
| Surge / Noise Suppression | Â |
| AC Surge Suppression Rating | 480 Joules |
| Surge Response Time | Instantaneous |
| EMI / RFI Noise Suppression | Yes |
| TEL / DSL Protection | 1-Line TEL/DSL, 1 In / 1 Out |
| Network Dataline Protection | 10/100Base-T Ethernet |
| Â | Â |
| Physical | Â |
| Primary Form Factor | Rackmount |
| Rack Height | 3U |
| Cooling Method | Fan |
| Housing Material | Steel |
| 4-Post 19-inch Rackmount | Supported |
| 2-Post Rackmount | Optional 2POSTRMKITHD |
| Tower Installation | Optional 2-9USTAND |
| Wall Mount Installation | Not Recommended |
| Height | 5.2 in (13.2 cm) |
| Width | 17.8 in (45.2 cm) |
| Depth | 29.5 in (74.9 cm) |
| Net Weight | 111.3 lb (50.5 kg) |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | 5–122°F (-15–50°C) |
| Relative Humidity | 0–95%, Non-Condensing |
| AC Mode Heat Dissipation @ Full Load | 1112.7 BTU/hr |
| Economy Mode Heat Dissipation @ Full Load | 520.9 BTU/hr |
| Battery Mode Heat Dissipation @ Full Load | 1219.3 BTU/hr |
| AC Mode Efficiency @ 100% Load | 88% |
| Economy Mode Efficiency @ 100% Load | 94% |
| Â | Â |
| High Availability & UPS Features | Â |
| Online Double-Conversion | Yes |
| Zero Transfer Time | Yes |
| Cold Start | Supported |
| Automatic Inverter Bypass | Yes |
| Economy Mode | Supported |
| Hot-Swappable Batteries | Yes |
| User-Replaceable Batteries | Yes |
| Extended Runtime | Supported |
| External Battery Packs | Supported |
