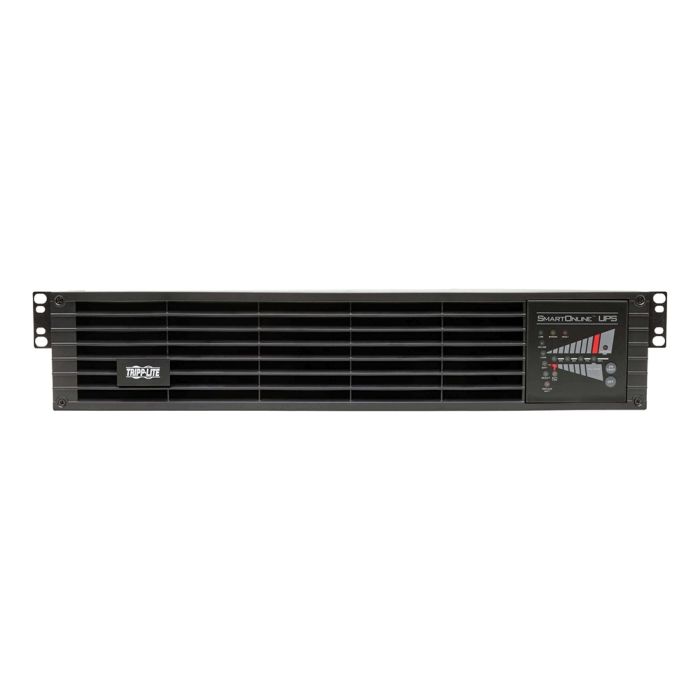

Tripp Lite SmartOnline 3000VA 2500W RM 2U 230V SUINT3000RTXL2U - Refurbished

Rated input current (Maximum Load)

15A

Nominal Input Voltage(s) Supported

230V AC

Nominal Input Voltage Description

230V Factory Configuration

UPS Input Connection Type

UPS Input Cord Length (ft.)

5

UPS Input Cord Length (m)

1.5

Input Phase

Single-Phase

Output Capacity (VA)

3000

Output Capacity (kVA)

3

Output Capacity (Watts)

2500

Output Capacity (kW)

2.5

Output Capacity Details

OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits of ±10% and ±5Hz) or SHUTDOWN (when bypass input voltage and frequency are OUTSIDE bypass limits of ±10% and ±5Hz)

Power Factor

0.83

Crest Factor

3:1

Nominal Voltage Details

230V default

Frequency Compatibility

50 / 60 Hz

Frequency Compatibility Details

Output frequency matches input nominal on startup, defaults to 50 Hz on cold-start

Output Voltage Regulation (Line Mode)

+/- 2%

Output Voltage Regulation (Economy Line Mode)

+/- 10%

Output Voltage Regulation (Battery Mode)

+/- 2%

Included Output Power Cables

Not included

Load Management Receptacles

Two switchable 4 C13 outlet load banks

Hot-Swap PDU options

PDUBHV20 (2U / 6 C13, 2 C19 outlets) - Not included

Output AC Waveform (AC Mode)

Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

230V

Output Receptacles

Individually Controllable Load Banks

Yes

Battery Type

Valve Regulated Lead Acid (VRLA)

Runtime Full Load (min.)

6

Runtime Half Load (min.)

15

Expandable Battery Runtime

Supports extended runtime with optional external battery packs

Expandable Runtime

Yes

External Battery Pack Compatibility

BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18-2US (multi-pack compatible)

DC System Voltage (VDC)

72

Battery Recharge Rate (Included Batteries)

Less than 4.8 hours from 10% to 90% (typical, full load discharge)

Battery Access

Front panel battery access door

Internal UPS Replacement Battery Cartridge

See RBC Selector

Battery Replacement Description

Hot-swappable, replaceable batteries

Voltage Regulation Description

Online, double-conversion power conditioning

Overvoltage Correction

2% output voltage regulation during overvoltages to 288

Undervoltage Correction

2% output voltage regulation during undervoltages to 160V (70-100% load) / 130V (30-70% load) / 100V (Under 30% load)

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation

Alarm Cancel Operation

Power-fail alarm can be silenced using alarm-cancel switch

Audible Alarm

Audible alarm indicates power failure, low battery, overload, replace battery and EPO operation

LED Indicators

14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats

UPS AC Suppression Joule Rating

570

EMI / RFI AC Noise Suppression

Yes

AC Suppression Response Time

Instantaneous

Primary Form Factor

Rack Height

Cooling Method

Included Mounting Accessory Description

Installation Form Factors Supported with Included Accessories

Installation Form Factors Supported with Optional Accessories

Minimum Required Rack Depth (cm)

Minimum Required Rack Depth with External Battery Pack (cm)

Minimum Required Rack Depth with External Battery Pack (in.)

Minimum Required Rack Depth without External Battery Pack (cm)

Minimum Required Rack Depth without External Battery Pack (in.)

Optional Mounting Accessory Notes

Primary UPS Depth (mm)

616

Primary UPS Height (mm)

88

Primary UPS Width (mm)

438

UPS Power Module Dimensions (hwd, cm)

8.79 x 43.79 x 61.60

UPS Power Module Weight (kg)

31.17

UPS Housing Material

Steel

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.

Relative Humidity

5 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

742

AC Mode Efficiency Rating (100% Load)

92%

Network Management Cards

WEBCARDLX - Not included

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert

Communications Cable

USB and DB9 cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Management Card Description

Network management card optional

Communications Interface

Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
