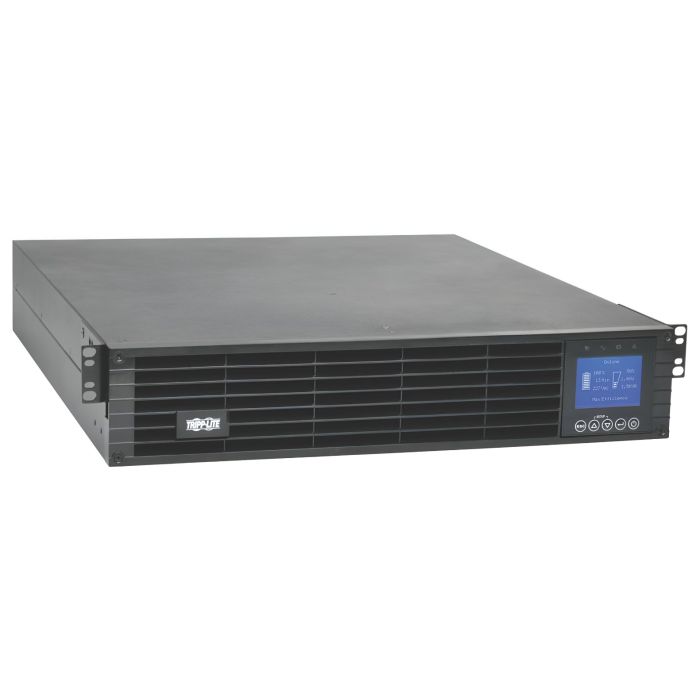

Tripp Lite SmartOnline 3000VA 2700W RM 2U 240V SUINT3000LCD2U - Refurbished
Tripp Lite SmartOnline 3000VA 2700W RM 2U 208V/230V
Model: SUINT3000LCD2U
Input: C20 Inlet (200–240V AC, 14.97A max)
Output: (8) IEC C13, (2) IEC C19
Online Double Conversion UPS - Pure Sine Wave Output
Refurbished UPS with New Batteries
1-Year Warranty Included
$999.99
In stock
Manufacturer: Tripp Lite
Model: Tripp Lite Smart Online 3000VA 2700W, RM, 2U, 208V/ 230V
Condition: New Batteries, Refurbished UPS
Part Number: SUINT3000LCD2U
Maximum output: 2700W / 3000VA
Typical backup time at half load: 15 minutes (1350 Watts)
Typical backup time at full load: 5 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite SmartOnline 3000VA 2700W RM 230V SUINT3000LCD2U Manual
SUINT3000LCD2U - Tripp Lite SmartOnline 3000VA Specifications:
Input:
|
Rated input current (Maximum Load) |
14.97A |
||
|
Nominal Input Voltage(s) Supported |
200V / 208V / 220V / 230V / 240V AC |
||
|
Nominal Input Voltage Description |
User-configurable on first startup (default: 230V) |
||
|
UPS Input Connection Type |
|
||
|
UPS Input Cord Length (ft.) |
5 |
||
|
UPS Input Cord Length (m) |
1.5 |
||
|
Input Phase |
Single-Phase |
Output:
|
Output Capacity (VA) |
3000 |
||
|
Output Capacity (kVA) |
3 kva |
||
|
Output Capacity (Watts) |
2700 w |
||
|
Output Capacity (kW) |
2.7 kw |
||
|
Output Capacity Details |
De-rated to 2160W at 200V output; 1890W during frequency conversion mode |
||
|
Power Factor |
0.9 |
||
|
Crest Factor |
3:1 |
||
|
Nominal Voltage Details |
User-configurable on first startup (default: 230V) |
||
|
Frequency Compatibility |
50 / 60 Hz |
||
|
Frequency Compatibility Details |
Output frequency matches input nominal on startup; supports 50↔60 Hz conversion (30% de-rate) |
||
|
Output Voltage Regulation (Line Mode) |
+/- 2% |
||
|
Output Voltage Regulation (Economy Line Mode) |
+/- 10% |
||
|
Output Voltage Regulation (Battery Mode) |
+/- 2% |
||
|
Load Management Receptacles |
2 switchable load banks (3 C13 + 1 C19 each) |
||
|
Hot-Swap PDU options |
PDUBHV20 (2U / 6 C13, 2 C19 outlets – not included) |
||
|
Output AC Waveform (AC Mode) |
Pure Sine wave |
||
|
Output AC Waveform (Battery Mode) |
Pure Sine wave |
||
|
Nominal Output Voltage(s) Supported |
200V, 208V, 220V, 230V, 240V |
||
|
Output Receptacles |
|
||
|
Individually Controllable Load Banks |
Yes |
Battery:
|
Battery Type |
Valve Regulated Lead Acid (VRLA) |
|
Runtime Full Load (min.) |
5 minutes @ 2700W |
|
Runtime Half Load (min.) |
13.5 minutes @ 1350W |
|
Expandable Battery Runtime |
Supports extended runtime with optional external battery packs |
|
Expandable Runtime |
Yes |
|
External Battery Pack Compatibility |
BP72V15-2U (limit 1), BP72V28RT-3U, BP72V18-2US (multi-pack compatible) |
|
DC System Voltage (VDC) |
72 |
|
Battery Recharge Rate (Included Batteries) |
3.0 hours (from 10% to 90%, full load typical) |
|
Battery Access |
Front panel battery access door |
|
Internal UPS Replacement Battery Cartridge |
RBC72S (hot-swappable) |
|
Battery Replacement Description |
Hot-swappable, replaceable batteries |
Voltage Regulation:
|
Voltage Regulation Description |
Online, double-conversion power conditioning |
|
Overvoltage Correction |
±2% output voltage regulation during overvoltages to 288 |
|
Undervoltage Correction |
±2% voltage regulation during undervoltages down to: |
User Interface, Alerts & Controls:
|
Switches |
5 front-panel buttons: On, Off, Up, Down, Escape |
|
Alarm Cancel Operation |
Alarm silenced via LCD interface options |
|
Audible Alarm |
Power failure, low battery, overload, fault |
|
LED Indicators |
4 LEDs: Input (green), Output (green), Battery (yellow), Fault (red); |
Surge / Noise Suppression:
|
UPS AC Suppression Joule Rating |
570 |
|
EMI / RFI AC Noise Suppression |
Yes |
|
AC Suppression Response Time |
Instantaneous |
Physical:
|
Primary Form Factor |
Rackmount
|
|
Rack Height |
2U
|
|
Cooling Method |
Fan
|
|
Included Mounting Accessory Description |
Not Included
|
|
Installation Form Factors Supported with Included Accessories |
4 post 19 inch rackmount
|
|
Installation Form Factors Supported with Optional Accessories |
2 POSTRMKITWM, UPSHDEARKIT, 2-9USTAND (tower), wall-mount kit – all sold separately
|
|
Min. Rack Depth (no battery pack) |
70 cm / 27.75 in
|
|
Min. Rack Depth (with battery pack) |
77 cm / 30.25 in
|
|
UPS Dimensions (H x W x D mm) |
88 x 438 x 616 mm
|
|
UPS Dimensions (H x W x D cm) |
8.79 x 43.79 x 61.60 cm
|
|
UPS Weight |
31.17 kg
|
|
Housing Material |
Metal
|
Environmental:
|
Operating Temperature Range |
0 to 40 °C / 32 to 104 °F
|
|
Storage Temperature Range |
-15 to 50 °C / 5 to 122 °F |
|
Relative Humidity |
5 to 95%, non-condensing |
|
AC Mode BTU / Hr. (Full Load) |
933 |
|
AC Mode Efficiency Rating (100% Load) |
>90% |
Communications:
|
Network Management Cards |
 Optional: WEBCARDLX (HTML5, SNMP, SSH, Telnet support) |
|
Network Monitoring Port Description |
USB (HID), DB9 serial, Contact closure, EPO, Slot for SNMP/Web card |
|
PowerAlert Software |
For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert |
|
Communications Cable |
USB and DB9 cabling included |
|
WatchDog Compatibility |
Yes – supports OS and hard reboot for remote systems |
|
Network Management Card Description |
Network management card optional |
