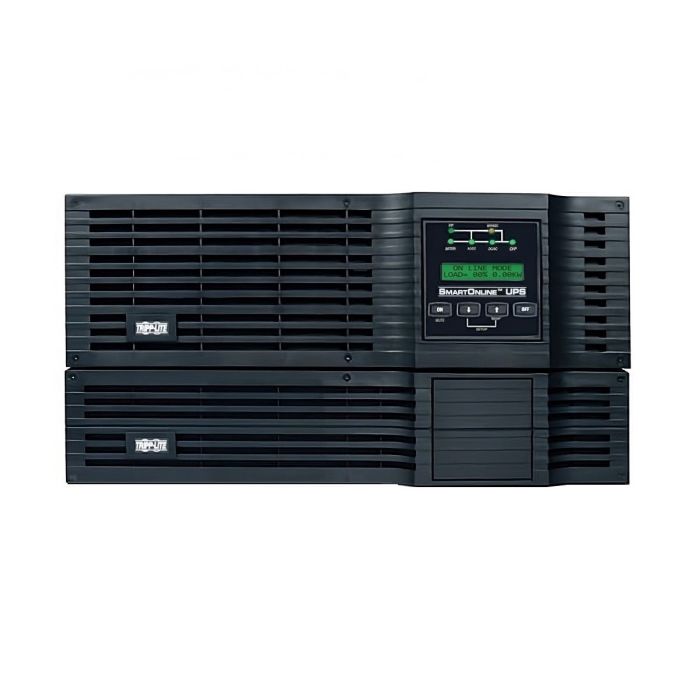

Tripp Lite SmartOnline 5000VA 3500W RM 5U 208/240V SU5000RT3UHV - Refurbished

Rated input current (Maximum Load)

24A (208V), 21A (240V)

Nominal Input Voltage(s) Supported

200V AC; 208V AC; 220V AC; 230V AC; 240V AC

UPS Input Connection Type

UPS Input Cord Length (ft.)

10

UPS Input Cord Length (m)

3.1

Recommended Electrical Service

30A 208/240V

Input Phase

Single-Phase

Output Volt Amp Capacity (VA)

5000

Output kVA Capacity (kVA)

5

Output Watt Capacity (Watts)

3500

Output kW Capacity (kW)

3.5

Power Factor

0.7

Crest Factor

3:1

Nominal Voltage Details

Voltage selection via front panel LCD interface

Frequency Compatibility

50 / 60 Hz

Frequency Compatibility Details

Output frequency matches input nominal on startup

Output Voltage Regulation (Line Mode)

+/- 2%

Output Voltage Regulation (Economy Line Mode)

+/- 10%

Output Voltage Regulation (Battery Mode)

+/- 2%

Output Circuit Breakers

20A double-pole breaker protects L6-20R outlets, L6-30R outlets are unbreakered

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Output Capacity Details

Supports up to 102% load continuously in double conversion mode, 102 to 125% for 1 minute, 126% to 150% for 30
seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power;
Double conversion mode is automatically restored as the overload is cleared

Nominal Output Voltage(s) Supported

200V; 208V; 220V; 240V

Output Receptacles

Individually Controllable Load Banks

No

Full Load Runtime (min.)

8 min. (3500w)

Half Load Runtime (min.)

20 min. (1750w)

Expandable Battery Runtime

Supports extended runtime with optional external battery packs

External Battery Pack Compatibility

BP240V5RT2U ; BP240V557C-1PH;  BP240V787C-1PH ; BP240V1037C1PH; BP240V1407C-1PH; BP240V10RT3U

DC System Voltage (VDC)

240

Battery Recharge Rate (Included Batteries)

Less than 6 hours from 10% to 80% (typical, full load discharge)

Battery Replacement Description

Hot-swappable, user replaceable batteries

Expandable Runtime

Yes

Voltage Regulation Description

Online, double-conversion power conditioning

Overvoltage Correction

2% output voltage regulation during overvoltages to 276

Undervoltage Correction

2% output voltage regulation during undervoltages to 156

Front Panel LCD Display

Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;
LED/LCD panel rotates for viewing in rack/tower formats (see manual)

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions

Alarm Cancel Operation

Alarm cancel switch

Audible Alarm

Unique audible alarms for all major UPS, environmental and power conditions (see manual)

LED Indicators

6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD
screen offers additional information and control options

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Cooling Method

Included Battery Pack Dimensions
(hwd / in.)

Included Battery Pack Weight (kg)

Included Battery Pack Weight (lbs.)

Included Mounting Accessory Description

2 sets of adjustable 4 post rack rails included

Installation Form Factors Supported with Optional Accessories

2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )

Maximum Device Depth (cm)

66.04

Maximum Device Depth (in.)

26

Maximum Device Depth (mm)

660

Minimum Required Rack Depth (cm)

83.82

Minimum Required Rack Depth
(inches)

33

Optional Mounting Accessory Notes

2 sets of  2POSTRMKITWM  required for 2 post rackmount installation of separate power module and battery pack

Primary Form Factor

Rackmount

Primary UPS Depth (mm)

660

Primary UPS Height (mm)

132

Primary UPS Width (mm)

445

Rack Height

5U

Shipping Dimensions (hwd / cm)

55.88 x 68.58 x 85.09

Shipping Dimensions (hwd / in.)

22.00 x 27.00 x 33.50

Shipping Weight (kg)

110.22

Shipping Weight (lbs.)

243.00

Unit Dimension Details

Includes 3U UPS/power module and 2U battery pack

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, cm)

13.21 x 44.45 x 66.04

UPS Power Module Dimensions (hwd, in.)

5.2 x 17.5 x 26

UPS Power Module Weight (kg)

19.05

UPS Power Module Weight (lbs.)

42

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

1327

Battery Mode BTU / Hr. (Full Load)

1327

AC Mode Efficiency Rating (100% Load)

90%

AC Economy Mode Efficiency Rating (100% Load)

94%

Network Management Cards

 SNMPWEBCARD ;  TLNETCARD ;  WEBCARDLX ;  MODBUSCARD ;  RELAYIOCARD

Network Monitoring Port Description

RS232 and contact closure communications are located on two separate DB9 ports

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
http://www.tripplite.com/poweralert

Communications Cable

DB9 cable included

Communications Interface

DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
