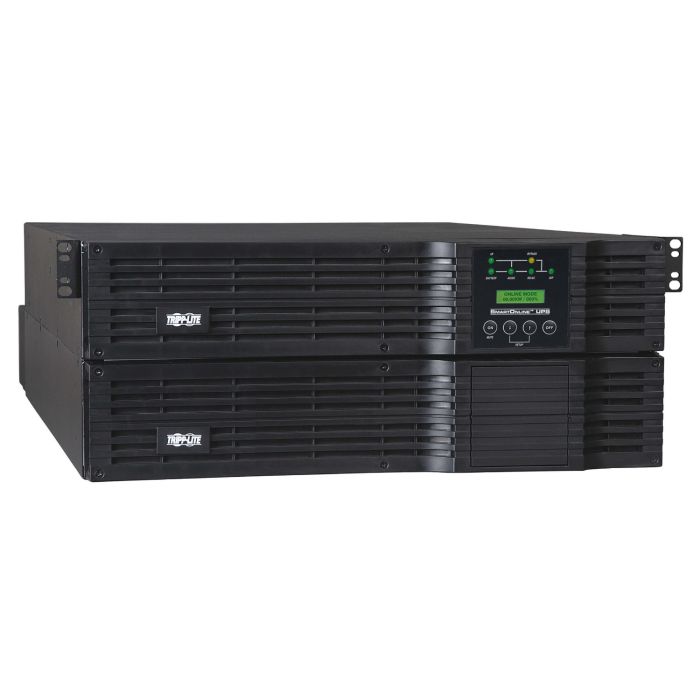

Tripp Lite SmartOnline 6kVA 4200W RM 4U 208/240V & 120V Splitphase SU6000RT4U - Refurbished

Manufacturer: Tripp Lite
Model: Tripp Lite SmartOnline UPS 6000VA 4200W, RM, 4U, 30A, 120V / 208V / 240V Split-Phase, New Batteries, Refurbished UPS
Condition: New Batteries, Refurbished UPS
Part Number: SU6000RT4U
Maximum Output: 4200W / 6000VA
Topology: Online Double-Conversion
Waveform: Pure Sine Wave
Typical Backup Time at Half Load: 20 Minutes (2100 Watts)
Typical Backup Time at Full Load: 8 Minutes (4200 Watts)
Warranty: 1 Year Full Replacement Warranty Included

Description: The Tripp Lite SU6000RT4U is a SmartOnline double-conversion UPS designed to provide continuous 4200W / 6000VA power protection for servers, networking equipment, telecommunications systems, and other mission-critical applications. It delivers pure sine wave output with zero transfer time, features a hot-swappable UPS power module, integrated maintenance bypass, and supports both 120V and 208/240V split-phase output. Equipped with a NEMA L14-30P input, (8) NEMA 5-15/20R, (2) NEMA L6-20R, and (2) NEMA L6-30R output receptacles, it also supports optional external battery packs for extended runtime. This refurbished UPS includes new batteries and is backed by a 1-Year Full Replacement Warranty.

Tripp Lite SmartOnline 6000VA 4200W RM 120/240V SU6000RT4U - User Manual

SU6000RT4U - Tripp Lite SmartOnline 6000VA Specifications:

Key Features
UPS Topology	Online Double-Conversion
Form Factor	Rackmount / Tower Convertible
Rack Height	4U
Rated Power Capacity	6000VA / 4200W
Output Power Factor	0.7
Waveform Type	Pure Sine Wave
Input Voltage	120/208V or 120/240V Split-Phase
Output Voltage	120V / 208V / 240V
Input Connection	NEMA L14-30P
Output Connections	(8) NEMA 5-15/20R, (2) NEMA L6-20R, (2) NEMA L6-30R
Input Cord Length	10 ft (3.1 m)
Efficiency	Up to 94% (Economy Mode)
Hot-Swappable UPS Module	Yes
Maintenance Bypass Switch	Included
Hot-Swappable Batteries	Yes
Extended Runtime Support	Yes
External Battery Pack Compatibility	BP192V12-3U, BP192V5RT2U, BP192V787C-1PH
Cold Start Capability	Yes
LCD Display	Rotating LCD with LED Status Indicators
Application	Mission-critical servers, storage, networking and telecommunications equipment
Output
Nominal Output Voltage	120V / 208V / 240V Split-Phase
Output Receptacles	(8) NEMA 5-15/20R
	(2) NEMA L6-20R
	(2) NEMA L6-30R
Maximum Output Power	4200W
Maximum Output Capacity	6000VA
Output Frequency	60 Hz
Output Voltage Regulation (Battery Mode)	±3%
Output Voltage Regulation (Economy Mode)	±10%
Output Voltage Regulation (Online)	±3%
Waveform Output	Pure Sine Wave
Crest Factor	3:1
Transfer Time	0 ms
Output Circuit Breakers	(4) 20A Single-Pole, (2) 20A Double-Pole
Load Banks	No
Frequency Conversion	Supports 50Hz ↔ 60Hz conversion (70% capacity during conversion)
Output Capacity Details	6000VA / 4200W @240V, 5400VA / 4200W @208V
Overload Capability	105% Continuous, 125% for 3 min, 150% for 30 sec
Input
Input Voltage	120/208V or 120/240V Split-Phase
Input Voltage Range	65V–140V (L1-N / L2-N)
Nominal Input Voltage	208/120V or 240/120V
Input Connection	NEMA L14-30P
Input Frequency	60 Hz
Input Phase	Single-Phase Split-Phase
Maximum Input Current	24A
Recommended Electrical Service	30A Split-Phase
Input Cord Length	10 ft (3.1 m)
Battery & Runtime
Battery Type	Valve Regulated Lead-Acid (VRLA)
Battery Replacement	Hot-Swappable, User Replaceable
Replacement Battery	RBC9-192
Typical Runtime Half Load	20 Minutes (2100W)
Typical Runtime Full Load	8 Minutes (4200W)
Recharge Time	Less than 6 Hours (10% to 80%)
DC Bus Voltage	192 VDC
Expandable Runtime	Yes
External Battery Support	Up to Multiple Compatible Battery Packs
External Battery Packs	BP192V12-3U, BP192V5RT2U (1 Max), BP192V787C-1PH
Battery Access	Front Panel
Communications & Management
User Interface	Rotating LCD with LED Indicators
Communication Ports	USB, DB9 Serial, EPO
Expansion Slot	Supports SNMPWEBCARD, WEBCARDLX, TLNETCARD, MODBUSCARD
Remote Monitoring	Supported with Optional Network Card
PowerAlert Software	Supported
Network Management	Optional
Event Logging	Supported
Audible Alarms	Configurable Audible Alarms
Manual Maintenance Bypass	Included
UPS Diagnostics	LCD Monitoring and Self-Test
Front Panel Controls	ON/OFF, LCD Navigation, Alarm Cancel
Manual Bypass	Integrated Maintenance Bypass Switch
Interfaces	USB (HID), RS-232, Contact Closure, EPO, SNMP/Web
Physical
Height	6.89 in (175 mm)
Width	17.50 in (445 mm)
Depth	30.80 in (782 mm)
Net Weight	149.6 lbs (67.86 kg)
Rack Height	4U
Mounting	Rackmount / Tower Convertible
Rack Rails	Included
Housing Material	Steel
Cooling	Forced Air Fan
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 122°F (-15°C to 50°C)
Relative Humidity	0-95% Non-Condensing
Operating Altitude	Up to 10,000 ft (3,000 m)
Audible Noise	60 dBA
Heat Dissipation (Online)	1593 BTU/hr
Heat Dissipation (Battery)	1419 BTU/hr
Conformance
Certifications	UL Listed, CSA
EMI/RFI Filtering	Yes
Surge Suppression	1810 Joules
Warranty	1 Year Full Replacement Warranty (Refurbished)
Condition	New Batteries, Refurbished UPS
