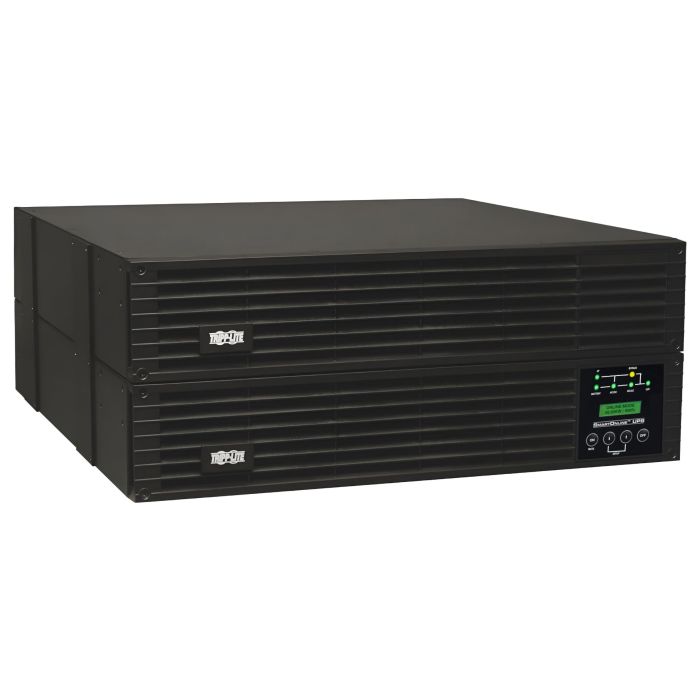

Tripp Lite SmartOnline 6000VA 5400W Power Module RM 4U 208V/240V SU6000RT4UHVPM - Refurbished

Input Phase

Single-Phase

Rated input current (Maximum Load)

31.9A (200V), 30.6A (208V), 29A (220V), 27.7A (230V), 26.6A (240V)

Nominal Input Voltage(s) Supported

200V AC; 208V AC; 240V AC

Nominal Input Voltage Description

Factory configured to 208V

Input Connection Type

UPS Input Cord Length (ft.)

10

UPS Input Cord Length (m)

3.1

Recommended Electrical Service

30A

Output Capacity (VA)

6000

Output Capacity (kVA)

6

Output Capacity (Watts)

5400

Output Capacity (kW)

5.4

Output Capacity Details

Output capacity de-rates to 4992 watts when used at 208V nominal; Supports up to 105% load continuously in
double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger
immediate bypass mode operation to support loads directly from mains power; Double conversion mode is
automatically restored as the overload is cleared

Power Factor

0.9

Crest Factor

3:1

Nominal Voltage Details

Voltage selection via front panel LCD interface

Frequency Compatibility

50 / 60 Hz

Frequency Compatibility Details

Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

Output Voltage Regulation (Line Mode)

+/- 2%

Output Voltage Regulation (Economy Line Mode)

+/- 10%

Output Voltage Regulation (Battery Mode)

+/- 2%

Output Receptacle Details

Output receptacles and input line cord are mounted on a detachable PDU backplate with bypass switch to enable hot-swappable power module replacement

Output Circuit Breakers

20A breaker protects L6-20R outlets, L6-30R outlets are unbreakered

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

200V; 208V; 240V

Output Receptacles

Individually Controllable Load Banks

No

Battery Type

Valve Regulated Lead Acid (VRLA)

Runtime Full Load (min.)

2 min. (5400W)

Runtime Half Load (min.)

8.5 min. (2700W)

Expandable Runtime

Yes

External Battery Pack Compatibility

BP192V12-3U; BP192V5RT2U  (limit 1); BP192V787C-1PH

DC System Voltage (VDC)

192

Battery Recharge Rate (Included
Batteries)

6 hours from 10% to 90% (typical, full load discharge)

Battery Access

Front panel battery access door

Internal UPS Replacement Battery
Cartridge

RBC5-192

Battery Replacement Description

Hot-swappable, user replaceable internal batteries

Voltage Regulation Description

Overvoltage Correction

Undervoltage Correction

Corrects undervoltages as low as 100 (<50% load) and 155V (full load); derates linearly

Front Panel LCD Display

Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;
LED/LCD panel rotates for viewing in rack/tower formats (see manual)

Switches

Includes main power off/on switch, plus 2 switches to set and execute scrollable LCD functions. A manual bypass switch featured on the detachable PDU allows for complete removal of the UPS during routine maintenance without disrupting power to connected loads.

Alarm Cancel Operation

Alarm cancel switch

Audible Alarm

Unique audible alarms for all major UPS, environmental and power conditions (see manual)

LED Indicators

6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options

UPS AC Suppression Joule Rating

2595

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Primary Form Factor

Rackmount

Rack Height

4U

Cooling Method

Fans

Included Mounting Accessory
Description

Includes 4 post rackmount installation accessories

Installation Form Factors Supported
with Included Accessories

4 post 19 inch rackmount

Installation Form Factors Supported
with Optional Accessories

2 post rackmount (2POSTRMKITHD); Tower ( 2-9USTAND

Maximum Device Depth (cm)

52.58

Maximum Device Depth (in.)

20.7

Maximum Device Depth (mm)

526

Minimum Required Rack Depth (cm)

60.96

Minimum Required Rack Depth
(inches)

24

Minimum Required Rack Depth with
External Battery Pack (cm)

74

Minimum Required Rack Depth with
External Battery Pack (in.)

29

Minimum Required Rack Depth
without External Battery Pack (cm)

65

Minimum Required Rack Depth
without External Battery Pack (in.)

25.75

Primary UPS Depth (mm)

525

Primary UPS Height (mm)

174

Primary UPS Width (mm)

445

Shipping Dimensions (hwd / in.)

30.00 x 36.00 x 24.00

Shipping Dimensions (hwd / cm)

76.20 x 91.44 x 60.96

Shipping Weight (lbs.)

190.00

Shipping Weight (kg)

86.18

UPS Housing Material

Steel

UPS Power Module Dimensions
(hwd, cm)

17.40 x 44.45 x 52.50

UPS Power Module Dimensions
(hwd, in.)

6.85 x 17.5 x 20.67

UPS Power Module Weight (kg)

48.99

UPS Power Module Weight (lbs.)

108

Unit Dimensions (hwd / in.)

6.850 x 17.500 x 20.670

Unit Weight (lbs.)

116.200

Unit Weight (kg)

52.71

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

5° to 122°F (-15° to 50°C)

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

1767

AC Economy Mode BTU / Hr. (Full
Load)

768

Battery Mode BTU / Hr. (Full Load)

2279

AC Mode Efficiency Rating (100%
Load)

90%

AC Economy Mode Efficiency Rating
(100% Load)

96%

Operating Elevation (ft.)

Up to 6500 ft.

Audible Noise

60 dBA at front side 1 meter

Operating Elevation (m)

0-2000m

Network Management Cards

SNMPWEBCARD; TLNETCARD; WEBCARDLX; MODBUSCARD; RELAYIOCARD

Network Monitoring Port Description

Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert software at
https://tripplite.eaton.com/products/power-alert

Communications Cable

USB, DB9 serial and EPO cables included

WatchDog Compatibility

Yes

Network Management Card
Description

Network management card Optional

Communications Interface

DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

Transfer Time

No transfer time (0 ms.) in online, double-conversion mode

Transfer Time (Economy Mode)

8 ms. typical power failure response in optional economy mode

Low Voltage Transfer to Battery
Power (Setpoint)

156V (full load) / 100V (50% load or less, derates linearly)

High Voltage Transfer to Battery
Power (Setpoint)

280V (full load) / 300V (90% load or less)

Cold Start (Startup in Battery Mode
During a Power Failure)

Cold-start operation supported

High Availability UPS Features

Auto Probe Monitoring (requires WEBCARDLX); Automatic inverter bypass; Hot swappable batteries; Hot swappable UPS power module; Manual bypass switch; Remote management; Surge/noise protection; Zero transfer
time

Green Energy-Saving Features

High efficiency economy mode operation; Support for daily startup and shutoff; Schedulable daily hours of economy mode operation

Product Certifications

IEC 61000; CSA (Canada); UL 1778

Product Compliance

RoHS; FCC Part 15 Class A (USA)
